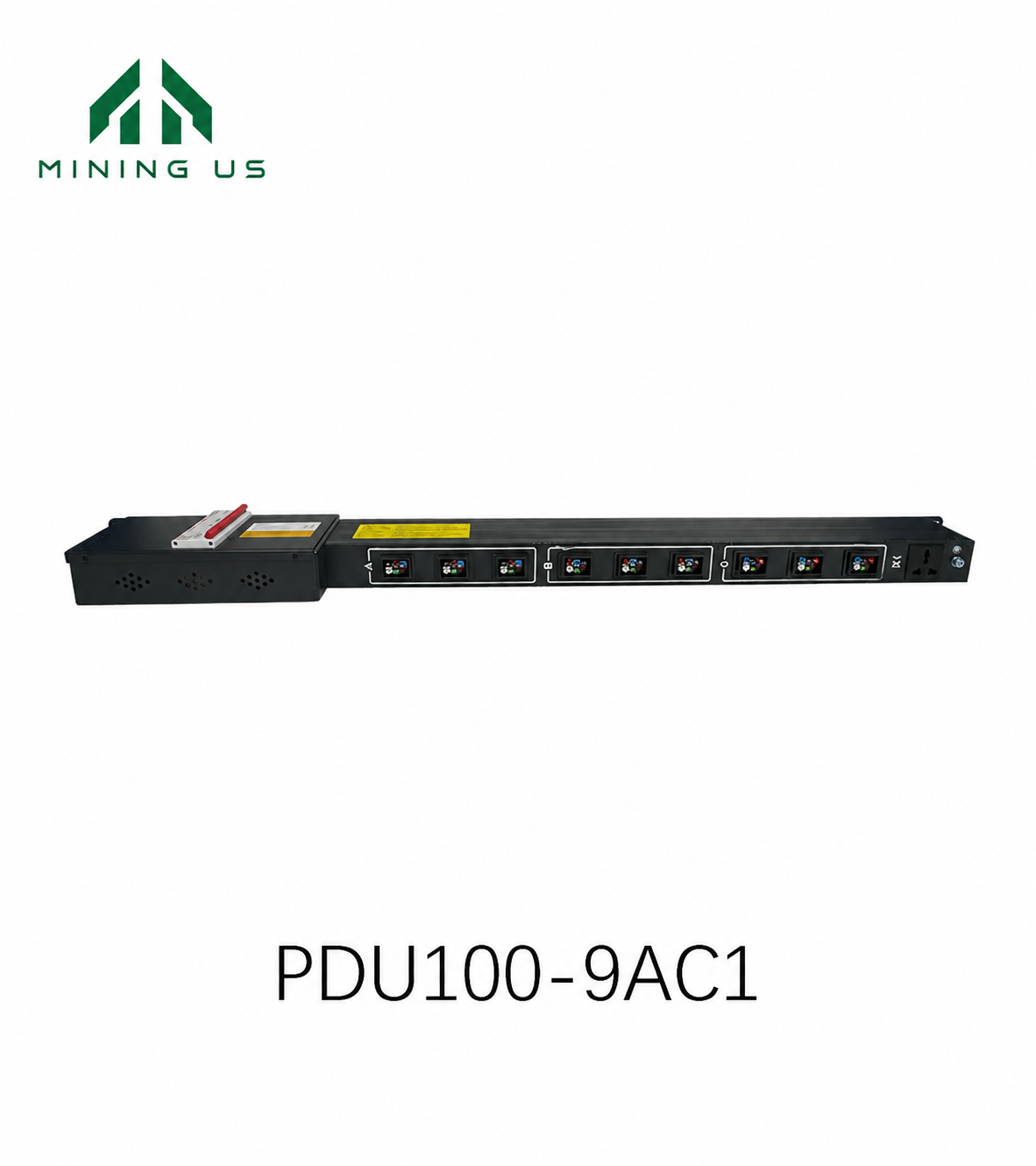

Antminer T21 PDU100-9AC1
$180.00
✓ Manufacturer Warranty
PDU100-9AC1 power distribution unit for compatible Antminer T21 installations, with 9 output ports, a 100A/4P breaker and a supplier-rated 66kW output. Confirm electrical and connector compatibility before ordering.
Product Description
The PDU100-9AC1 power distribution unit provides 9 output ports and a 100A four-pole circuit breaker for compatible Antminer T21 installations. It supports the supplier-listed three-phase and single-phase outputs. Confirm the connector and electrical requirements of your exact miner before ordering.
Specifications
| Model | PDU100-9AC1 |
|---|---|
| Input voltage | 346–480V AC, 3P+N+PE |
| Frequency | 50/60Hz |
| Input current / breaker | 100A / 4P |
| Rated output power | 66kW |
| Three-phase output | 346–480V, 4P |
| Single-phase output | 200–227V AC (supplier-listed) |
| Outputs | 9 ports, 6-pin+1 AC30 (3-in-1 multifunctional) |
| Ingress protection | IP20 |
| Operating temperature | −20°C to 40°C |
| Operating humidity | 5–90% RH, non-condensing |
| Elevation | ≤2,000m |
| Storage temperature | −40°C to 70°C |
| Storage humidity | 5–90% RH, non-condensing |
| Dimensions (L × W × H) | 1100 × 125 × 70mm |
| Weight | 3.8kg |
The supplier’s incoming-conductor entries do not clearly state their units. Confirm cable sizing and the listed single-phase voltage range with MiningUS for your installation.
Configuration & Compatibility
This listing is specifically the 9-port, 100A model. The T21 PDU family also includes other port counts; these are separate products. Contact MiningUS to confirm compatibility and regional connection requirements.
Warranty
Manufacturer Warranty is listed by the supplier. Confirm the applicable duration and terms for this PDU before ordering.
Want to Explore Similar Mining Options?
| Models | Coins | Meilleur Price | Hashrate | Power | Electricity | Algorithm | ROI | Profit |
|---|---|---|---|---|---|---|---|---|
| Antminer S21 XP | BCH, BSV, BTC | $3,480.00 | 270Th/s | 3650W | 13.52J/TH | SHA-256 | 20 Mon | $ 5.91 /day |
| Antminer S21 Pro+ | BCH, BTC | $1,760.00 – $2,045.00 | 234Th | 3510W | 15.00J/TH | SHA-256 | 12 Mon | $ 4.71 /day |
| Antminer S21++ | BCH, BSV, BTC | $1,360.00 – $1,460.00 | 235Th/s | 3878W | 16.50J/TH | SHA-256 | 11 Mon | $ 4.31 /day |
| Antminer T21 | BCH, BSV, BTC | $2,350.00 | 190Th/s | 3610W | 19.00J/TH | SHA-256 | 27 Mon | $ 2.91 /day |
| Antminer S19j XP | BCH, BSV, BTC | $1,480.00 | 151Th/s | 3247W | 21.50J/TH | SHA-256 | 27 Mon | $ 1.86 /day |
Supplier-listed estimates at the time of update; prices and profitability change.
| Specification | 9 ports / 100A / 66kW |
|---|
