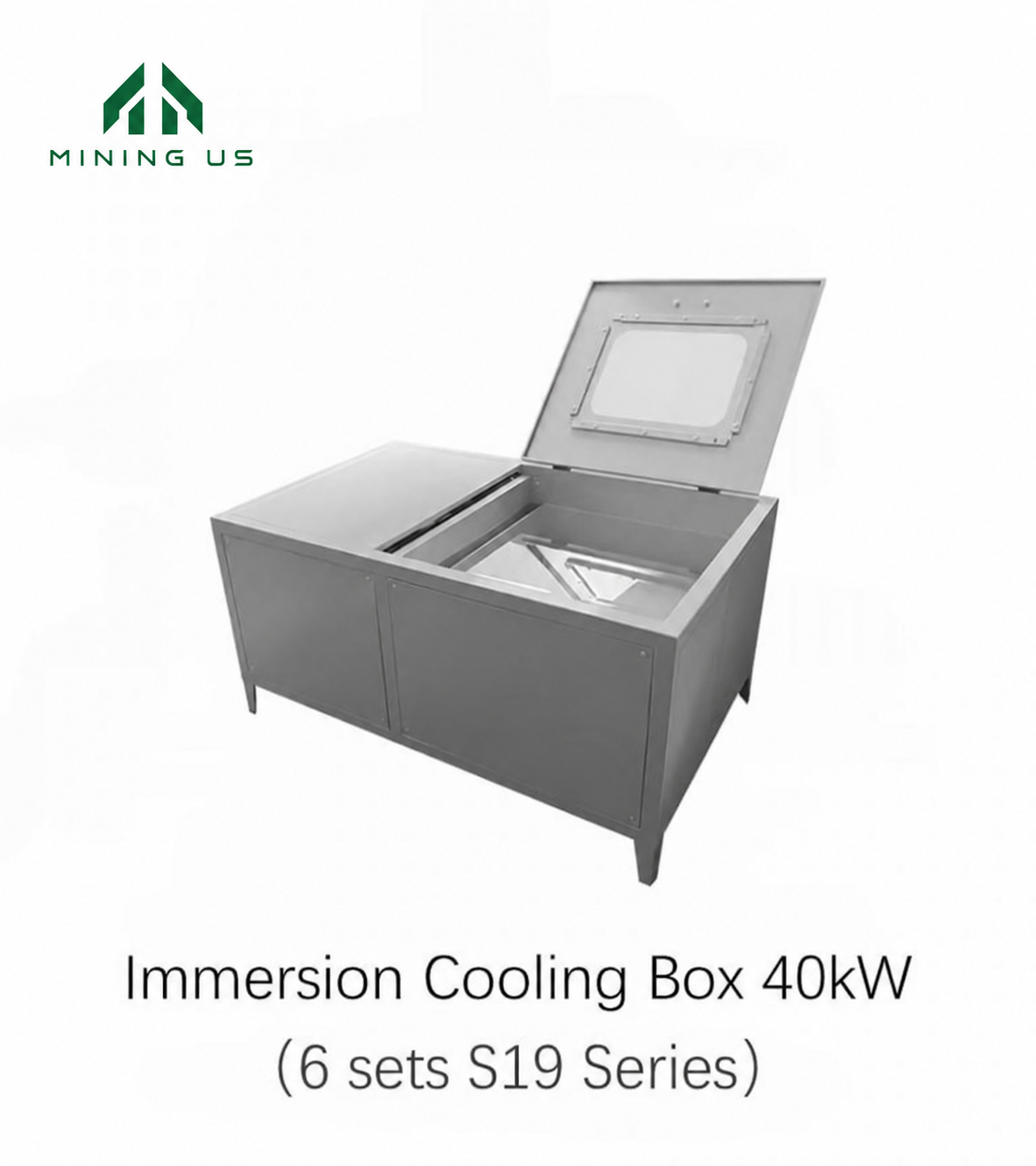

40kW 6-Slot Immersion Cooling Box For Asic Miners
$1,630.00
✓ 1 Year Warranty
40kW immersion cooling package for up to six Antminer S19 miners, including oil tank, 10T water tower and 0.75kW water pump. Integrated heat exchanger and networking, with separate oil and water circuits.
40kW Cooling Box with Water Cooling Tower
A compact immersion cooling system for up to six Antminer S19 units. A plate heat exchanger, power distribution and network switch are integrated into the tank. The internal circuit uses immersion oil and the external circuit uses water, making the system suitable for locations with sufficient water supply.
Package: 40kW oil tank + 10T water tower + 0.75kW water pump.

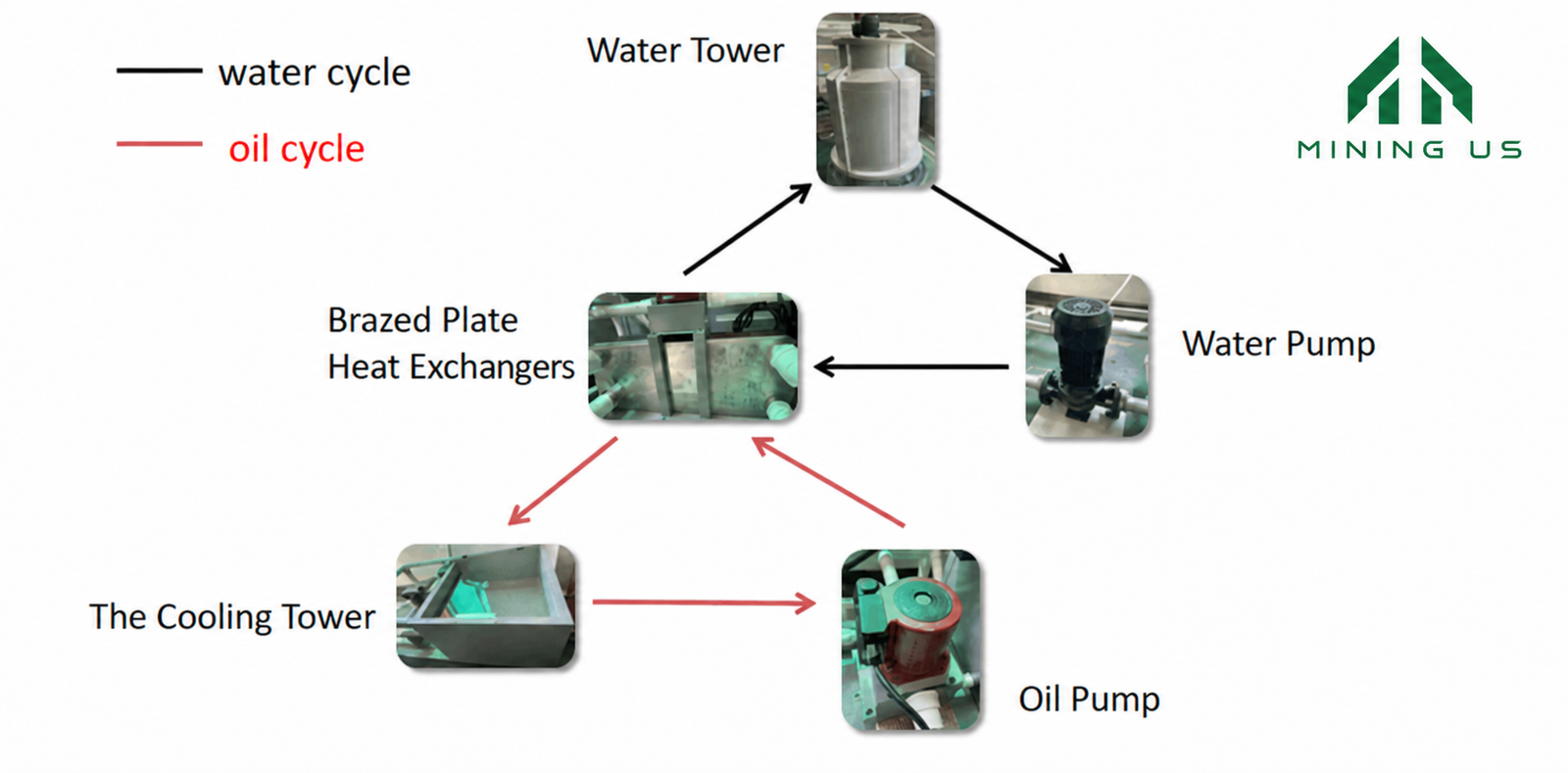

Operating Principle
Product Advantages
- Compact tank design for installations with limited floor space.
- Modular deployment can scale with miner count and power requirements, including supplier-designed vertical groups of four.
- Potential for secondary use of mining heat in suitable heating installations.
The supplier reports up to 60% hashrate improvement with adapted power supplies and software. Actual results depend on the miner, configuration and cooling conditions; this is not a guaranteed performance increase.
The source’s heat-reuse percentage is ambiguously formatted (“5.65%~80%”). Confirm the expected heat-recovery performance for the intended installation.

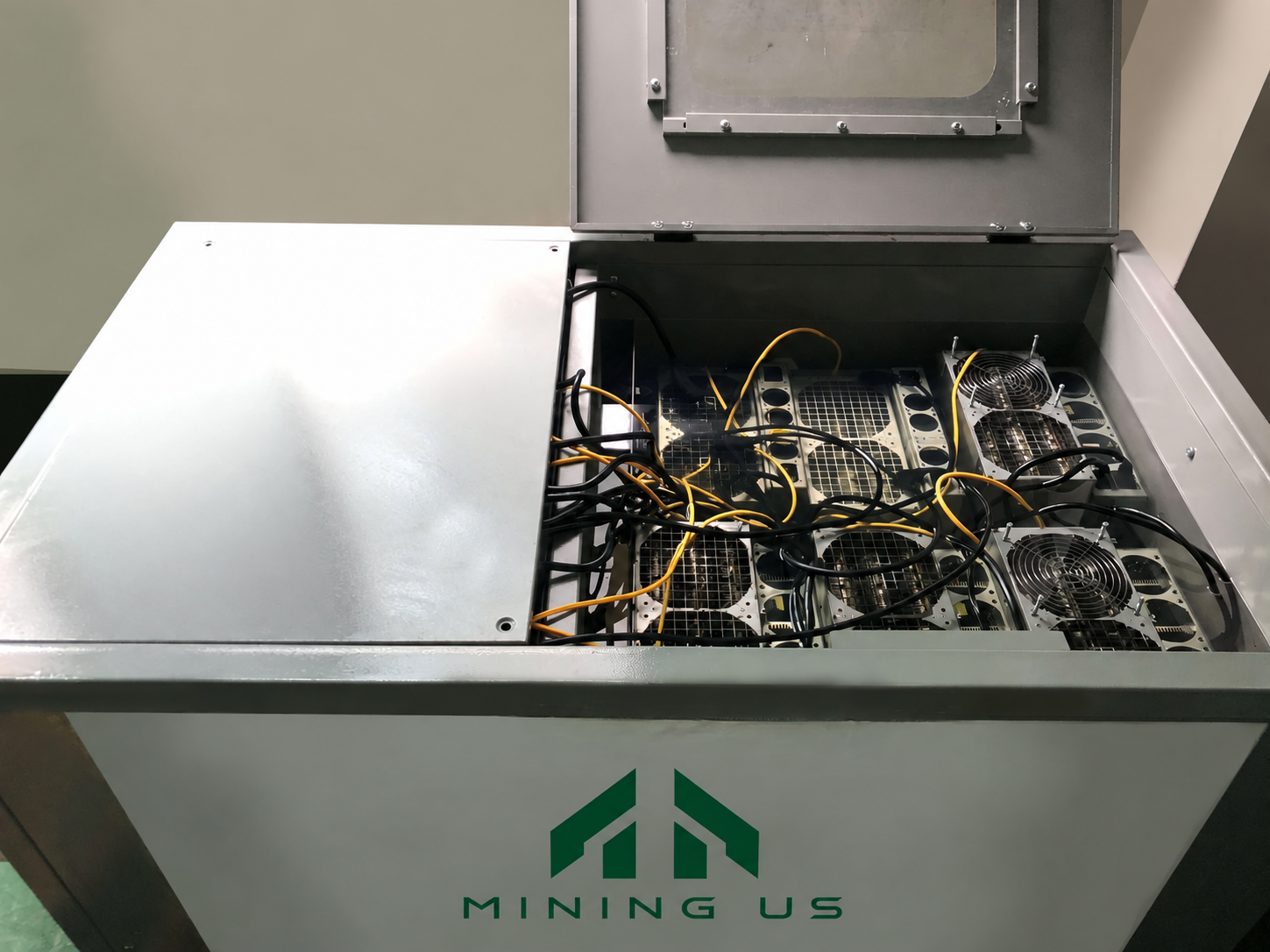

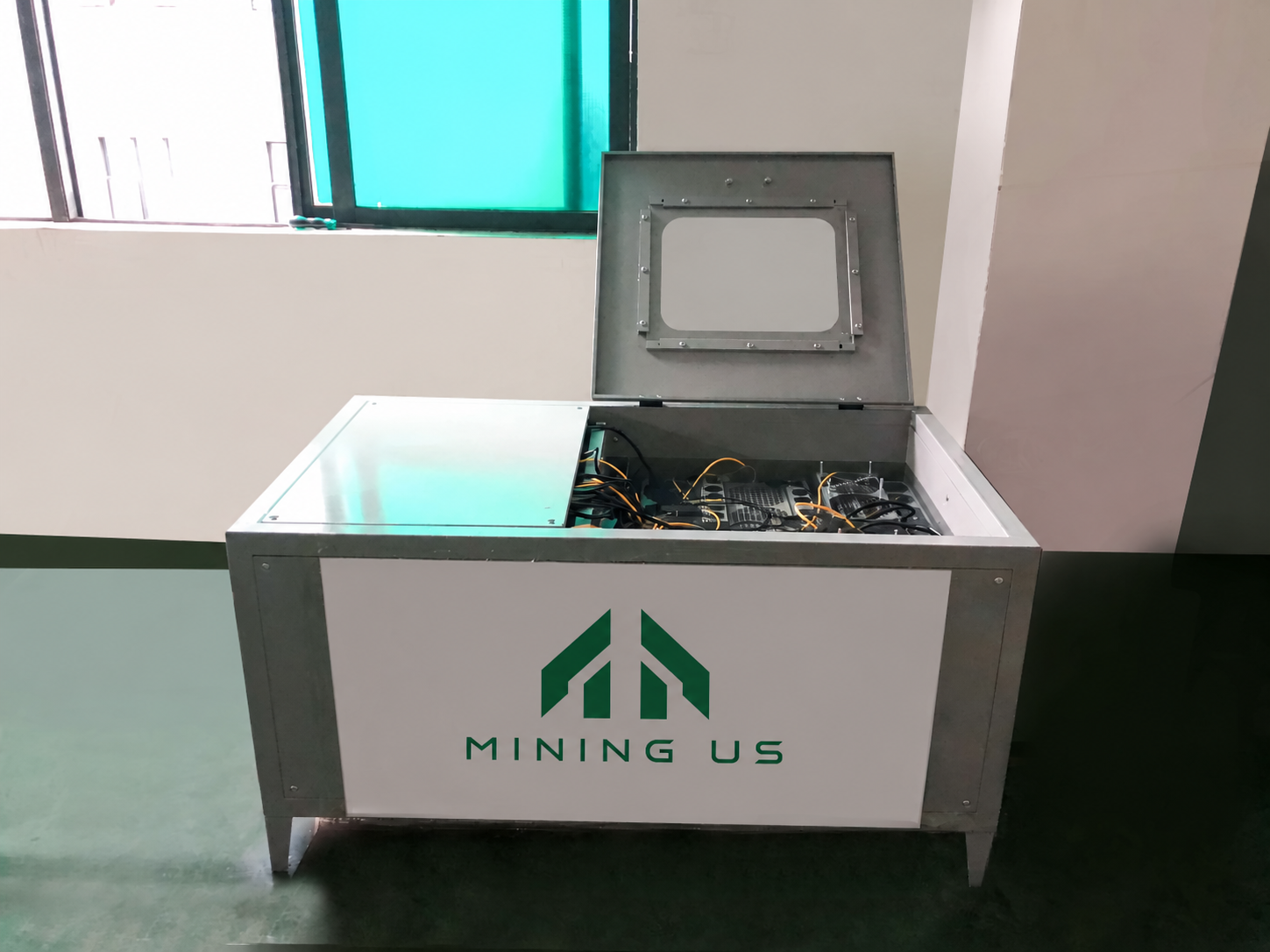

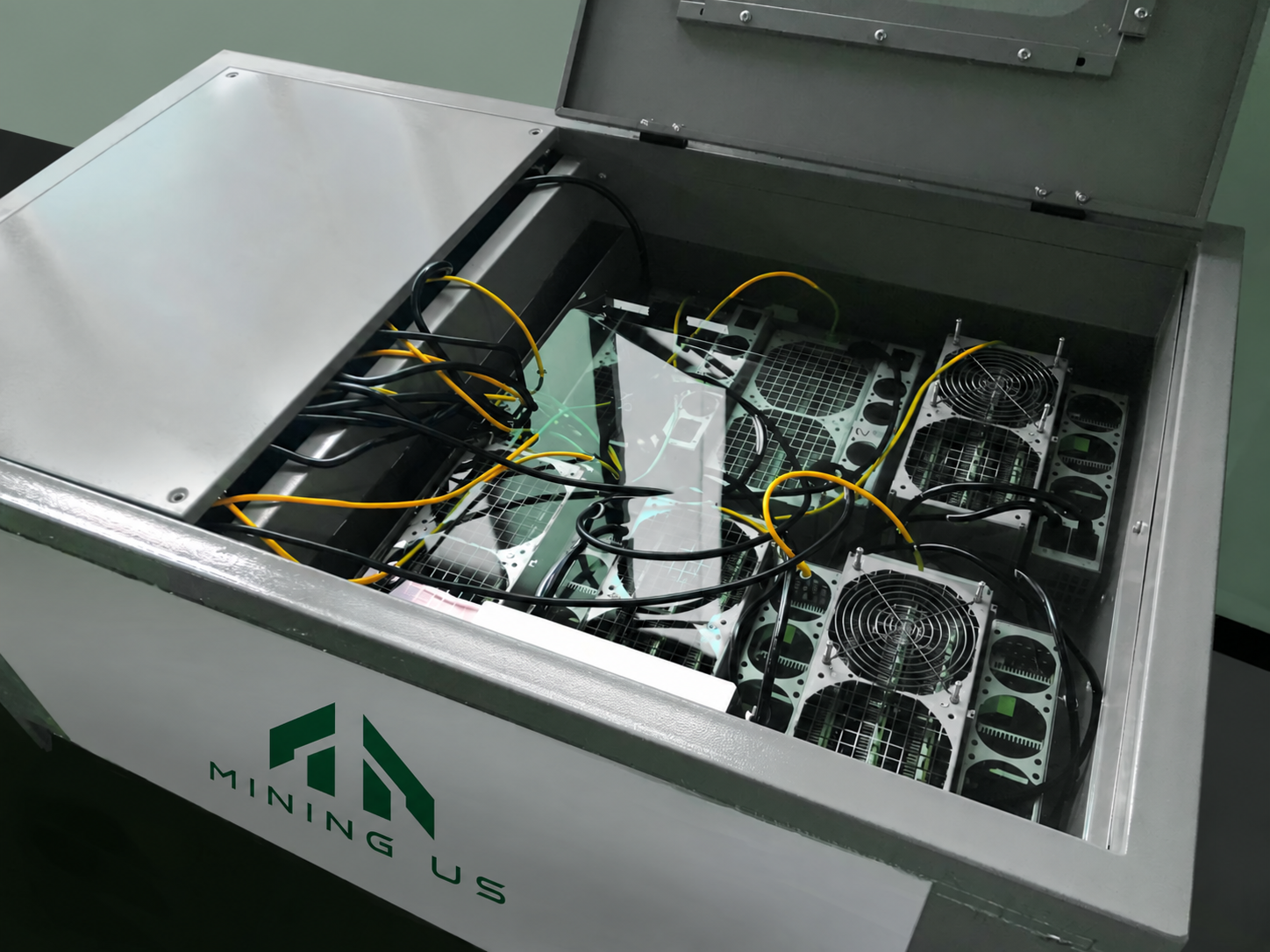

Immersion Cooling Box in Use
Product Specifications
| Outer size | 1270 × 740 × 660 mm (L × W × H) |
|---|---|
| Weight | 120 kg |
| Standard input voltage | 380–415V AC, 50/60Hz |
| Maximum operating load | 40 kW |
| Customized input voltage | 110–415V / 3-phase, subject to confirmed configuration |
| Network switch | TP-Link, 18 × 10/100Mbps ports; PoE, QoS and VLAN support |
| Oil pump consumption | 250 W |
| Water pump consumption | 750 W |
| Warranty | 1 year |
| Selected package | 40kW oil tank + 10T water tower + 0.75kW water pump |
Tank component list: one heat exchanger, one oil pump, one liquid cooling box, one TP-Link switch, and one set of connection pipes and angle valves.
Shipping and Setup
Liquid cooling equipment is generally shipped by sea. Freight charges depend on the destination port and receiving location. Contact MiningUS to confirm the configuration, receiving address and shipping cost before ordering.
