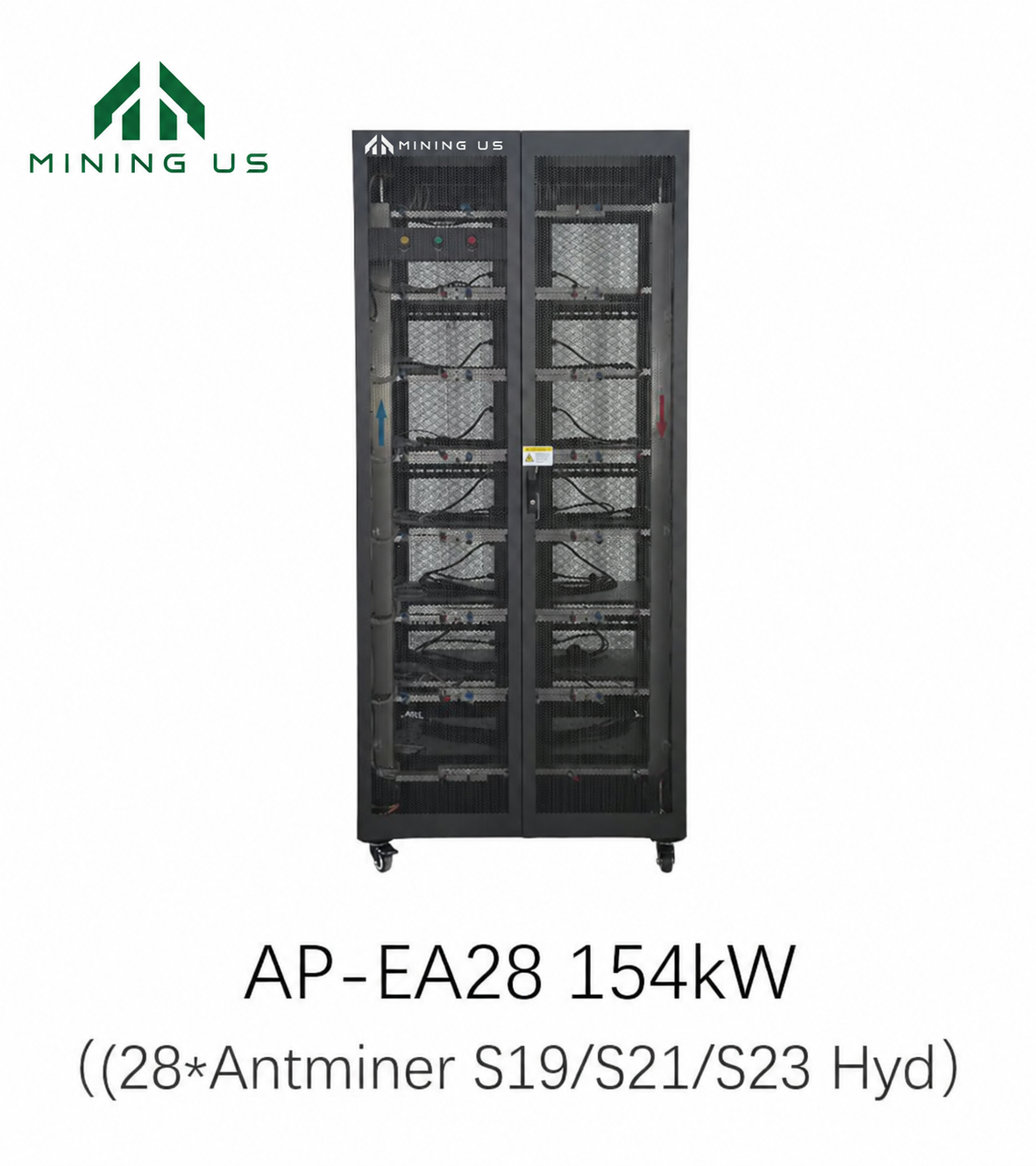

28-Slot 154kW Antminer Modular Liquid Cooling Cabinet
Price range: $0.10 through $2,230.00
AP-EA28 modular liquid cooling cabinet with 154kW capacity for up to 28 compatible Antminer hydro miners. Supports scalable CDU, dry cooler or closed-circuit cooling tower integration.
The $0.10 custom-solution option is an inquiry placeholder, not the complete system price. Contact MiningUS for a formal quote before payment.
Complete your order and payment first. Immediately after payment, visit our Order Customization page and submit your requirements.
Scalable 1-to-N deployments for up to 28 hydro-cooled ASICs
CONTAINER CAPACITY
ASIC MINERS
28 UNITS
TOTAL POWER
154 kW
FORM FACTOR
Custom
COOLING
Hydro
POWER INPUT: 380V–415V AC 50/60Hz
Supplier availability: Typical lead time 15 days • DDP Sea Shipping Available
⚙ Compatible Models
Supplier full-load estimates captured September 13, 2026; results vary with mining conditions and operating costs.
Product Description
The AP-EA28 split-type hydro cabinet supports up to 28 compatible Antminer S19, S21 and S23 hydro miners, with a listed 154kW load. Seven layers accommodate four miners each.
A customized CDU can serve multiple racks in a 1-to-N arrangement. Separating the racks, cooling distribution and power controls provides flexibility for warehouse installations and future expansion.
Core Advantages

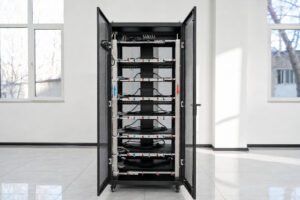

01. High-Density Rack Design
Seven layers with four miners per layer provide 28 slots in an organized cabinet.
02. Precision 304 Stainless Steel Manifold
Stainless steel piping and valves support corrosion resistance and stable circulation.
03. High-Current Locking Connectors
Snap-lock connectors with 12AWG cabling suit S21 and S19j XP series power connections.
04. Integrated Network Management
A centralized network switch and organized cable routing support all 28 units.

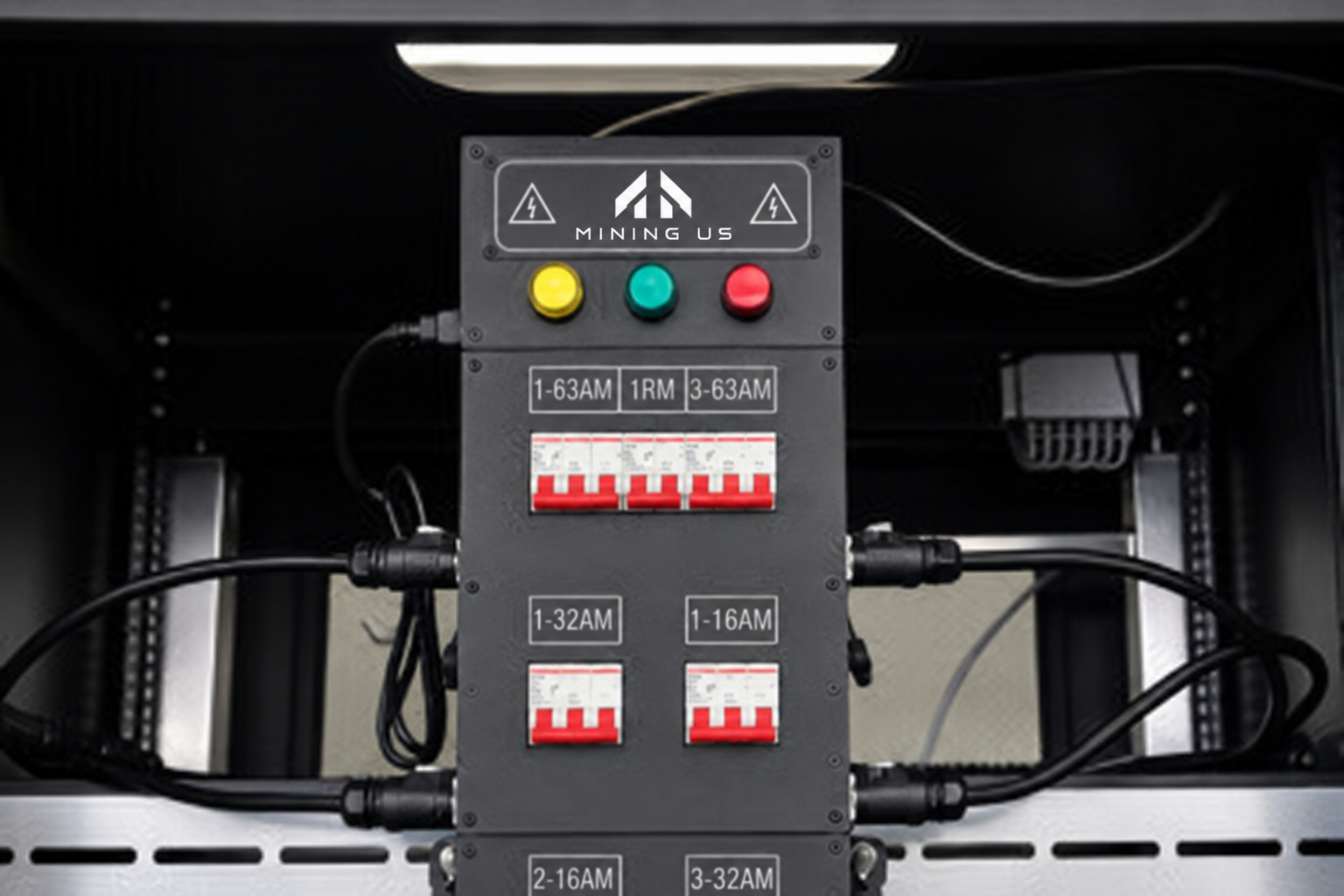

05. Busbar Power Distribution
Seven automatic reclosing breakers and copper busbars distribute power across the rack.

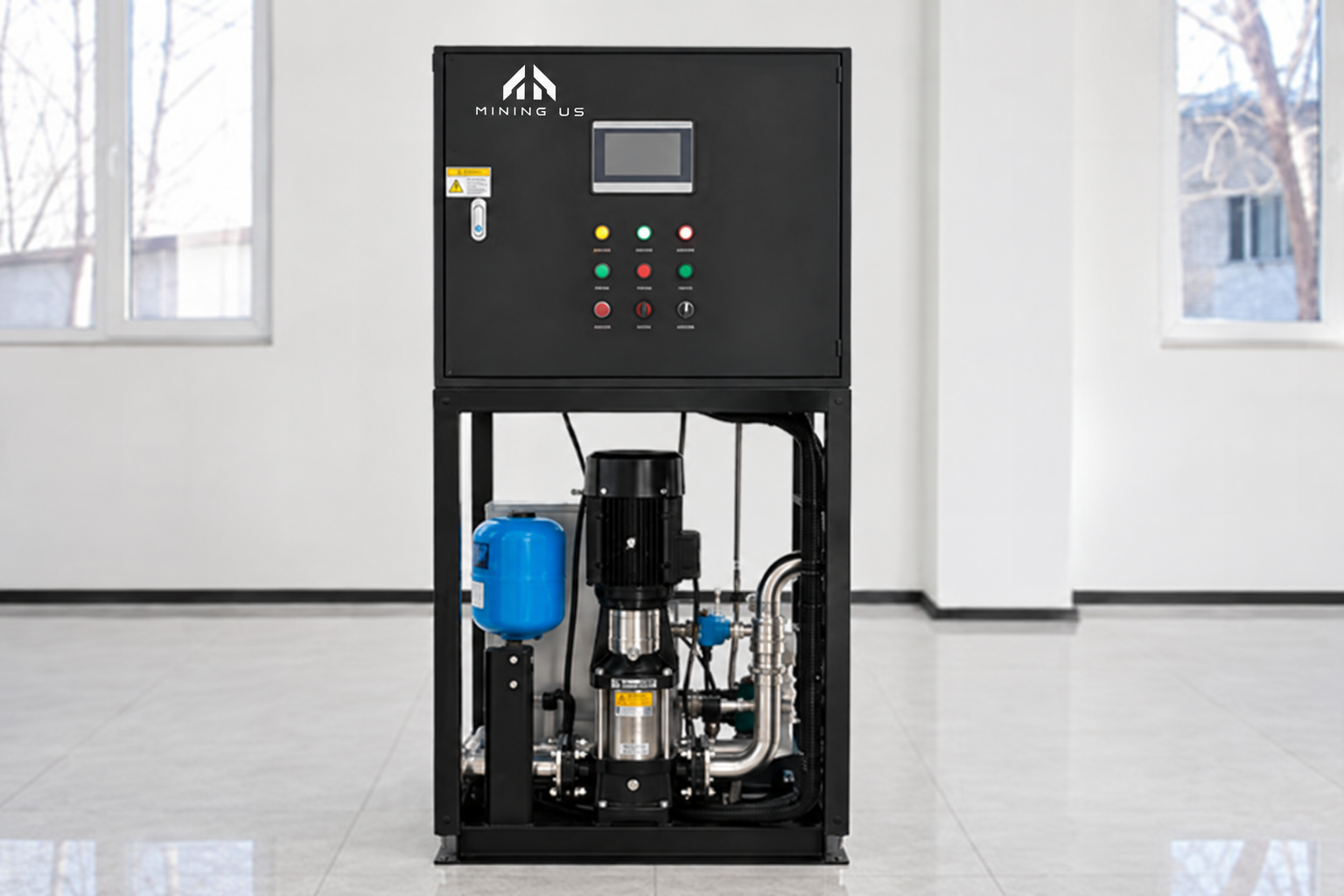

06. Scalable CDU with Heat Recovery
A customized CDU supports multiple racks and can be configured for heat recovery.
Modular 1-to-N Infrastructure Scalability
The supplier describes scalable installations from 200kW to 1000kW using customized high-flow pumps and a dedicated power cabinet. Each AP-EA28 rack is listed at 154kW; the overall cluster requires a matching CDU, heat rejection system and electrical design.
Full Specifications
| External dimensions | 1000 × 1000 × 2200 mm |
|---|---|
| Internal dimensions | 950 × 950 × 2150 mm |
| Weight | 230 kg |
| Model | AP-EA28 |
| Installed capacity | 28 Seat |
| Installed powerload | 154 kW |
| Power of the light-duty vertical multistage pump | 4 kW |
| Power of the fluid replenishing pump | 0.2 kW |
| Total power of the dry cooling tower fan | 12.45 kW |
| Total power of the closed cooling tower fan | 2.2 kW |
| Total power of the closed cooling tower spray pump | 0.75 kW |
| System pipeline pressure | 0.2-0.4 MPA |
| Operating temperature range of the system | 22-42 ℃ |
| Coolant circulation demand of a single machine | ≥0.5 m³/h |
| Total demand for circulating coolant within the system | ≥0.28 m³ |
| Residual Current Circuit Breaker | 400 A |
| Contactor | 9 A |
| Intermediate relay | 24 V |
| CUL certified frequency converter | 380 V |
Certification Standards
The supplier states that its products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
| Model | Cooling Capacity | Miner Slots | Dimensions (L × W × H) | Application |
|---|---|---|---|---|
| 20-Slot Antminer Hydro Cooling Rack | 110 kW | 20 Slots | 1000 × 1000 × 1800 mm | Modular Small-Scale Setups |
| 24-Slot Antminer Hydro Cooling Rack | 132 kW | 24 Slots | 1000 × 1000 × 2000 mm | Flexible Facility Expansion |
| 28-Slot Antminer Hydro Cooling Rack | 154 kW | 28 Slots | 1000 × 1000 × 2200 mm | Scalable 1-to-N Operations |
| 36-Slot Antminer Hydro Cooling Rack | 198 kW | 36 Slots | 1500 × 1000 × 2000 mm | High-Density Industrial Scaling |
Real Results from Real Miners
Supplier-reported deployment examples and performance claims.

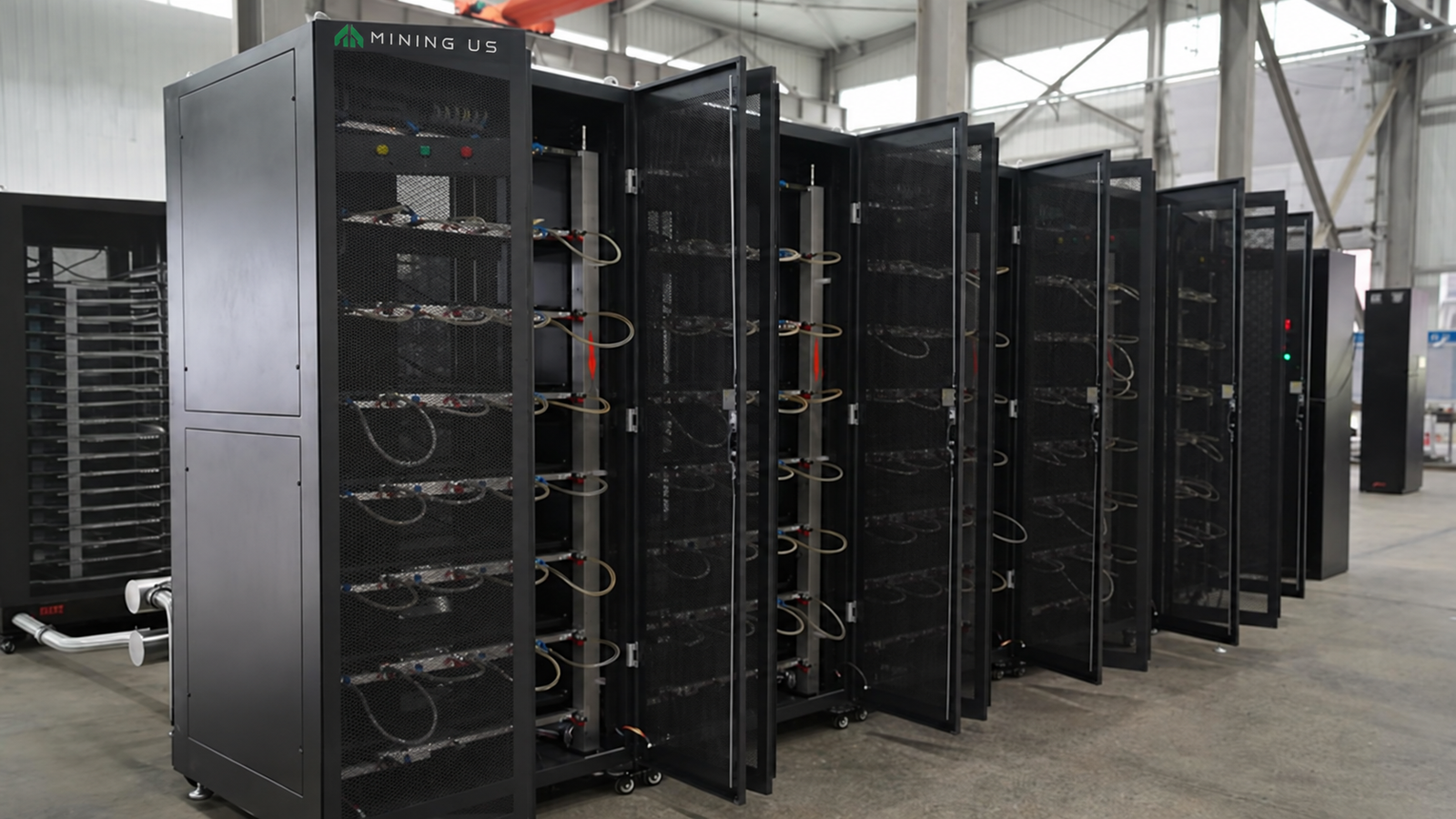

Texas, United States — 1-to-7 Scalable Hydro Project
One customized CDU drives seven cabinets, supporting 196 miners.
+28% efficiency gain · -25% setup time · 1.1MW total capacity.

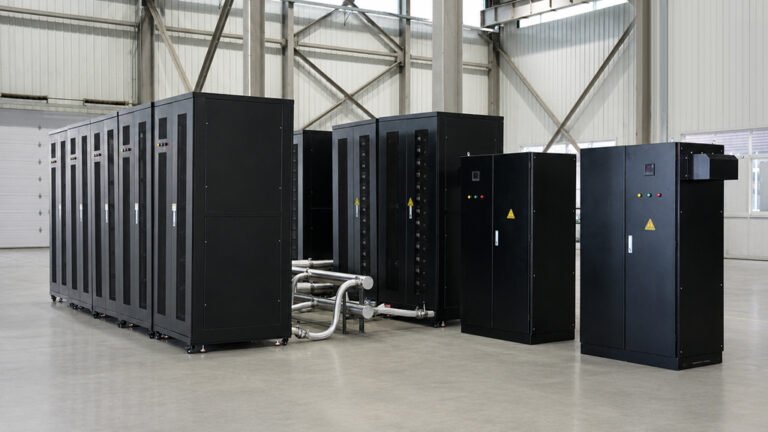

Southeast Asia — 1-to-9 Large-Scale Expansion
One high-flow CDU serves nine racks and 252 miners.
+30% O&M savings · 1.4MW total power.
The source displays “-99.9% Thermal Stability”; that conflicting figure requires supplier clarification and is not presented as a verified performance rating.
The supplier reports over 1.2GW cumulative delivered cooling capacity across more than 50 countries and regions.
28-Slot Antminer Hydro Cooling Rack FAQs
What does 1-to-N mean?
One customized cooling distribution unit serves multiple racks, including 1-to-7 and 1-to-9 layouts.
Why is the power cabinet separate?
Centralized power distribution simplifies electrical management and servicing across a cluster.
Can I start with one rack and expand later?
Yes. Size the CDU and pump system for the planned long-term deployment so flow remains sufficient as racks are added.
How does the split-type design help the facility layout?
Cooling and power services can be centralized, with distribution lines routed to the mining racks.
| Specification | Cabinet Only, Contact Us for Customized CDU & Cooling Tower Solutions |
|---|
