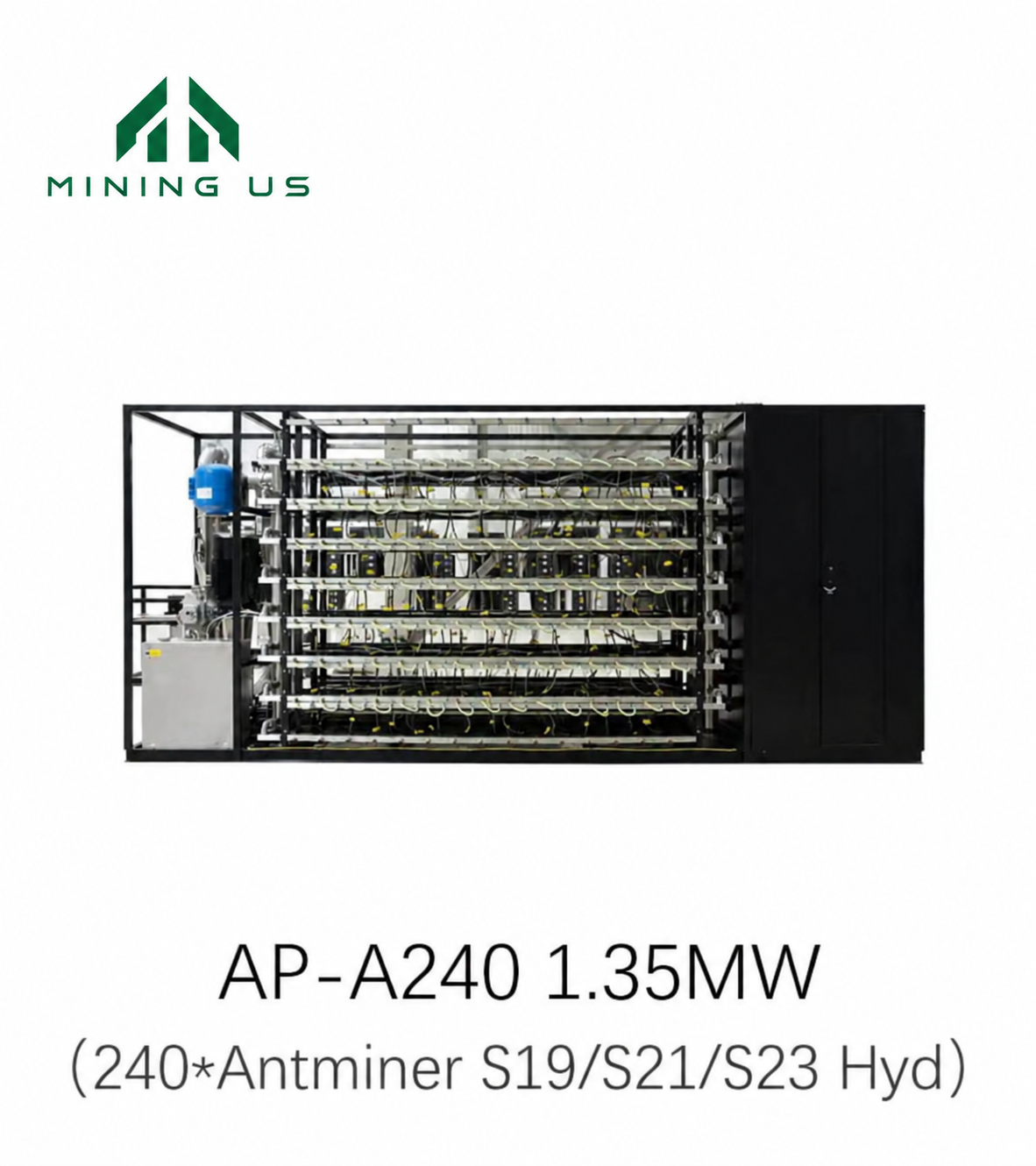

240-Slot 1.35MW Antminer Liquid Cooling Rack
AP-A240 hydro cooling rack for up to 240 Antminer S19/S21/S23 Hydro units. Eight layers, integrated CDU, individual PDU switching and 1.35MW stated cooling capacity.
Price on request. Contact MiningUS for a quotation based on your miner configuration and site requirements.
Once your order is confirmed, visit our Order Customization page and submit your requirements.
1.35MW 240-Slot Antminer Hydro Cooling Rack for Enterprise Indoor Mining
CONTAINER CAPACITY
ASIC MINERS
240 UNITS
TOTAL POWER
1,350 kW
FORM FACTOR
Custom
COOLING
Hydro
Power input: 380–415V AC, 50/60Hz
Supplier availability: Typical lead time 45 days • DDP Sea Shipping Available
⚙ Compatible Models
Supplier estimates captured September 13, 2026; profitability varies. Confirm the selected miner configuration and total electrical demand with your system design.
Product Description
The AP-A240 is an indoor hydro cooling rack for up to 240 Antminer S19/S21/S23 Hydro miners. Eight layers hold 30 units each, supporting dense installations in warehouses and industrial facilities.
A reinforced steel rack, 30kW vertical multistage pump, dedicated PDU switching, real-time monitoring and leak protection support the liquid cooling system. The supplier offers customized CDU and power cabinet configurations for the site.
Core Advantages

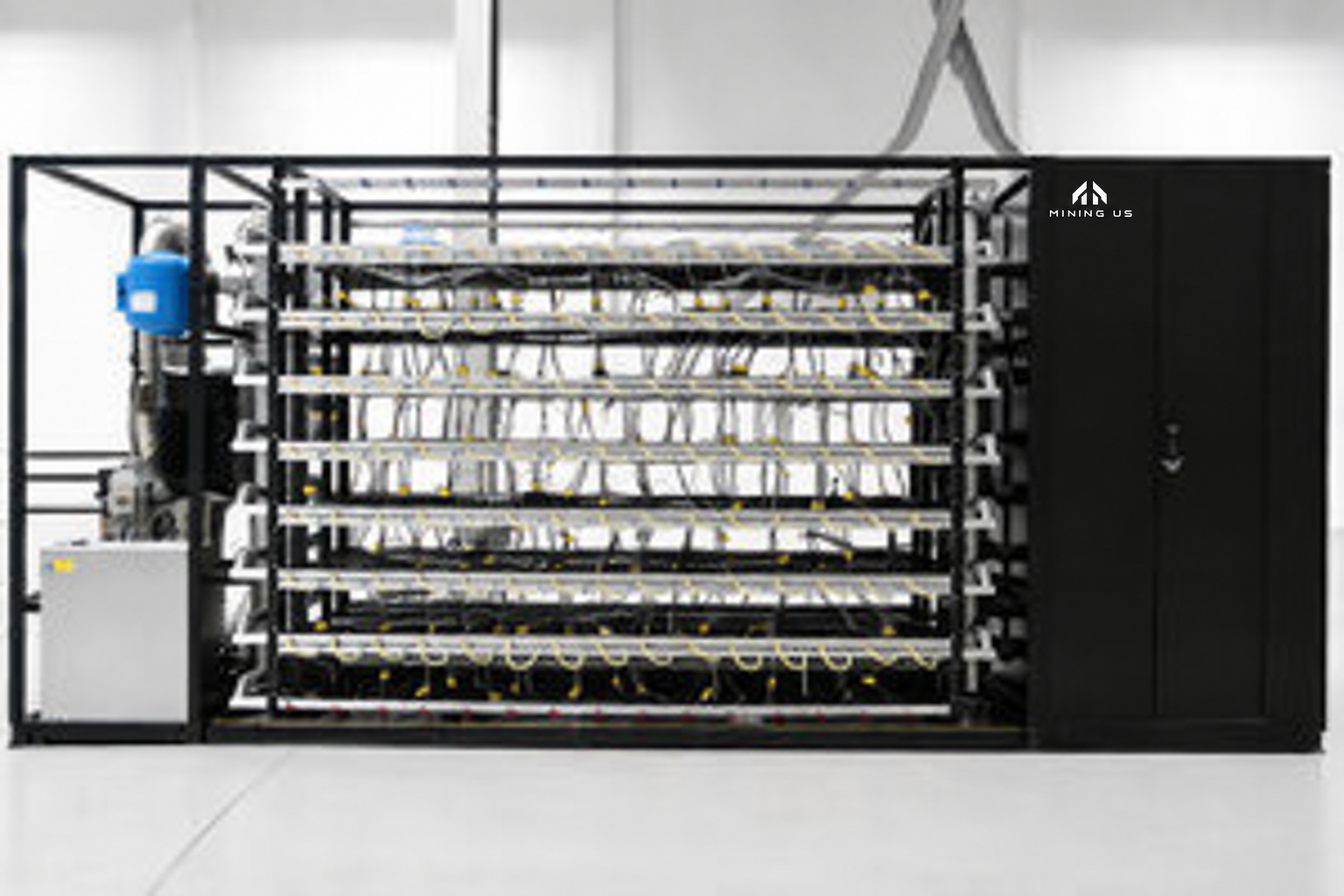

Space-Saving Rack Design
An eight-layer rack holds 30 miners on each layer, for 240 slots within a compact industrial footprint.

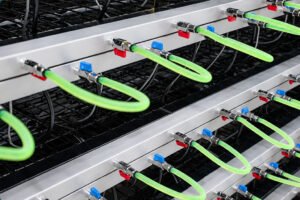

Leak-Proof Quick Connectors
Dual-sealing quick-connect fittings and water hoses help limit coolant loss when equipment is disconnected.

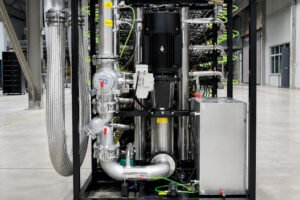

Advanced Integrated CDU System
A 30kW vertical multistage pump drives coolant circulation through the integrated CDU and rack.

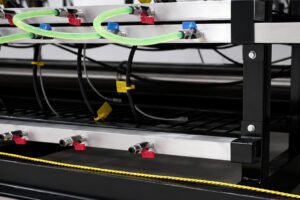

Intelligent Electric Leakage Detection
Residual current and moisture monitoring help identify leakage or insulation faults and isolate affected circuits.

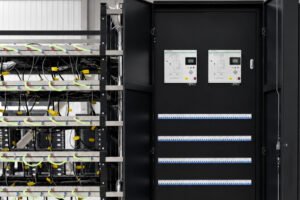

1-on-1 Control PDU Cabinet
Dedicated, labeled circuit protection supports individual miner servicing.
Smart PLC Control System
Touchscreen controls track flow, pressure, temperature and leak alarms for system monitoring and fault diagnosis.
Full Specifications
| Model | AP-A240 |
|---|---|
| Installed capacity | 240 seats |
| Cooling capacity (product description) | 1.35MW |
| Installed power load (specification table) | 1320 kW |
| External dimensions | 6025 × 1500 × 2700 mm |
| Internal dimensions (supplier listing) | 6025 × 1500 × 2700 mm |
| Weight | 3800 kg |
| Vertical multistage pump | 30 kW |
| Fluid replenishing pump | 0.2 kW |
| Dry cooling tower fans | 133 kW |
| Closed cooling tower fans | 17.6 kW |
| Closed cooling tower spray pump | 5.5 kW |
| System pipeline pressure | 0.2–0.4 MPa |
| System operating temperature | 22–42°C |
| Coolant flow per machine | ≥0.5 m³/h |
| Total circulating coolant volume | ≥6 m³ |
| Molded case circuit breaker | 160 A |
| Residual current circuit breaker | 800 A |
| Contactor | 9 A |
| Intermediate relay | 24 V |
| CUL-certified frequency converter (supplier specification) | 380 V |
The source gives 1.35MW in its overview and 1320kW as installed power load. It also lists identical internal and external dimensions. These source values are retained separately; confirm the installation drawing and full auxiliary power demand when requesting a quote.
Certification Standards
The supplier states that its products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
| Model | Cooling Capacity | Miner Slots | Dimensions (L × W × H) | Application |
|---|---|---|---|---|
| 28-Slot Antminer Hydro Cooling Rack | 154 kW | 28 Slots | 1000 × 1000 × 2000 mm | Mid-to-Large Mining Operations |
| 110-Slot Antminer Hydro Cooling Rack | 620 kW | 110 Slots | 4880 × 1300 × 2700 mm | Large-scale Mining Operations |
| 154-Slot Antminer Hydro Cooling Rack | 870 kW | 154 Slots | 4880 × 1500 × 2700 mm | Large-scale Mining Operations |
| 240-Slot Antminer Hydro Cooling Rack | 1350 kW | 240 Slots | 6025 × 1500 × 2700 mm | Large-scale Mining Operations |
240-Slot Antminer Hydro Cooling Rack FAQs
Where is this rack best deployed?
The supplier describes indoor warehouses, existing industrial facilities with adequate power, and megawatt-scale mining farms as suitable settings.
What cooling equipment can the system use?
The source specifies dry cooling tower and closed cooling tower components. The heat-rejection equipment and CDU configuration should be quoted for the site.
How are individual miners controlled?
Dedicated PDU switching and labeled breakers support separate miner circuits and maintenance.
Can the CDU and power cabinet be customized?
The supplier offers customized CDU arrangements and power cabinets, with scalable layouts selected for the installation.
| Specification | AP-A240 / 240-slot / 1.35MW hydro cooling rack |
|---|
