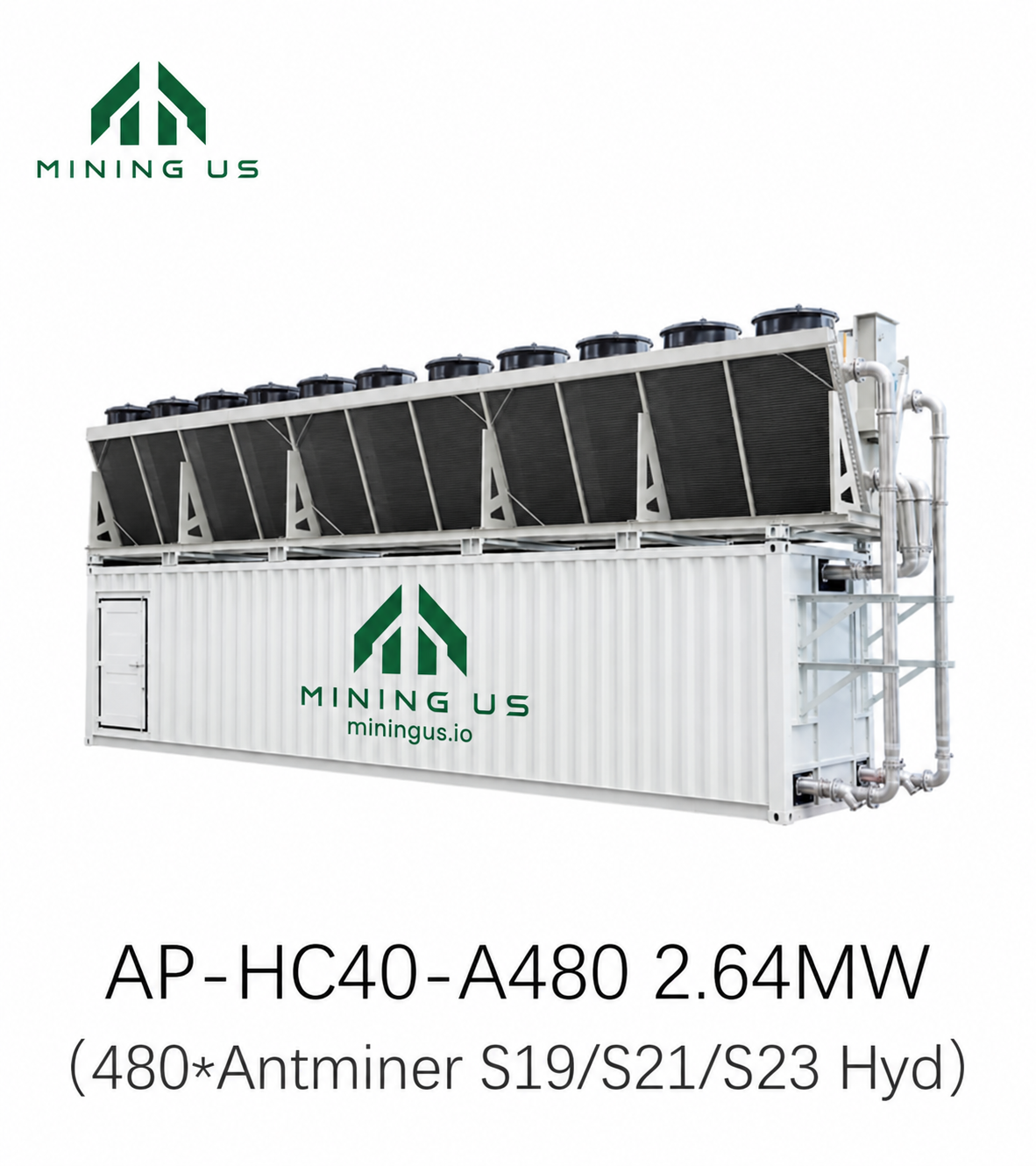

2.64MW 480-Slot Antminer Hydro Cooling Container (40HQ)
Price range: $114,600.00 through $167,500.00
AP-HC40-A480 hydro cooling container with 2.64MW installed capacity and space for up to 480 Antminer hydro miners. Choose a closed cooling tower or dry cooler solution for your site.
Complete your order and payment first. Immediately after payment, visit our Order Customization page and submit the form with your customization requirements.
2.64MW 480-Slot Ultra-Density Hydro Cooling Container for BTC Mining
⚙ Compatible Models
View More ›293Th/s · 19 J/Th
480 SlotsFull-load: $5,347.20/day➜Antminer S21 XP Hydro473Th/s · 12 J/Th
480 SlotsFull-load: $8,630.40/day➜Antminer S21+ Hydro358Th/s · 15 J/Th
480 SlotsFull-load: $6,532.80/day➜Antminer S21e Hydro310Th/s · 17 J/Th
480 SlotsFull-load: $5,659.20/day➜Antminer S23 Hyd580Th/s · 9.5 J/Th
480 SlotsFull-load: $10,584.00/daySupplier reference estimates, not live or guaranteed earnings. Actual results vary with miner settings, network conditions, coin prices and electricity costs.
Product Description
The AP-HC40-A480 integrates capacity for up to 480 Antminer hydro miners into a 40HQ container with a listed 2.64MW installed power load. It is designed for large industrial mining sites, utility-scale deployments and sites using off-grid power stations.
Integrated racks, cooling distribution, power cabinets and controls simplify installation while supporting high-density operation.
Core Advantages

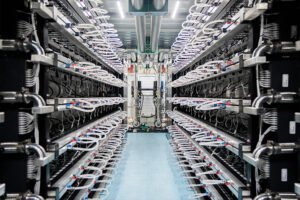

01. Integrated All-in-One System
Server racks, CDU, power cabinets and smart controls are integrated in a single 40FT container to simplify setup and reduce on-site construction.
02. Redundant Dual-Loop Cooling
Separate water circulation loops and dual pumps support continued cooling when one side loses power.

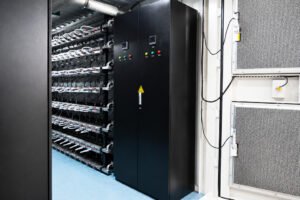

03. Individual Power Switches
Four power cabinets, two at the front and two at the back, distribute the 2.64MW electrical load.
04. Leak Detection System
Floor-mounted moisture-sensing ropes detect coolant leaks and trigger remote alarms and automatic power cutoffs.

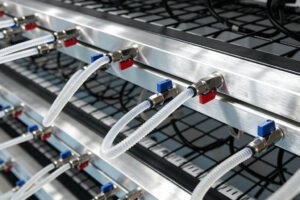

05. Excellence Roots in Details
Aviation plugs and double-sealed quick connectors simplify connections and help reduce leakage during maintenance.

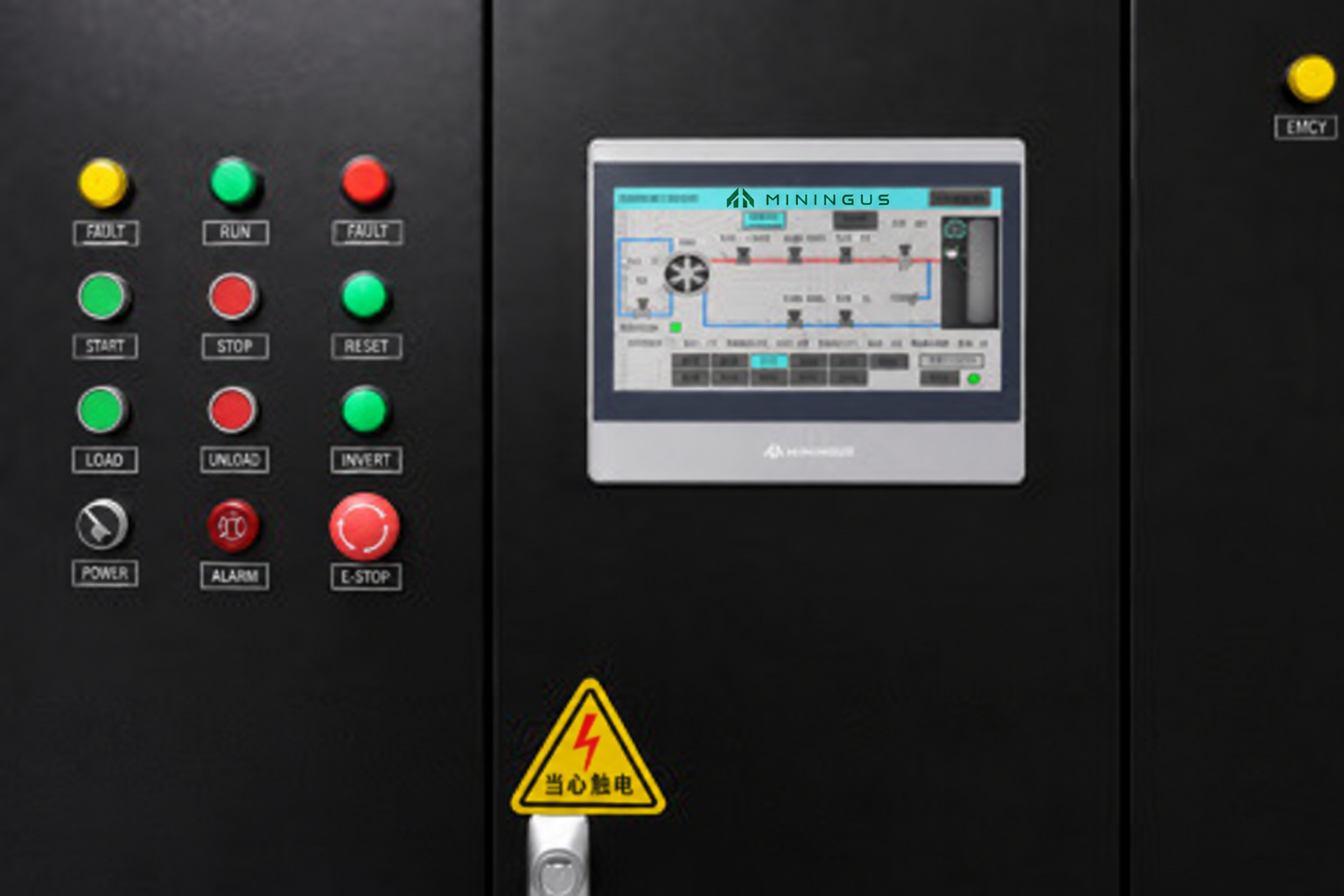

06. Intelligent Management System
Smart controls monitor flow, pressure, temperature and PUE, with automatic regulation and remote access from mobile or PC.
Full Specifications
| Model | AP-HC40-A480 |
|---|---|
| Installed capacity | 480 miners |
| Installed power load | 2,640 kW |
| External dimensions (L × W × H) | 12,192 × 2,438 × 2,896 mm |
| Internal dimensions (L × W × H) | 12,000 × 2,230 × 2,660 mm |
| Weight | 9,200 kg |
| Power input | 380–415V AC, 50/60Hz |
| Light-duty vertical multistage pump | 30 kW |
| Fluid replenishing pump | 0.2 kW |
| Dry cooling tower fan total power | 116.2 kW |
| Closed cooling tower fan total power | 35.2 kW |
| Closed cooling tower spray pump total power | 11 kW |
| System pipeline pressure | 0.2–0.4 MPa |
| System operating temperature | 22–42°C |
| Coolant circulation demand per miner | ≥0.5 m³/h |
| Total circulating coolant demand | ≥6 m³ |
| Molded case circuit breaker | 250 A |
| Residual current circuit breaker | 800 A |
| Contactor | 9 A |
| Intermediate relay | 24 V |
| CUL-certified frequency converter | 380 V |
Certification Standards
The supplier states that its products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
Supplier-listed Antminer hydro cooling options for different deployment sizes.
| Model | ❄️ Cooling Capacity | ⚙️ Miner Slots | 📏 Dimensions (L × W × H) | 🏢 Application |
|---|---|---|---|---|
| 308-Slot Antminer Hydro Cooling Container | 1.7 MW | 308 Slots | 12,192 × 2,438 × 2,896 mm | Standard Industrial Operations |
| 364-Slot Antminer Hydro Cooling Container | 2.1 MW | 364 Slots | 12,192 × 2,438 × 2,896 mm | High-Density Mining Farms |
| 420-Slot Antminer Hydro Cooling Container | 2.4 MW | 420 Slots | 12,192 × 2,438 × 2,896 mm | Mega-Scale Utility Projects |
| 480-Slot Antminer Hydro Cooling Container | 2.6 MW | 480 Slots | 12,192 × 2,438 × 2,896 mm | Enterprise-Class Global Facilities |
Real Results from Real Miners
Supplier-reported projects and performance figures. These are supplier claims, not independently verified results or MiningUS customer testimonials.

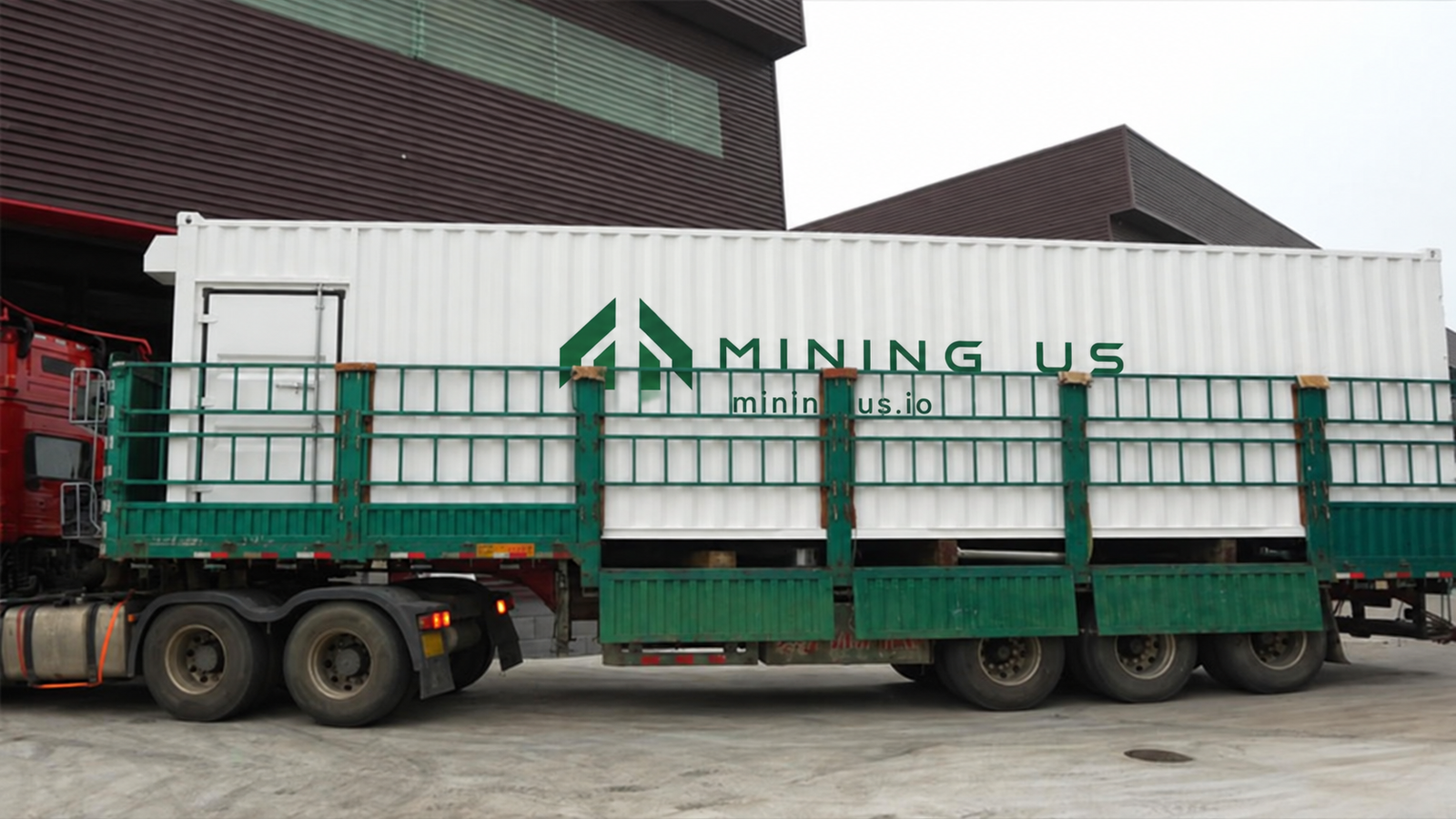

Monterrey, Mexico
12 × 2.64MW Hydro Project
Large-scale modular deployment under continuous industrial power.
+30% Space Optimization
-23% Capex Saved
$1.6M Annual Savings

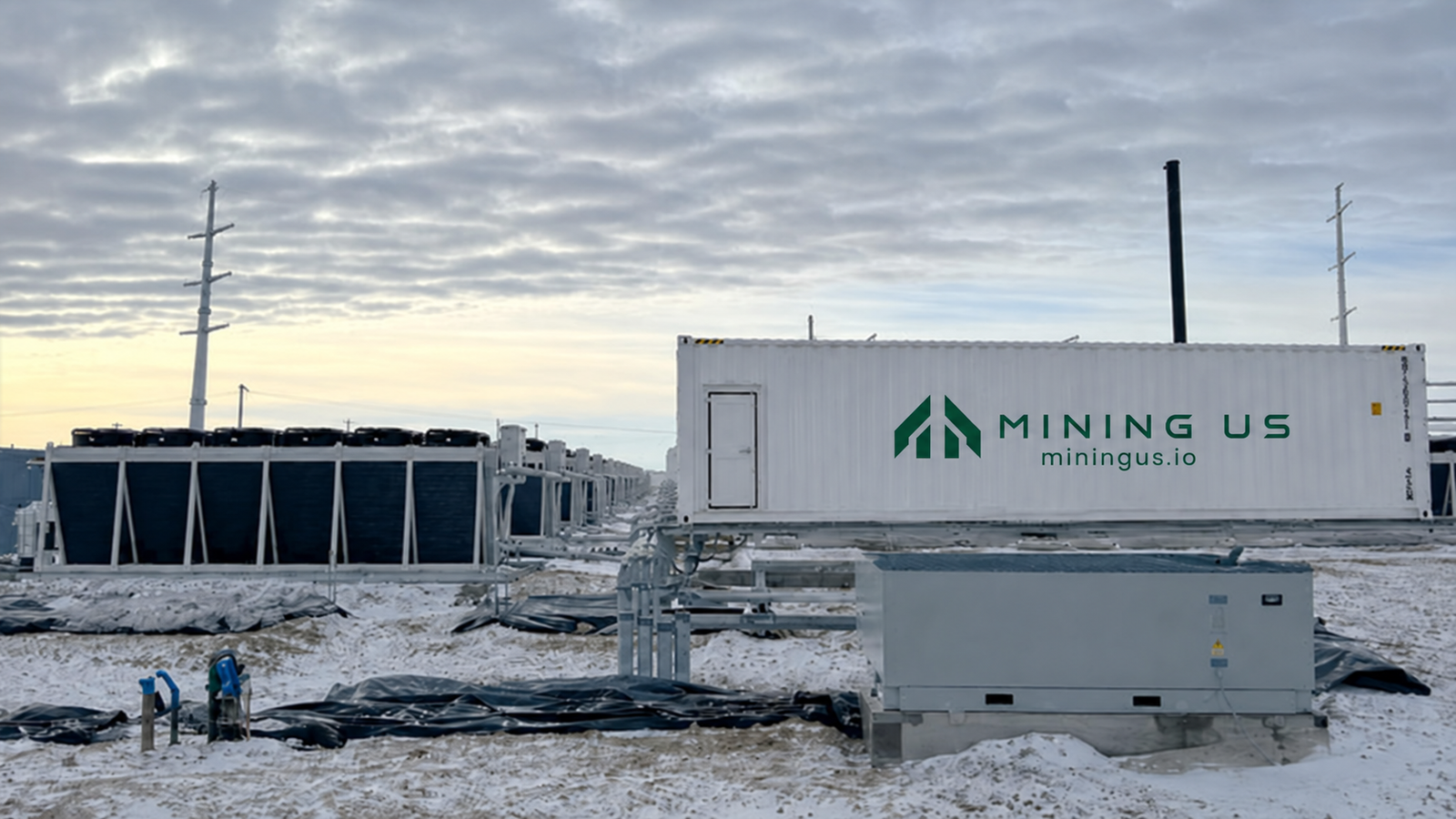

Ekibastuz, Kazakhstan
10 × 2.64MW Hydro Project
Large-scale mining operations under heavy thermal load.
+100% Operational Uptime
-30% Setup Time
99.9% System Reliability
Supplier global deployment figures: 1.2+ GW cumulative delivered cooling capacity across 50+ countries and regions.
480-Slot Antminer Hydro Cooling Container FAQs
Does the dry cooler need water replenishment?
The supplier describes a closed-loop dry cooler with no evaporative water consumption. For cold regions it recommends an appropriate ethylene-glycol mixture to protect pipework from freezing. This describes the dry cooler option.
How does the dry cooler handle high ambient temperatures?
High-power fans, large piping and fluid-guiding tubes improve heat dissipation. Confirm full-load cooling performance for the actual site temperature and miner configuration.
Can the electrical system be customized?
The supplier offers regional electrical configurations, including European three-phase and North American 60Hz systems. The standard listed input is 380–415V AC, 50/60Hz.
What materials are used in the dry cooler?
The supplier lists stainless-steel coils and hydrophilic aluminum fins with anti-corrosion coatings, and states a ten-year design lifespan. This is a supplier statement, not a warranty term.
What is the lead time and shipping method?
The overview lists a typical 45-day lead time, while the FAQ states four to six weeks. Confirm the schedule for the selected configuration. The ISO-sized container supports standard international sea and rail transport.
