15kW Water Cooling Radiator For Antminer Whatsminer Hydro Miner
$350.00
✓ 1 Year Warranty
AP-M3 water cooling radiator rated at 15 kW at 30°C ambient. Supports up to two compatible standard Antminer Hydro miners, one Antminer 3U Hydro, or one WhatsMiner 2U Hydro, with adjustable circulation flow and six temperature-control levels.
Complete your order and payment first. Immediately after payment, visit our Order Customization page and submit the form with your customization requirements.
Product Description

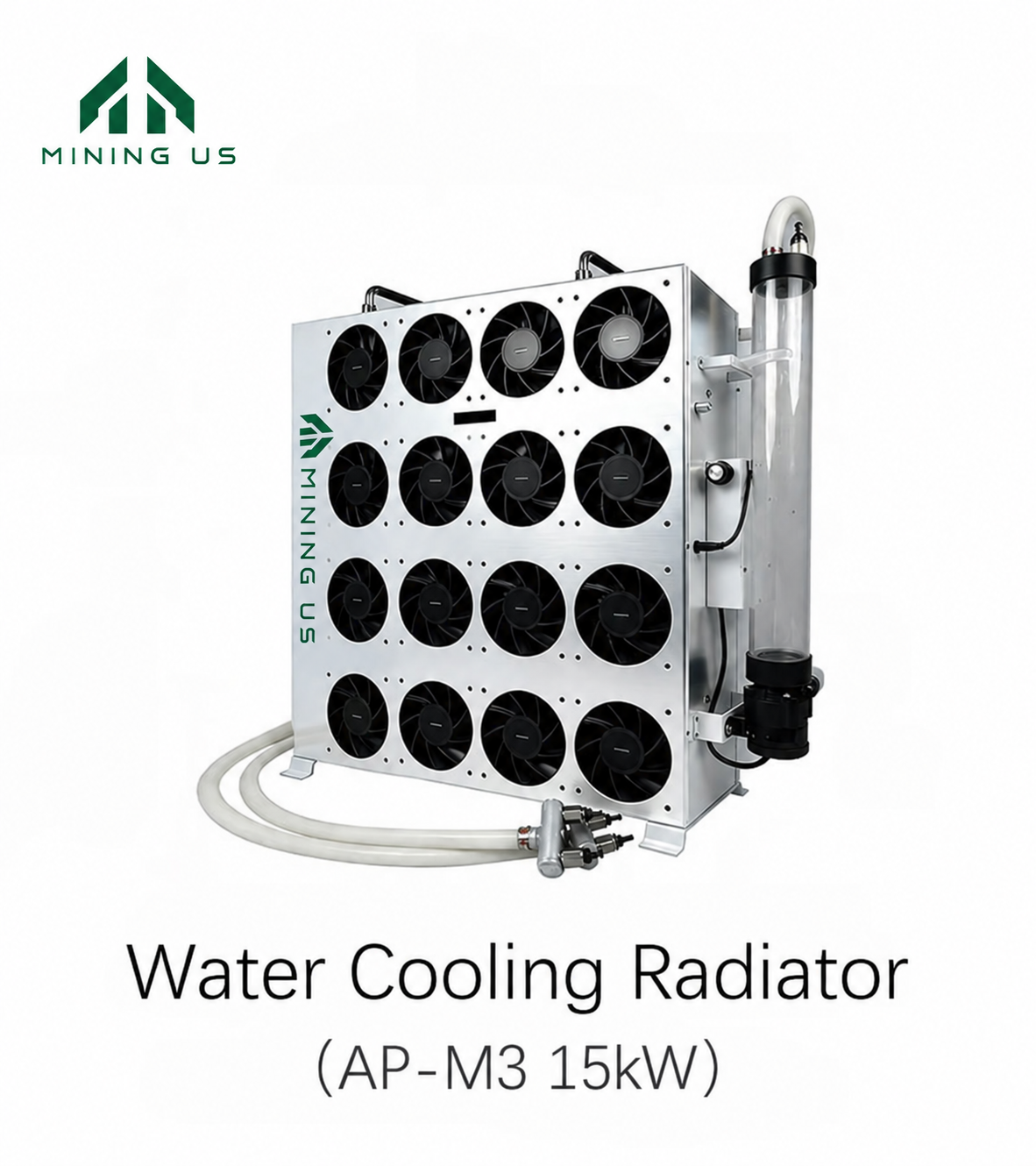

The AP-M3 combines a radiator, fans, reservoir and circulation pump in one hydro cooling assembly. It delivers up to 15 kW of cooling at 30°C ambient, with six temperature-control levels and adjustable coolant flow.

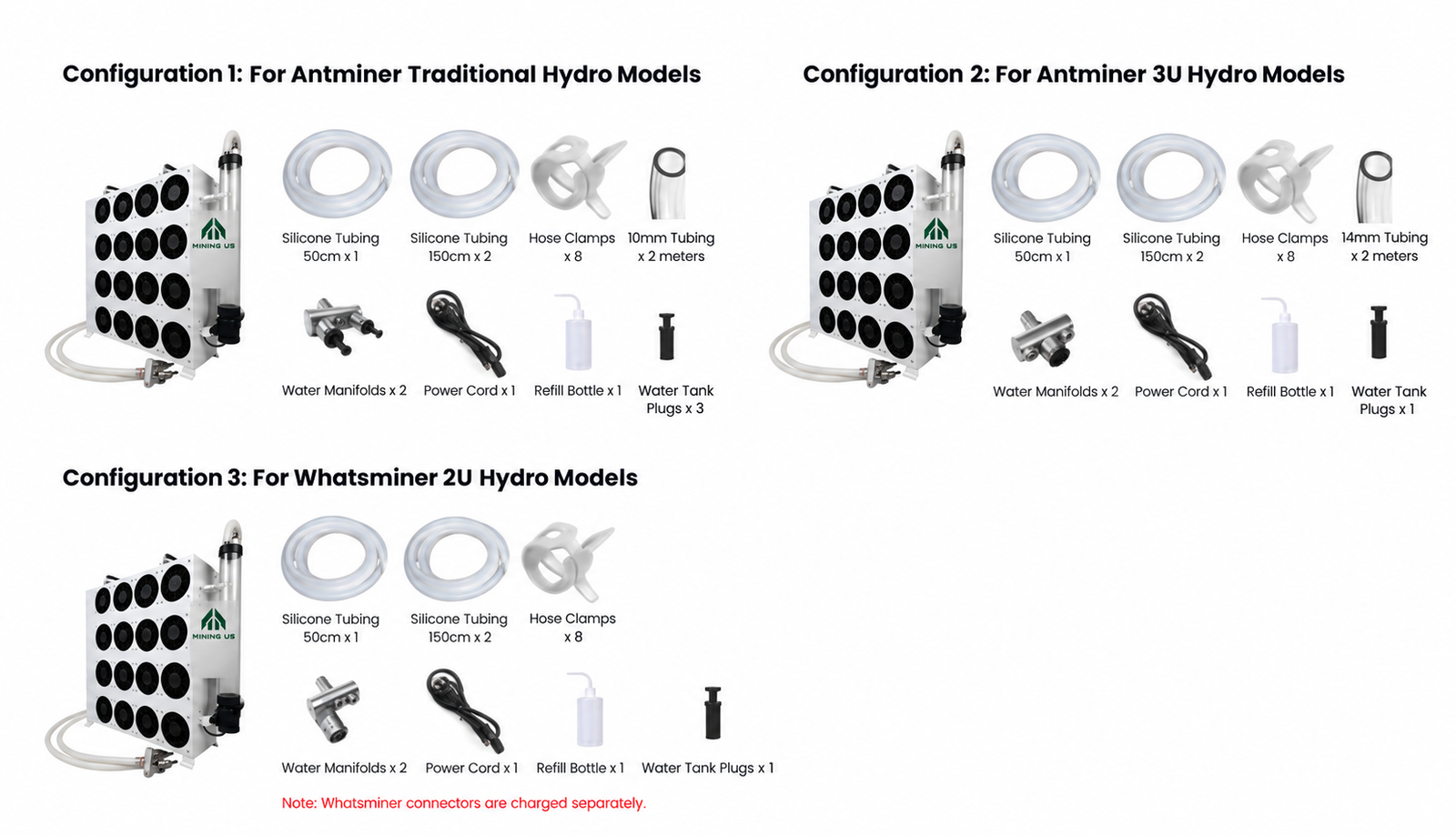

Compatible configurations
| Standard Antminer Hydro | One or two compatible units |
|---|---|
| Antminer 3U Hydro | One compatible unit |
| WhatsMiner 2U Hydro | One compatible unit; M73 / M79 listed |
Match the connectors and coolant requirements to the exact miner model. Keep the combined heat load within the radiator’s capacity for the actual ambient conditions.

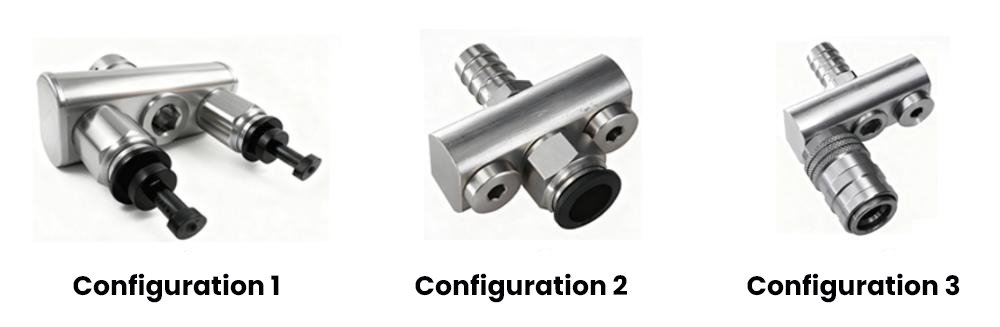

Whatsminer connectors are charged separately. Confirm the supplied connector configuration and accessories with your order.
Specifications
| Model | AP-M3 |
|---|---|
| Maximum external dimensions | 690 × 645 × 138 mm |
| Packaging dimensions | 790 × 270 × 725 mm |
| Net / gross weight | 23 / 25 kg |
| Water tank capacity | Approximately 7 L |
| Adjustable water flow | 8–16 L/min |
| Listed inlet water temperature difference | 10°C / 14°C |
| Inlet / outlet diameter | 14 mm; standard 13 × 18 mm silicone tube |
| Listed cooling liquids | Antifreeze, pure water or deionized water; use a liquid compatible with the miner |
| Power connection | 220 V; C14 appliance inlet, C13 power cord required |
| Cooling system power consumption | 500 W |
| Heat dissipation capacity | 15 kW at 30°C ambient |
| Maximum ambient temperature | 50°C |
| Operating noise | 20–75 dB |
| Fan speed range | 0–6000 RPM |
| Control | Six temperature-control levels; adjustable pump flow |
| Warranty | 1 Year Warranty |
The 50°C maximum ambient figure does not imply full 15 kW cooling at that temperature. Other configurations can be customized.
Core advantages
Integrated cooling
Radiator, fans and circulation pump in one assembly.
Adjustable operation
Set temperature-control levels and coolant flow to suit the installation.
Flexible connections
Connector configurations support several Hydro miner formats.
Shipping and setup
Liquid cooling equipment is generally shipped by sea. Confirm the delivery location and freight cost before ordering.
For help choosing the right connector configuration, contact MiningUS on Telegram or WhatsApp. Verify official contacts on our Authentication page.
Frequently asked questions
How many miners can the AP-M3 cool?
Up to two compatible standard Antminer Hydro units, one Antminer 3U Hydro or one WhatsMiner 2U Hydro, subject to total heat load and operating conditions.
What does the 15 kW rating mean?
The listed heat dissipation capacity is 15 kW at 30°C ambient. Cooling performance varies with ambient temperature and installation.
Can I adjust coolant flow?
Yes. The pump flow is adjustable from 8 to 16 L/min, and the radiator has six temperature-control levels.
Are Whatsminer connectors included?
The source configuration diagram states that Whatsminer connectors are charged separately. Confirm the required configuration and total cost with MiningUS.
Which coolant should I use?
The radiator lists antifreeze, pure water and deionized water. Choose a coolant that also meets your miner manufacturer’s requirements.
What warranty is provided?
The AP-M3 listing includes a 1 Year Warranty. Contact MiningUS for applicable service terms.
