Bitmain DCTANK AW1 120kW Sopport 376 Unit Classic Servers Air Cooling
$69,600.00
✓ 1 Year Warranty
DCTANK AW1 air-cooled system with 120kW IT load support and 376U rack capacity across eight 47U cabinets. Includes separate server and cooling modules, dual power inputs and environmental monitoring.

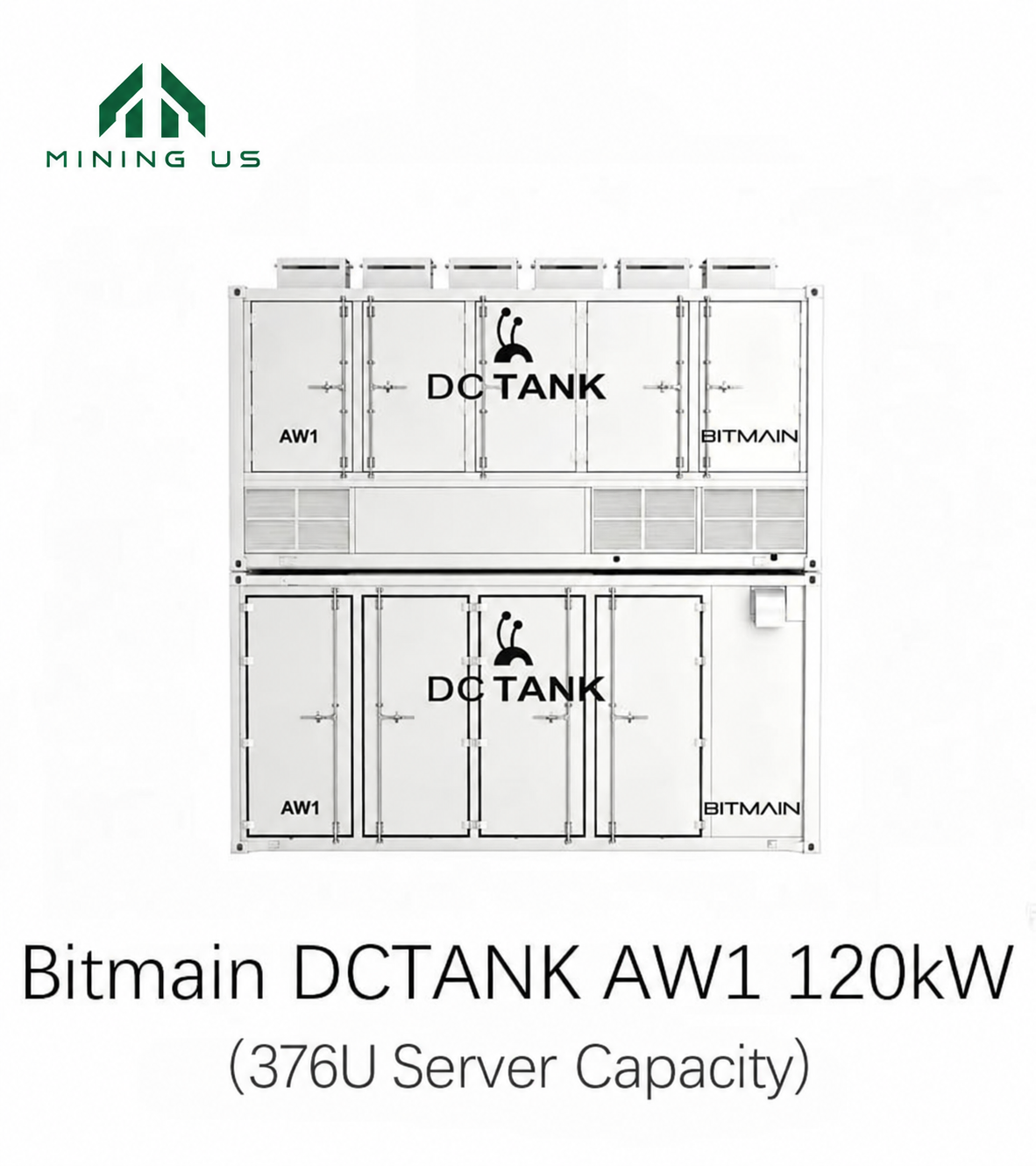

DCTANK AW1 Air-Cooled Infrastructure
Bitmain DCTANK AW1 combines a server container and cooling module for data centers, mining farms and classic server deployments. It provides 376U of rack space across eight 47U cabinets, with 15kW per cabinet and a total IT load of 120kW. Rack capacity is measured in U; the number of installed servers depends on each server’s height and power requirements.
The modular system uses matrix cooling cores and centrifugal fans, with upper/lower airflow and separate internal and external air circuits to reduce dust exposure. The supplier reports a PUE of 1.11 at 25°C ambient temperature.
Dual power inputs, redundant key components and monitoring of temperature, humidity and equipment status support continuous operation. Each server and cooling module measures 6058 × 2438 × 2896mm.
Server Container Specifications
| Model | DCTANK AW1 |
|---|---|
| Dimensions (l*w*h), mm | 6058×2438×2896 |
| Server capacity, U | 376 |
| Container certification | CCS |
| Safety certification | NFPA 79:2024 UL 508A:2018 R7.22 CSA C22.2 No. 301:23 ANSI/ISO 12100:2012 EN ISO 12100:2010 EN 60204-1:2018 |
| Input Voltage and Frequency | 400V±5% 50/60Hz |
| Total IT load, KW | 120 |
Detailed Characteristics
| Shipping weight, T | 4.6 |
|---|---|
| Main Switch of Power Distribution Cabinets(A) | 250×2 |
| Rated current, A | ≤405 |
| Number of server cabinets | 8 |
| Single cabinet capacity, U | 47 |
| Single cabinet power density, KW | 15 |
| Inlet cable | The incoming cable requires two three-phase, five-wire cables, each with the following requirements: L1 single core cable 350kcMil（185mm²） L2 single core cable 350kcMil（185mm²） L3 single core cable 350kcMil（185mm²） N Single-core cable 250kcMil（127mm²） PE single-core cable 250kcMil（127mm²） |
Cooling Tower Specifications
| Dimensions (l*w*h), mm | 6058×2438×2896 |
|---|---|
| PUE(Power usage effectiveness)@ 25℃ ambient temperature | 1.11 |
| Rated Cooling Capacity, kW | 120 |
| Container certification | CCS |
| Motor Rated Voltage and Frequency | AC 400V ±5%; 50/60Hz |
Detailed Characteristics
| Shipping Weight, T | 6.8 (manufacturer manual v1.0.7) |
|---|---|
| Operating Weight, T | 7.8 |
| Supply Air Temperature, ℃ | 25 |
| Return Air Temperature ,˚C | 38 |
| Water Consumption @ 25˚C, m3/h | 0.2 |
| Noise Level @ 25˚C, 15m, dBA | 75 |
| Operating temperature, °C | Outdoor: −35 to +40; indoor: 5 to 35 (manufacturer manual) |
| Operating humidity, RH | 20%–80% (manufacturer manual) |
Supplier-listed specifications and standards. The manufacturer’s v1.0.7 manual specifies 376U capacity, a 6.8t cooling-module shipping weight and the operating limits shown above; these take precedence over conflicting supplier prose and table entries. Site design must follow the manufacturer’s installation requirements.
Manufacturer Manual
Want to Explore Similar Mining Options?
| Models | Coins | Meilleur Price | Hashrate | Power | Electricity | Algorithm | ROI | Profit |
|---|---|---|---|---|---|---|---|---|
| Antminer S23 | BCH, BSV, BTC | $7,150.00 | 318Th/s | 3498W | 11.00J/TH | SHA-256 | 30 Mon | $ 7.92 /day |
| Antminer S21 XP | BCH, BSV, BTC | $3,105.00 | 270Th/s | 3650W | 13.52J/TH | SHA-256 | 18 Mon | $ 5.91 /day |
| Antminer S21 Pro+ | BCH, BTC | $1,685.00 – $1,985.00 | 234Th | 3510W | 15.00J/TH | SHA-256 | 12 Mon | $ 4.71 /day |
| Antminer S21++ | BCH, BSV, BTC | $1,318.00 – $1,504.00 | 235Th/s | 3878W | 16.50J/TH | SHA-256 | 10 Mon | $ 4.30 /day |
| Antminer S19k Pro | BCH, BSV, BTC | $435.00 – $435.00 | 120Th/s | 2760W | 23.00J/TH | SHA-256 | 12 Mon | $ 1.26 /day |
Supplier-listed estimates at the time of update; prices and profitability change.
