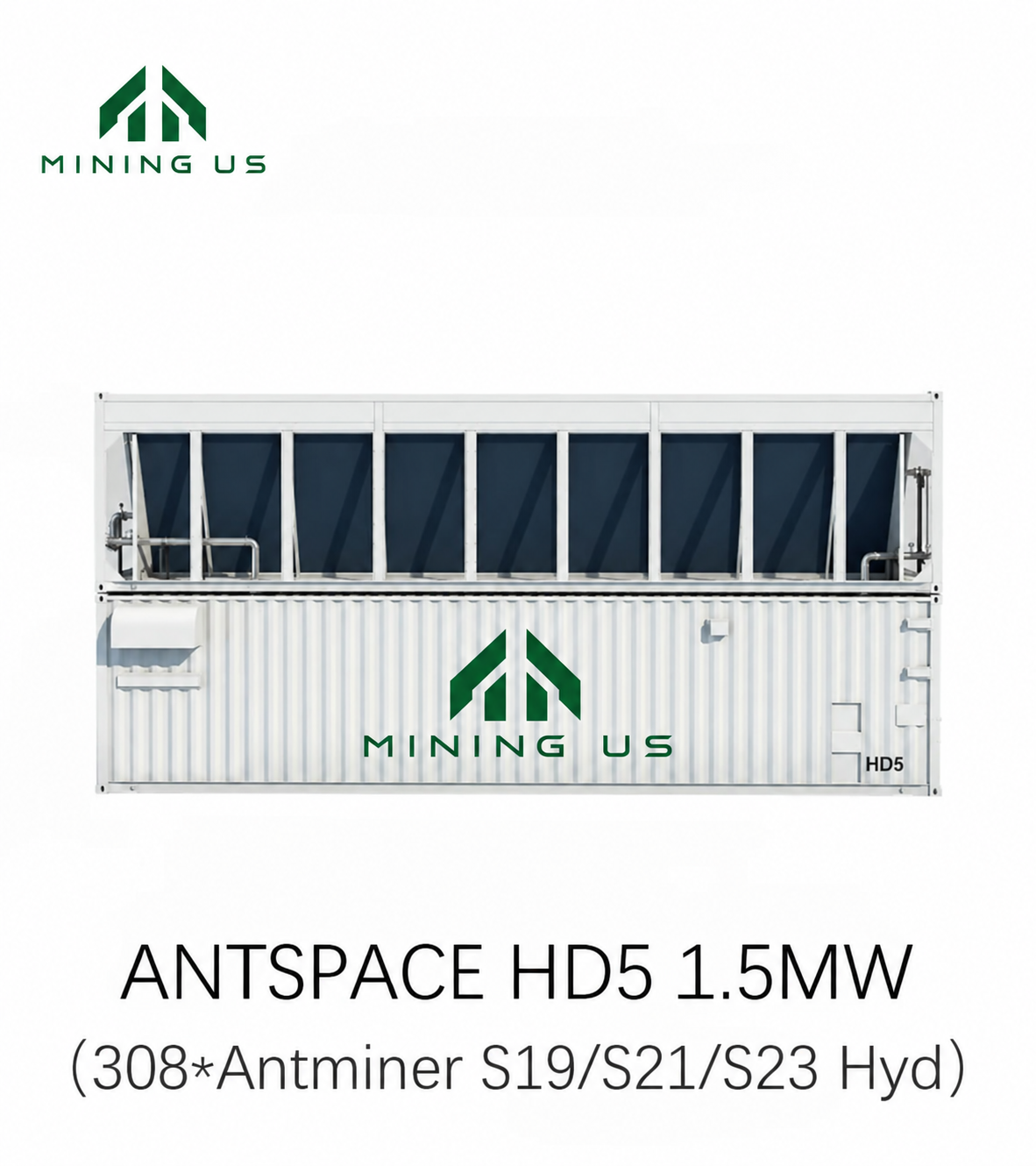

Bitmain ANTSPACE HD5 308-Slot 1.5MW 40HQ Hydro Cooling Container
$88,000.00
40ft HQ hydro-mining container with up to 308 rack spaces, 1.5 MW cooling capacity, an integrated dry-cooling package and independent A/B liquid-cooling loops. Designed for water-restricted sites.
ANTSPACE HD5 308-Slot 1.5MW Hydro Cooling Container
308 units
1,500 kW
40ft HQ
Hydro
Power input: 400 V ±5%, 50/60 Hz. Supplier-listed typical lead time: 45 days; sea-shipping arrangements depend on the destination.
Compatible Models
| Model | Hashrate / Efficiency | Slots | Full-load estimate |
|---|---|---|---|
| Antminer S19 XP+ Hyd | 293Th/s · 19 J/Th | 308 | $3,440.36/day |
| Antminer S19e XP Hyd | 251Th/s · 22 J/Th | 308 | $2,947.56/day |
| Antminer S21 XP Hydro | 473Th/s · 12 J/Th | 308 | $5,553.24/day |
| Antminer S21+ Hydro | 358Th/s · 15 J/Th | 308 | $4,204.20/day |
| Antminer S23 Hyd | 580Th/s · 9.5 J/Th | 308 | $6,809.88/day |
Supplier model and revenue estimates. Slot count does not override the cooling or electrical limits; permitted miner load depends on the selected configuration.
Product Description
The ANTSPACE HD5 packages a 308-slot hydro-mining container with a dry cooler for sites where water availability is limited. Two independent A/B liquid-cooling loops share a central control cabinet and support separate loop maintenance.
The closed-loop system is designed to minimize water consumption. Its detailed ratings distinguish 1,500 kW of heat dissipation, 1,512 kW rated power and up to 1,765 kW supported electrical input. The supplier lists a PUE of 1.021 at 25°C ambient; actual performance depends on climate, miner load and installation.
Core Advantages
- 308 installed rack spaces in a standard 40ft HQ footprint.
- Independent A/B hydraulic loops for maintenance flexibility.
- Dry cooling and a sealed coolant circuit for water-restricted sites.
- Centralized power distribution and coordinated multi-container deployment.
Full Specifications
| Model | ANTSPACE HD5 |
|---|---|
| External dimensions (L × W × H) | 12,192 × 2,438 × 2,896 mm |
| Internal dimensions | 12,000 × 2,230 × 2,660 mm |
| Listed weight | 11,000 kg |
| Installed capacity | 308 rack spaces |
| Distribution main switch capacity | 1,200 × 4 A |
| Rated power | 1,512 kW |
| Maximum supported input current | 700 × 4 A |
| Maximum supported input power | 1,765 kW |
| Maximum current per miner slot | 10 A |
| Heat dissipation capacity | 1,500 kW |
| Supply liquid temperature | 35 ±1°C at 30°C ambient |
| Flow rate 1 / 2 | 67.2 / 73.9 m³/h |
| PUE | 1.021 at 25°C ambient |
| Input voltage / frequency | 400 V ±5%, 50/60 Hz |
| Ambient temperature | −40 to 50°C |
| Ambient humidity | 10–90% RH |
| Altitude | ≤2,000 m |
| Supplier-listed safety standards | NFPA 79:2021; UL 508A:2018 R8.21; CSA C22.2 No.14-18; ANSI/ISO 12100:2012; IEC 60204 Ed.5.1 2009 |
Certification Standards
The supplier states that its products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Certification statements are supplier claims. Applicable certificates and configuration scope should be confirmed for the project.
Recommended Power Setup
| 1 × HD5 container | 2,550 kVA three-phase pad-mounted transformer |
|---|---|
| 2 × HD5 containers | 3,750 kVA three-phase pad-mounted transformer |
These are supplier recommendations; final transformer sizing depends on the site, selected miner loads and local electrical requirements.
Complete Cooling Solutions
| Container | Cooling capacity | Miner slots | Dimensions (L × W × H) | Application |
|---|---|---|---|---|
| 210-Slot Antminer Hydro Cooling Container | 1.2 MW | 210 | 12,192 × 2,438 × 2,896 mm | Commercial-scale mining |
| 308-Slot Antminer Hydro Cooling Container | 1.5 MW | 308 | 12,192 × 2,438 × 2,896 mm | Mid-to-large operations |
| 420-Slot Antminer Hydro Cooling Container | 2 MW | 420 | 12,192 × 2,438 × 2,896 mm | Industrial-scale projects |
| 480-Slot Antminer Hydro Cooling Container | 2.6 MW | 480 | 12,192 × 2,438 × 2,896 mm | Mega-scale mining facilities |
Real Results from Real Miners
Project photographs and figures below are supplied by the distributor and are not independently verified MiningUS results.

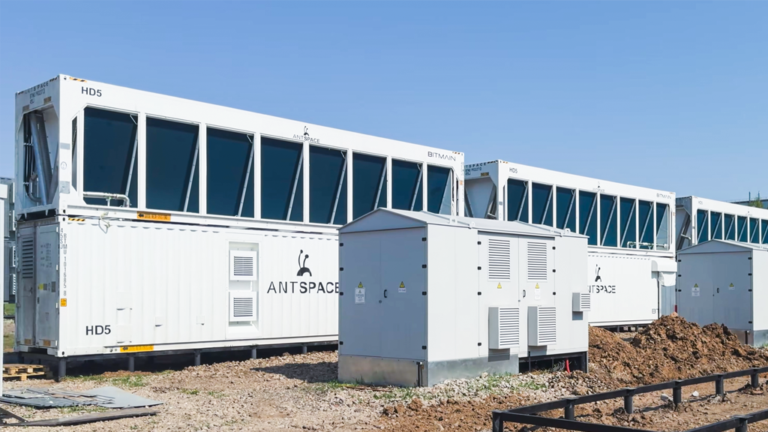

Phoenix, United States — 12 × 1.5 MW Hydro Project
The supplier describes dry-cooling operation in an arid region, reporting +30% footprint efficiency, −20% cooling power draw and $1.1 million annual savings.

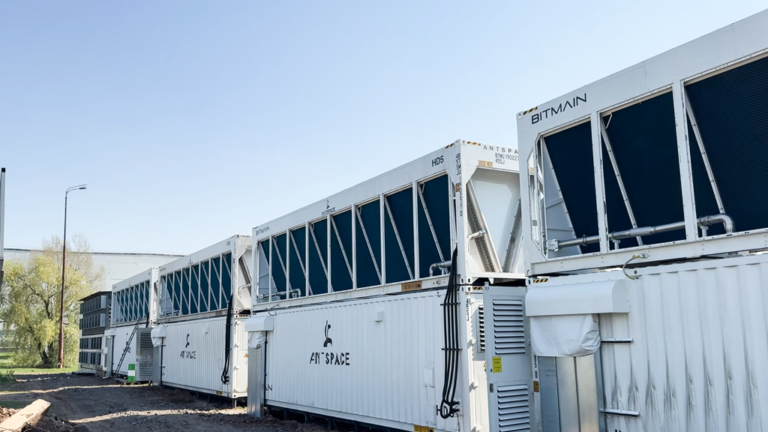

Muscat, Oman — 16 × 1.5 MW Hydro Project
The supplier highlights independent cooling loops and reports +100% loop redundancy, −50% setup duration and 99.9% system reliability. Results depend on project conditions and do not guarantee future performance.
| Capacity | 308 slots / 1.5 MW |
|---|
