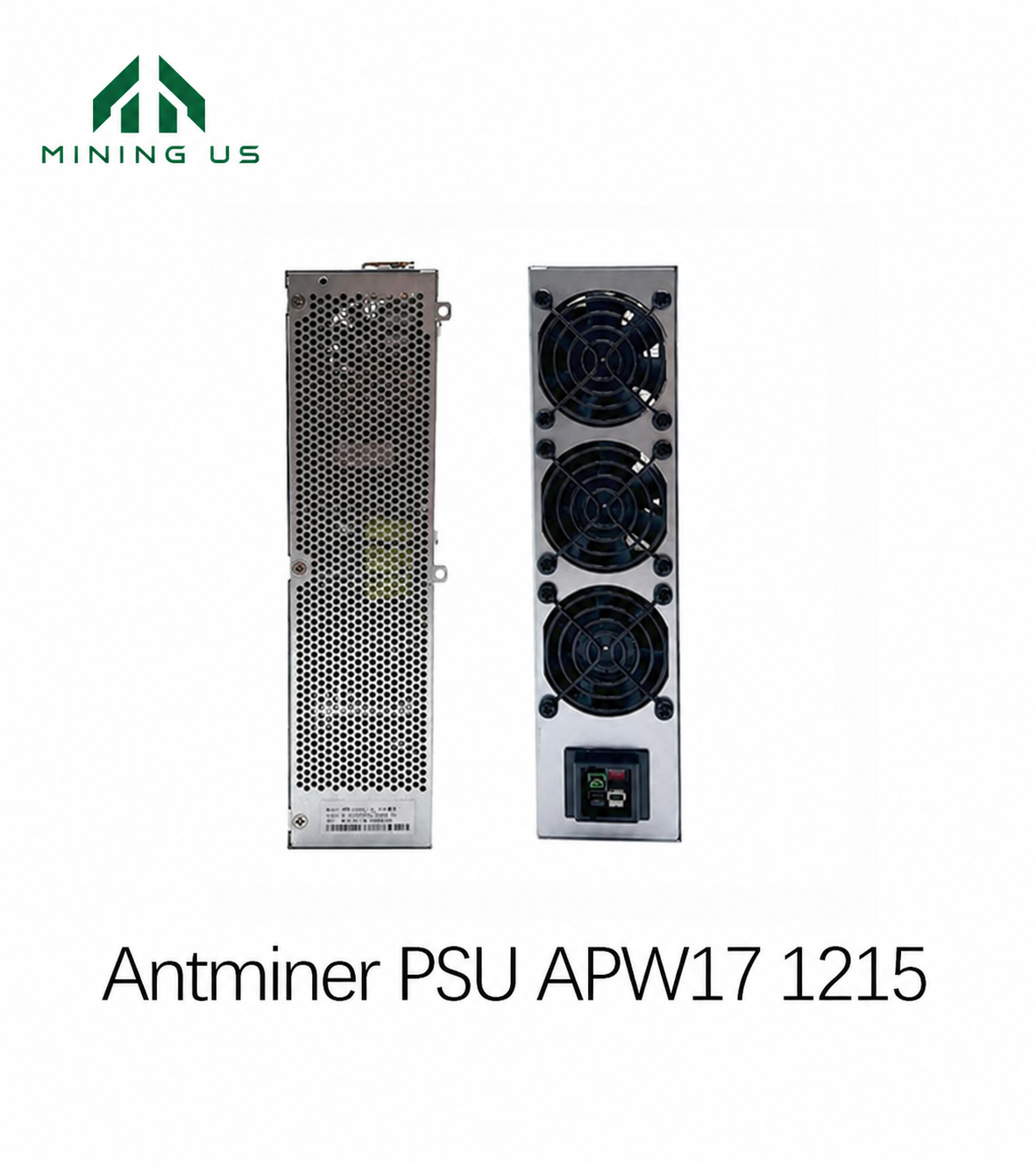

Antminer APW17 1215 Power Supply
Price range: $300.00 through $330.00
✓ Manufacturer Warranty
Antminer APW17 1215 power supply with a 12–15V main output for compatible air-cooled miners. Choose revision a or c for your exact miner model. Requires a compatible C20-to-P13 four-pin power cord.
Product Description
The Bitmain Antminer APW17 1215 power supply delivers a 12–15V main output for compatible air-cooled miners. Match the PSU revision to your miner using the table below.
Revision Compatibility
| APW17 1215a | S21, S19j XP, KS5, KS5 Pro, AL1, AL1 Pro, L9 |
|---|---|
| APW17 1215c | S21 XP, S21 Pro |
Available configurations are APW17 1215a and APW17 1215c. The supplier also mentions revision b in its overview, but does not offer it as a selectable configuration or provide its compatibility table.
Electrical and Physical Specifications
| Main output voltage | 12–15V DC |
|---|---|
| Main output rated current at 220V input | 267A |
| Main output ripple / line regulation / load regulation | Each <1% |
| Main output setup time | <14 seconds |
| Main output short-circuit protection time | >10 milliseconds |
| Secondary output voltage | 12.3V DC |
| Secondary output rated current at 220V input | 18A |
| Secondary output ripple / line regulation / load regulation | Each <1% |
| Secondary output voltage accuracy | 12.2–12.4V |
| Secondary output setup time | <10 seconds |
| Secondary output short-circuit protection time | >10 milliseconds |
| AC input | 220–277V, 50/60Hz |
| Power factor at full load | >0.99 |
| Leakage current at 220V / 50Hz | <4mA |
| Input undervoltage protection | 185–195V AC |
| Output short-circuit and overheat protection | Yes |
| Output overcurrent protection | 280–402A; threshold varies with voltage |
| Operating temperature | −20 to 40°C |
| Operating humidity | 20–90% RH, non-condensing |
| Altitude | <2,000m |
| Dimensions | 254.6 × 251.6 × 63mm |
| Net weight | 3.9kg |
| Cooling | Forced air |
| Noise | 45dBA |
Power Connection
The APW17 uses a different interface from the APW12 and requires a compatible C20-to-P13 four-pin power cord. Rated AC input is 220–277V, 50/60Hz. Confirm the exact miner revision and power connection with MiningUS before ordering.
Want to Explore Similar Mining Options?
| Models | Coins | Meilleur Price | Hashrate | Power | Electricity | Algorithm | ROI | Profit |
|---|---|---|---|---|---|---|---|---|
| Antminer S21 XP | BCH, BSV, BTC | $3,480.00 | 270Th/s | 3650W | 13.52J/TH | SHA-256 | 20 Mon | $ 5.91 /day |
| Antminer S21 Pro+ | BCH, BTC | $1,760.00 – $2,045.00 | 234Th | 3510W | 15.00J/TH | SHA-256 | 12 Mon | $ 4.71 /day |
| Antminer L9 | DOGE, LTC, BEL | $2,575.00 – $2,900.00 | 16Gh/s | 3360W | 210.00J/GH | Scrypt | 24 Mon | $ 3.54 /day |
| Antminer KS5 Pro | KAS, SDR | $900.00 | 21Th/s | 3150W | 150.00J/TH | KHeavyHash | 167 Mon | $ 0.18 /day |
| Antminer AL1 Pro | ALPH, DCR | $9,999.00 | 16.6 Th/s | 3730W | 224.70J/TH | Blake3 | Never | $ -0.25 /day |
Supplier-listed estimates at the time of update; prices and profitability change.
| Specification | APW17 1215a, APW17 1215c |
|---|
