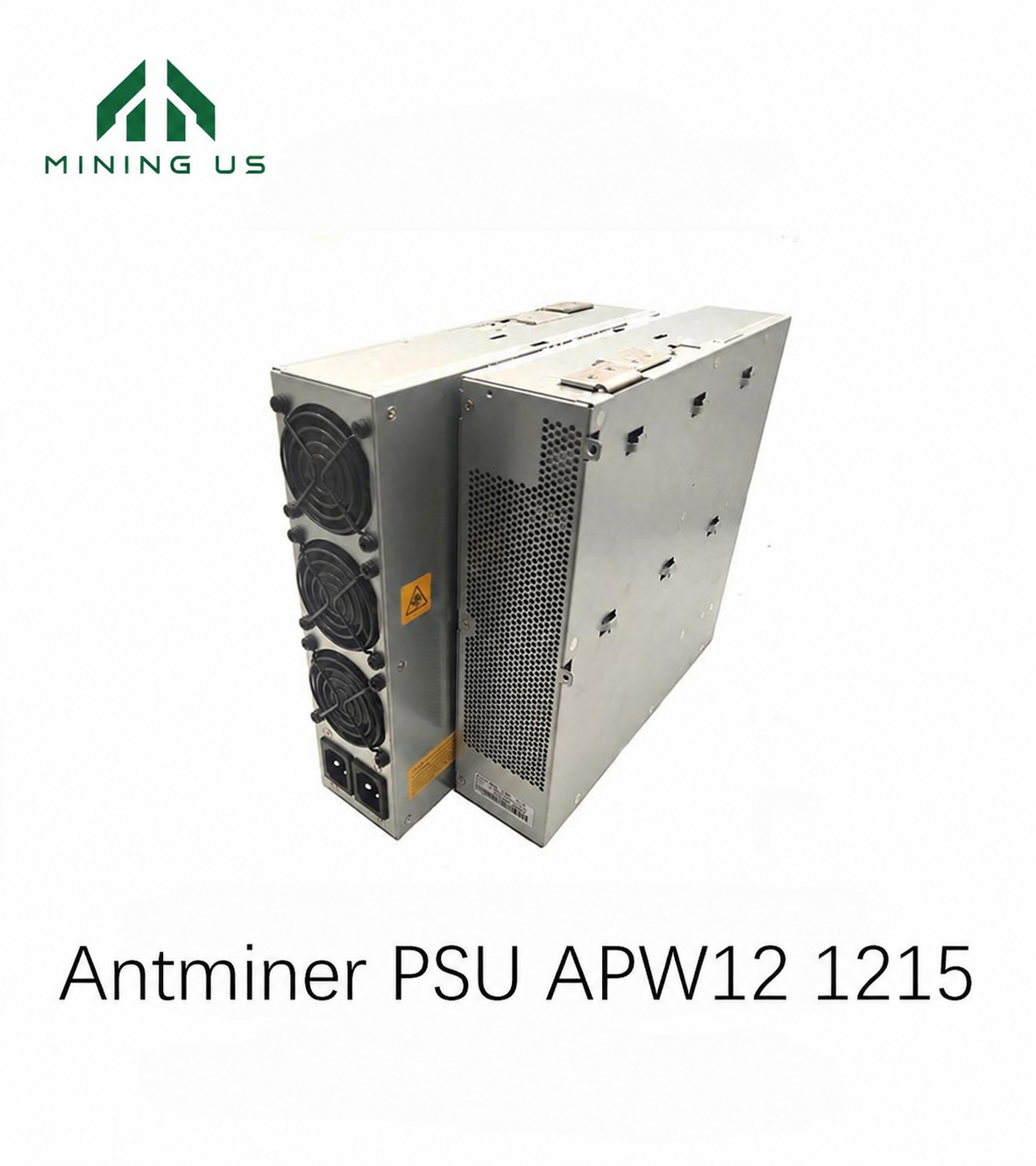

Antminer APW12 1215 Power Supply
$135.00
✓ Manufacturer Warranty
Antminer APW12 1215 power supply with 12–15V main output for compatible air-cooled miners. Select the correct a–g revision using the compatibility table.
Product Description
The Antminer APW12 1215 power supply provides an adjustable 12–15V main output for compatible air-cooled mining hardware. The supplier offers revisions a through g; match the revision to the exact miner model before replacement.
Revision Compatibility
| APW12 1215a | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, EP Pro |
|---|---|
| APW12 1215b | S19, S19j, S19 Pro, S19j Pro, S19a Pro, S19a, S19i, T19, D7, E9, E11, EP Pro |
| APW12 1215c | S19, S19j, S19j+, S19 Pro, S19j Pro, S19a, T19, D7, E9, E11 |
| APW12 1215d | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP |
| APW12 1215e | Antminer S19 Pro, S19j Pro, S19XP |
| APW12 1215f | S19, S19 Pro, S19j Pro, S19j Pro+, S19XP, S19K Pro |
| APW12 1215g | Antminer S19 Pro-A |
The compatibility list is supplied by the vendor. Confirm the miner version and PSU revision with MiningUS before ordering.
Electrical and Physical Specifications
| OUT1 — DC Voltage | 12V – 15V |
|---|---|
| OUT1 — Rated Current (220V input) | 233A |
| OUT1 — Ripple & Noise | <1% |
| OUT1 — Line Regulation | <1% |
| OUT1 — Load Regulation | <1% |
| OUT1 — Setup Time | <2S |
| OUT1 — Short Circuit Protection | >10mS |
| OUT2 — DC Voltage | 12.3V |
| OUT2 — Rated Current (220V input) | 15A |
| OUT2 — Ripple & Noise | <1% |
| OUT2 — Voltage Accuracy | 12.2V – 12.4V |
| OUT2 — Line Regulation | <1% |
| OUT2 — Load Regulation | <1% |
| OUT2 — Setup Time | <2S |
| OUT2 — Short Circuit Protection | >10mS |
| Input — Voltage Range | 200 – 240V AC |
| Input — Frequency Range | 47 – 63Hz |
| Input — Power Factor | >0.99 (full load) |
| Input — Leakage Current | <1.5mA (220V 50Hz) |
| Protection — Low-voltage Input | 80 – 89V AC |
| Protection — Output Short Circuit | Yes |
| Protection — Overheat Protection | Yes |
| Protection — Over-current Output | 291A – 350A |
| Protection — | (protection value varies under different voltage) |
| Environment — Operating Temperature | -20 – 45℃ |
| Environment — Operating Humidity | 20% – 90%RH (non-condensing) |
| Environment — Altitude | < 2000m |
| Structure — Dimensions | 254.6mm * 251.6mm * 63mm |
| Structure — Net Weight | 3.6KG |
| Structure — Cooling System | forced‐air cooling |
| Structure — Noise | 45dBA |
Power Connection
The rated input range is 200–240V AC. Confirm the power-cord connector and local installation requirements for the selected revision.
