96-Slot Natural Gas Generator Hydro Cooling Container for Antminer Hydro
$185,000.00
✓ 1 Year Warranty
AP-50Hyd container with two 250kW natural-gas generators, 96 Antminer Hydro mining slots, integrated networking and ventilation, and two micro-channel dry coolers. Combined continuous generator output: 500kW.

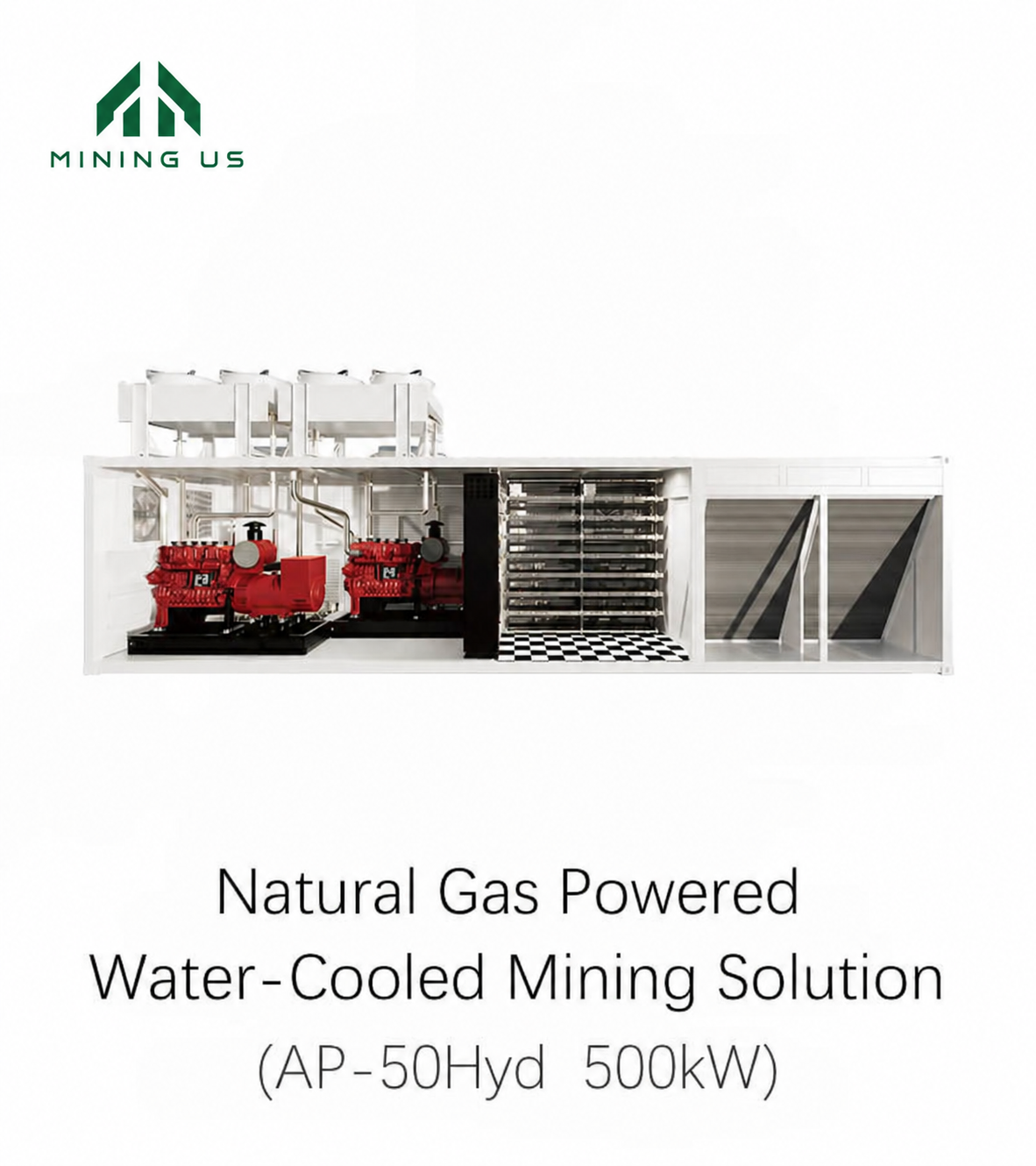

AP-50Hyd: Natural Gas-Powered Water-Cooled Mining Solution

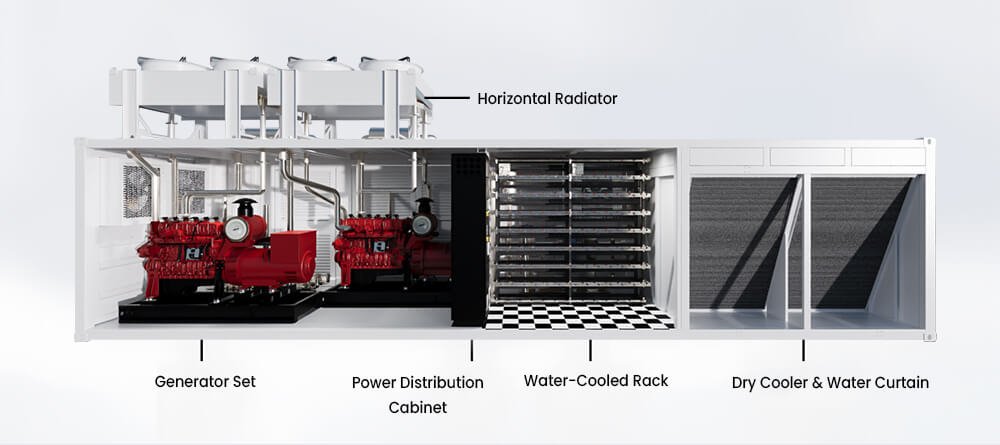

The AP-50Hyd combines two 250kW natural-gas generator modules with 96 Antminer Hydro mining slots, integrated networking, ventilation and micro-channel dry coolers. The modular installation combines on-site generation and liquid cooling for mining deployments.
| Number of machines | 96 |
|---|---|
| Continuous Power | 250kW x 2 |
| Standby Power | 300kW x 2 |
| Frequency | 50/60 Hz |
| Voltage | 400V/480V |
| Fuel | Natural Gas / Associated Gas / Coal Mine Gas / Biogas |
Key Features
- Two AP-25 250kW generator modules provide 500kW combined continuous power.
- 96 hydro miner positions with integrated power distribution and networking.
- Two micro-channel dry coolers; the supplier overview describes 500kW thermal capacity.

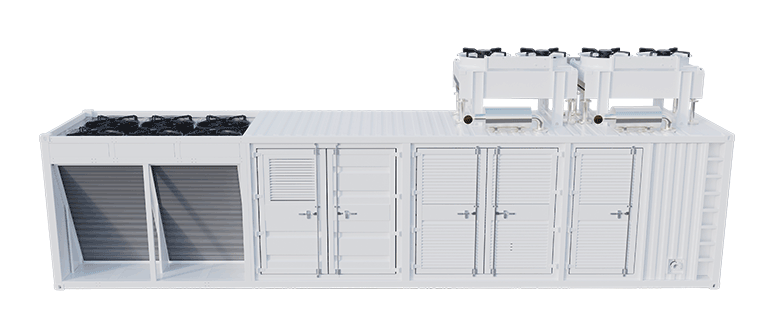

- 40HQ modular enclosure for deployment and expansion.
Specifications
Supplier specification differences: The overview lists standby power at 300kW × 2, while its graphic says emergency power 250kW × 2. Cooling is stated as 500kW in the overview and 550kW in the detailed table. The 630kW maximum load is a separate equipment rating, not the 500kW continuous generator output. Confirm the final configuration and operating conditions before site design.
AP-50Hyd Container
| Size | 12192*2438*2896（L*W*Hmm,±5mm) |
|---|---|
| Rack | 8 Rows and 12 Columns Per Group |
| Input Voltage | Three-phase 380-480V 50/60Hz |
| Continuous power | 500kW total from overview; detailed supplier row incorrectly repeats a voltage |
| Max Power Load | 630 kW |
| Ambient Temperature | -25°C~35°C |
| Capacity | 96units Antminer Hydro Miners(Support Customization) |
| Network | 5*100M 24*bps Ethernet Switch |
| Cooling System | Hydro Cooling |
| Inlet and Outlet Temp | 50/60°C |
| Input Voltage | Three-phase 350-480V 50/60Hz |
| Output Voltage | Three-phase 350-480V 50/60Hz |
| Certification | ETL (supplier statement) |
| Cooling Capacity | 550kW (-30°-45°) |
| Input Voltage | Three-phase 350-480V 50Hz/60Hz |
| Power Consumption | 3kW *6 |
| Noise | <99dB(A)@10m |
The source lists 380–480V input in one row and 350–480V in other rows, plus different temperature ranges for the container and cooler. Network notation is reproduced as supplied; verify port counts and link speed for the final build.
Generator Set
| Engine Brand | Geely |
|---|---|
| Engine Model | AP-25 |
| Number of Cylinders | 6 |
| Bore/Stroke | 129×165 mm |
| Displacement | 12.94 L |
| Compression Ratio | 10.5:1 |
| Rated Speed | 1500/1800 r/min |
| Intake Type | Turbocharged and Intercooled |
| Cooling Method | Closed-loop forced water cooling |
| Lubrication Method | Pressurized and splash lubrication |
| Oil Pressure | 2.5 bar–5.8 bar |
| Oil Temperature | ≤105°C |
| Oil Capacity | 32 L |
| Firing Order | 1-5-3-6-2-4 |
| Crankshaft Rotation | Counterclockwise |
| Fuel Intake Pressure | 5 kPa |
Engine and Electrical System
| Brand | Geely |
|---|---|
| Model | HMT13F.408 30 |
| Continuous Power | 250KW |
| Rated Current | 450A |
| Rated Frequency | 50/60Hz |
| Power Factor | 0.8 |
| Starting Method | DC 24V Electric Start |
| Speed Control Method | Electronic Speed Control |
| Fuel Control Method | Lean Burn, Closed-Loop Control |
| Ignition Method | High-Voltage Spark Plug Ignition |
| Generator Set Operation Mode | One-Key Auto Start |
| Oil Consumption Rate | ≤0.3g/kWh |
| Noise | 10 meters ≤ 101 dB(A) |
| NOx Emissions | 1.347g/kWh |
| Electrical Efficiency | 35% |
| Thermal Efficiency | 47% |
| Electrical certification | ETL (supplier statement) |
| Generator Set Dimensions | 3100X1330X1590mm |
| Generator Set Weight | 3140kg |
| Number of Phases and Connection Method | Three-Phase Four-Wire, Star Connection |
| Cooling Method | Pen-type Circulating Forced Water Cooling |
| Air Source Inlet Pressure | 0.4Mpa |
| Air Source Outlet Pressure | 5-10Kpa |
Supplier Deployment Examples
Project photographs and figures shown on the supplier’s page. These are supplier examples, not independently verified MiningUS customer installations.

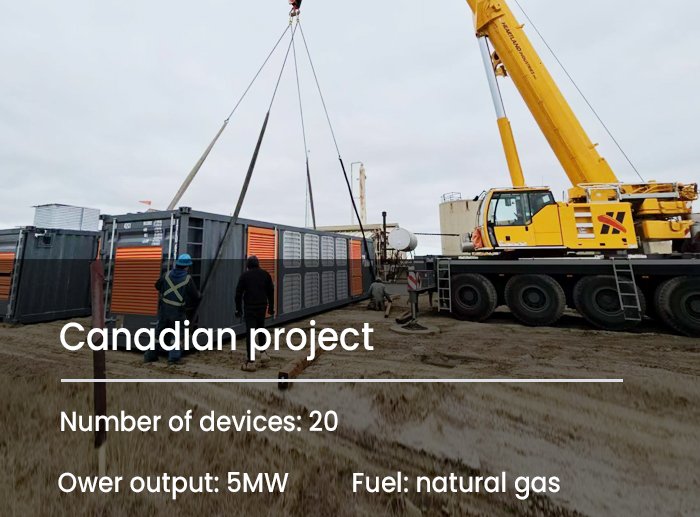

Canadian project
20 devices · 5MW · Natural gas

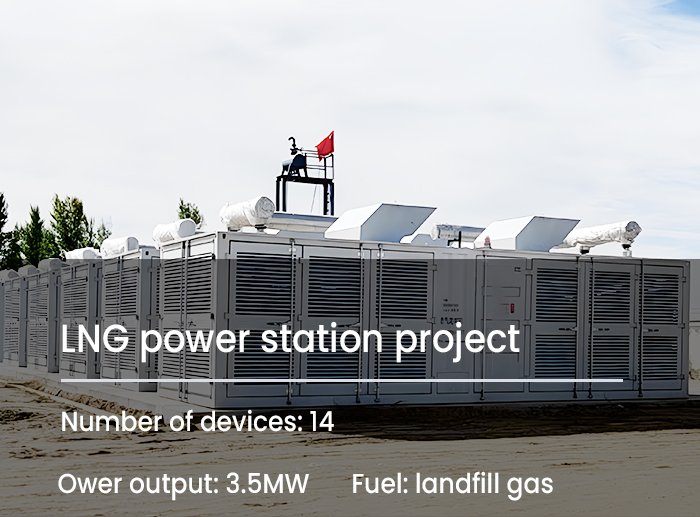

LNG power station project
14 devices · 3.5MW · Landfill gas, as labeled by the supplier

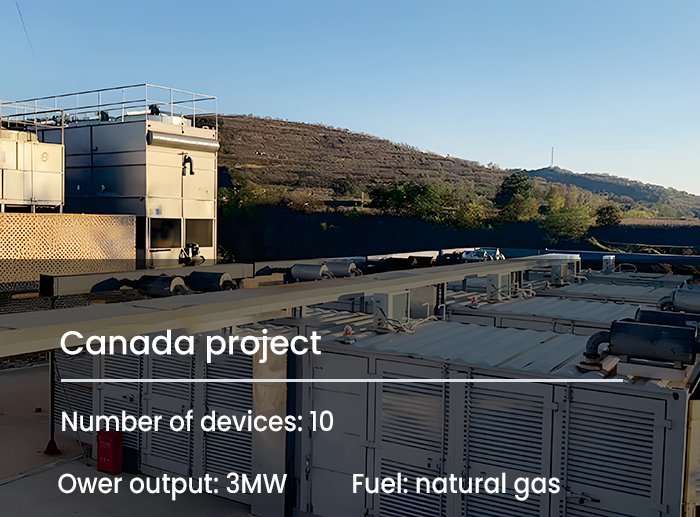

Canada project
10 devices · 3MW · Natural gas

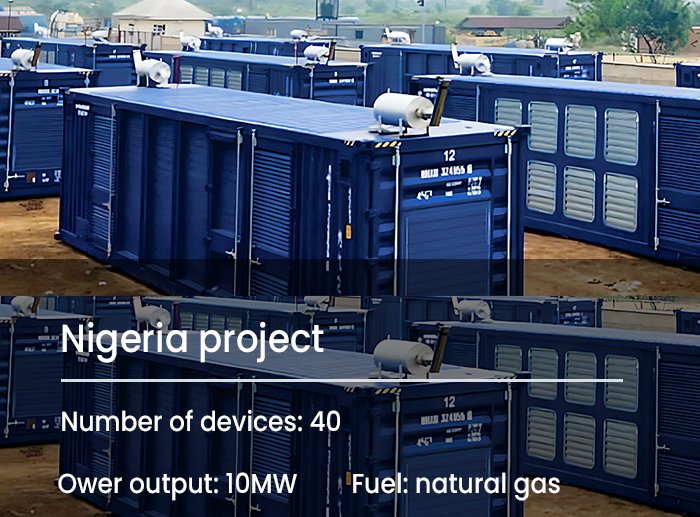

Nigeria project
40 devices · 10MW · Natural gas
Shipping and Configuration
Liquid-cooling equipment is generally transported by sea freight. Contact MiningUS with the destination and site requirements to confirm configuration and shipping charges.
Want to Explore Similar Mining Options?
| Models | Coins | Meilleur Price | Hashrate | Power | Electricity | Algorithm | ROI | Profit |
|---|---|---|---|---|---|---|---|---|
| Antminer S21 XP Hydro | BCH, BSV, BTC | $6,140.00 | 473Th/s | 5670W | 11.99J/TH | SHA-256 | 18 Mon | $ 11.32 /day |
| Antminer S21+ Hydro | BCH, BSV, BTC | $2,195.00 – $2,645.00 | 358Th/s | 5370W | 15.00J/TH | SHA-256 | 10 Mon | $ 7.27 /day |
| Antminer S19 XP Hyd. | BCH, BSV, BTC | $1,284.00 | 257Th/s | 5304W | 20.64J/TH | SHA-256 | 12 Mon | $ 3.48 /day |
| Antminer S19e XP Hyd | BCH, BSV, BTC | $750.00 | 251Th/s | 5522W | 22.00J/TH | SHA-256 | 8 Mon | $ 2.99 /day |
Supplier-listed mining estimates at the time of update; profitability and prices change.
