288-Slots Air Cooling Mining Container 40FT
✓ 1 Year Warranty
40FT air-cooling mining container for up to 288 compatible ASIC miners, with integrated power distribution, networking and directional ventilation. Contact MiningUS for pricing and a confirmed configuration.
Complete your order and payment first. Immediately after payment, visit our Order Customization page and submit your requirements.

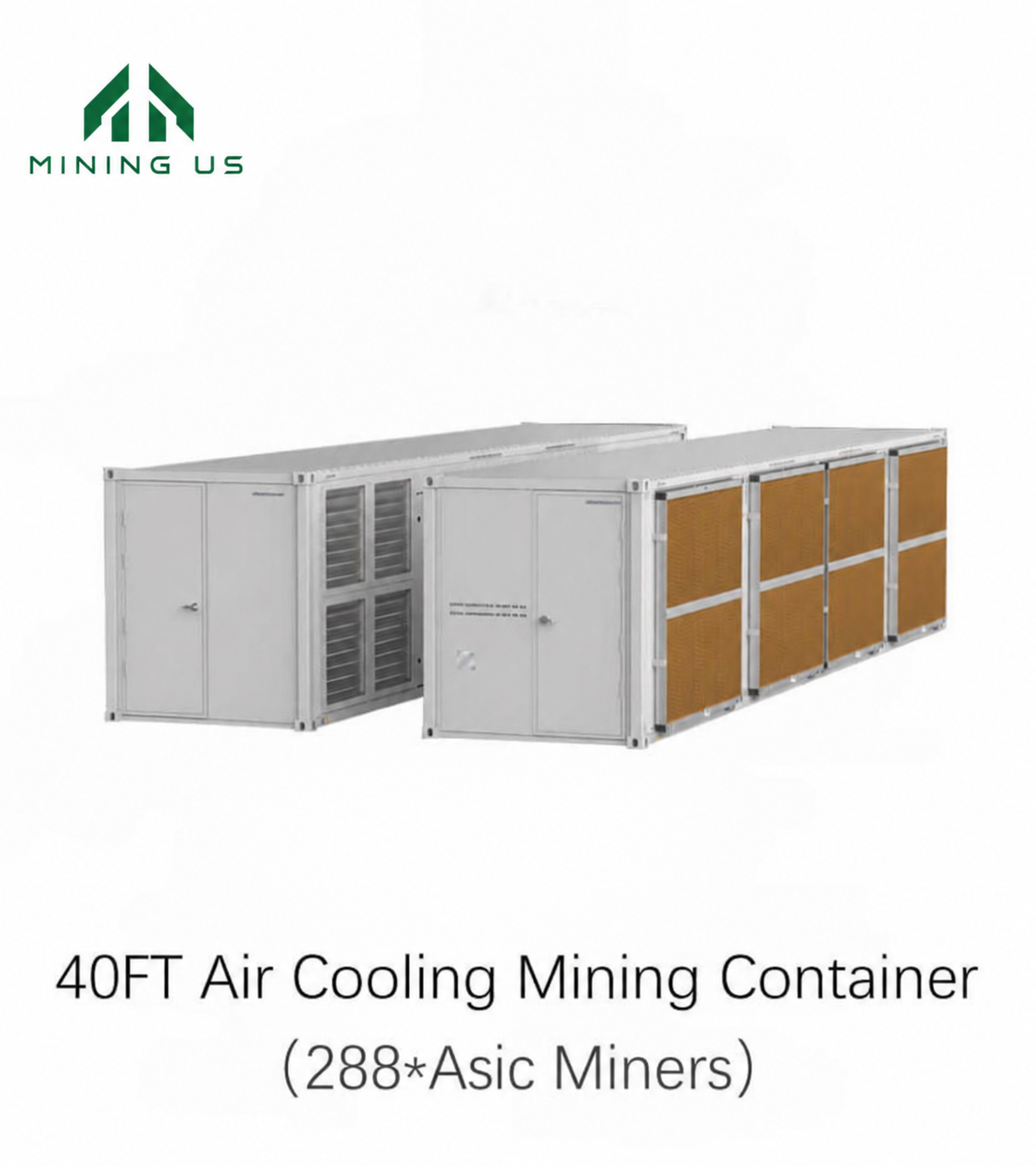

288-Slot 40FT Air Cooling Mining Container

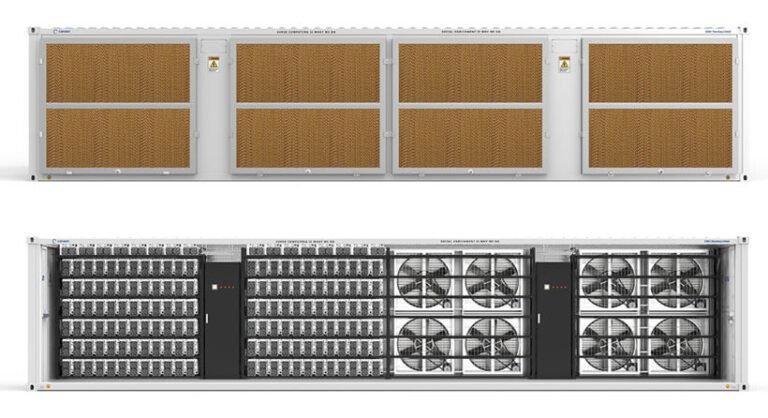

A prefabricated air-cooling container for large mining installations, supporting up to 288 compatible air-cooled miners. Directional airflow, integrated power distribution and centralized controls organize the mining rows for continuous operation.
The modular design supports transport, on-site combination and expansion. Final miner layout and electrical requirements must be confirmed for the selected equipment.
Product Details
Key Features
Air Cooling
Directional ventilation channels move heat away from the mining rows.
Factory Prefabrication
Workshop assembly supports consistent production and faster site deployment.
Electrical Distribution
Industrial power distribution and organized wiring support the configured miner load.

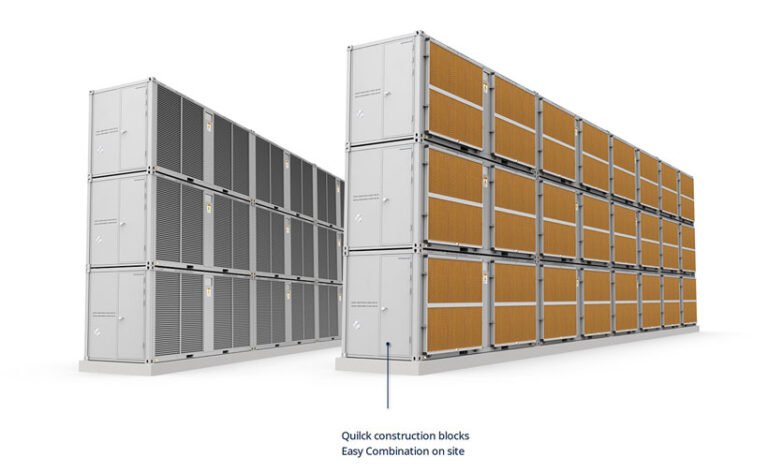

Modular Expansion
Container modules can be combined and arranged for larger installations, subject to the site design.
Internal Structure and Electrical System

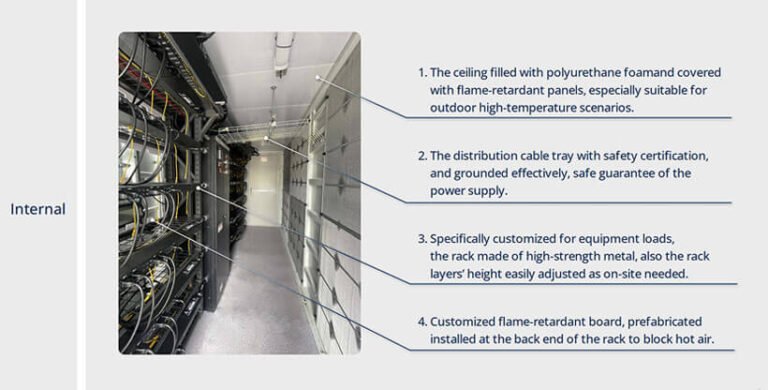

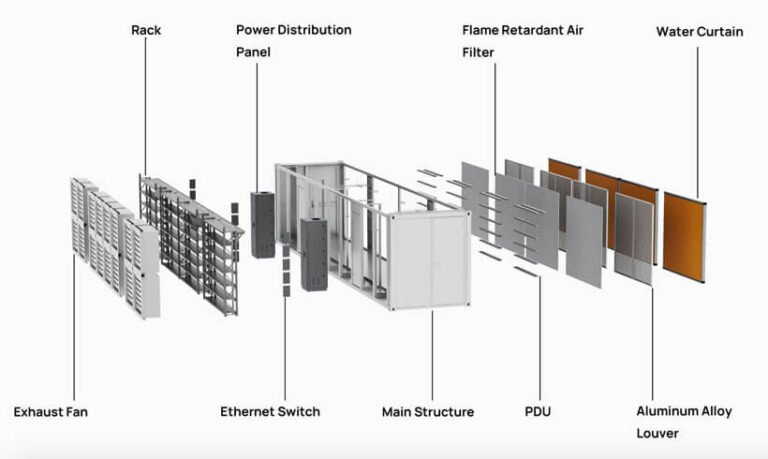

Supplier diagrams show insulated, flame-retardant ceiling panels, grounded cable trays, adjustable rack heights and separation panels behind the mining racks.

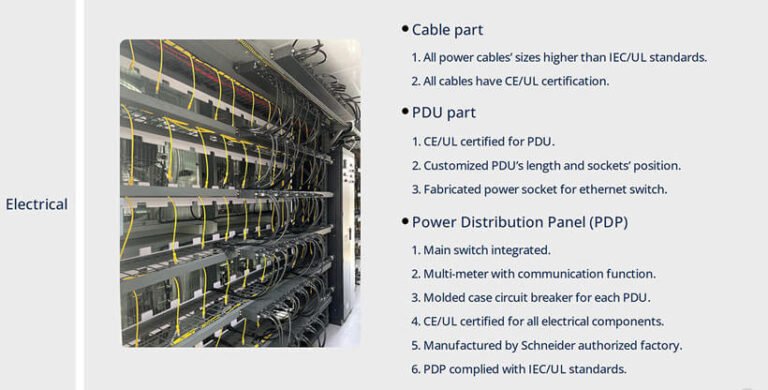

The supplier describes integrated main switching, communication-enabled metering, circuit protection for each PDU, customized socket positions and component certifications. Confirm documentation for the supplied configuration.
Specification
| Type | Air-cooling Mining Box-40ft |
|---|---|
| Cooling Method | Air Cooling |
| Miner Capacity* | 288 units (Maximum) |

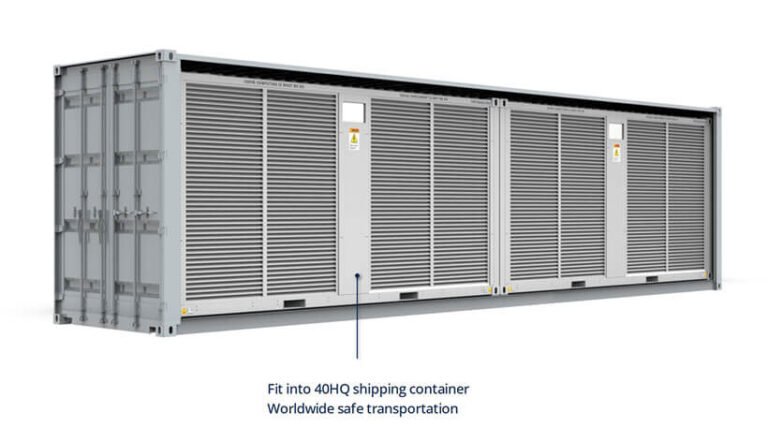

| Transportation | Container shipping |
| Safety Standard | IEC/UL/CSA |
| Input Voltage and Frequency | 380V~415V, AC, 50Hz (A, B, C, N, PE) |
| Power Capacity for Miners | 1400 kW@25℃(Avalon Miner) |
| Maximum Power@Single Position | 4.5 kW |
| Container Dimensions | 11900 x 2255 x 2555 (L x W x H) (mm) |
| Power Distribution Cabinet* | 1600A x 2 sets |
| PDU* | 80A，20A x 12 sets |
| Switch and Network Cable | Integrated Terminal Switches and Network Cable |
| Tare Weight | 5 T |
| Payload Weight | 5 T |
| Noise | ≤60 dB(A) |
Supplier power figures require confirmation: the table lists 1400kW at 25°C for Avalon miners, while 288 positions at the stated 4.5kW maximum total 1296kW. Do not treat these figures as interchangeable operating limits. The source gives no measurement conditions for its noise figure.
Specifications marked with an asterisk may be adapted to customer requirements.
1 Year Warranty
The supplier lists a one-year warranty. Contact MiningUS for applicable warranty terms and support.
Shipping and Quotation
Contact MiningUS for a quotation, destination-specific freight costs and configuration details before ordering.
| Specification | 40FT Air Cooling Mining Container — up to 288 miners |
|---|---|
| Input Power | 380–415V AC, 50Hz (A, B, C, N, PE) |
Delivery costs shown before payment
Enter your complete delivery address at checkout to see available shipping services and charges. Shipping is separate from the product price unless expressly included. A missing rate does not mean free delivery.
Miners and spare parts
Confirmed in-stock items generally need 3–7 business days for preparation after cleared payment. Express transit is typically estimated at 5–10 business days after collection; the selected service and destination determine the actual estimate.
Cooling systems and heavy equipment
Containers, tanks, racks and other oversized equipment travel by suitable freight services. Delivery point, site access and unloading requirements must be confirmed. If no freight option is available at checkout, contact us before payment.
Customs and delivery support
Import duty, import taxes and brokerage are excluded unless the order explicitly confirms DDP or another duty-inclusive service. Tracking or waybill details are provided after dispatch. Inspect your delivery and contact us promptly about damage or missing items; an unboxing video is helpful but is not required for support.
Read the full shipping policy | Contact Mining US
Dispatch and transit estimates are separate and may be affected by customs, carrier disruption or public holidays. Applicable consumer rights remain unaffected.
