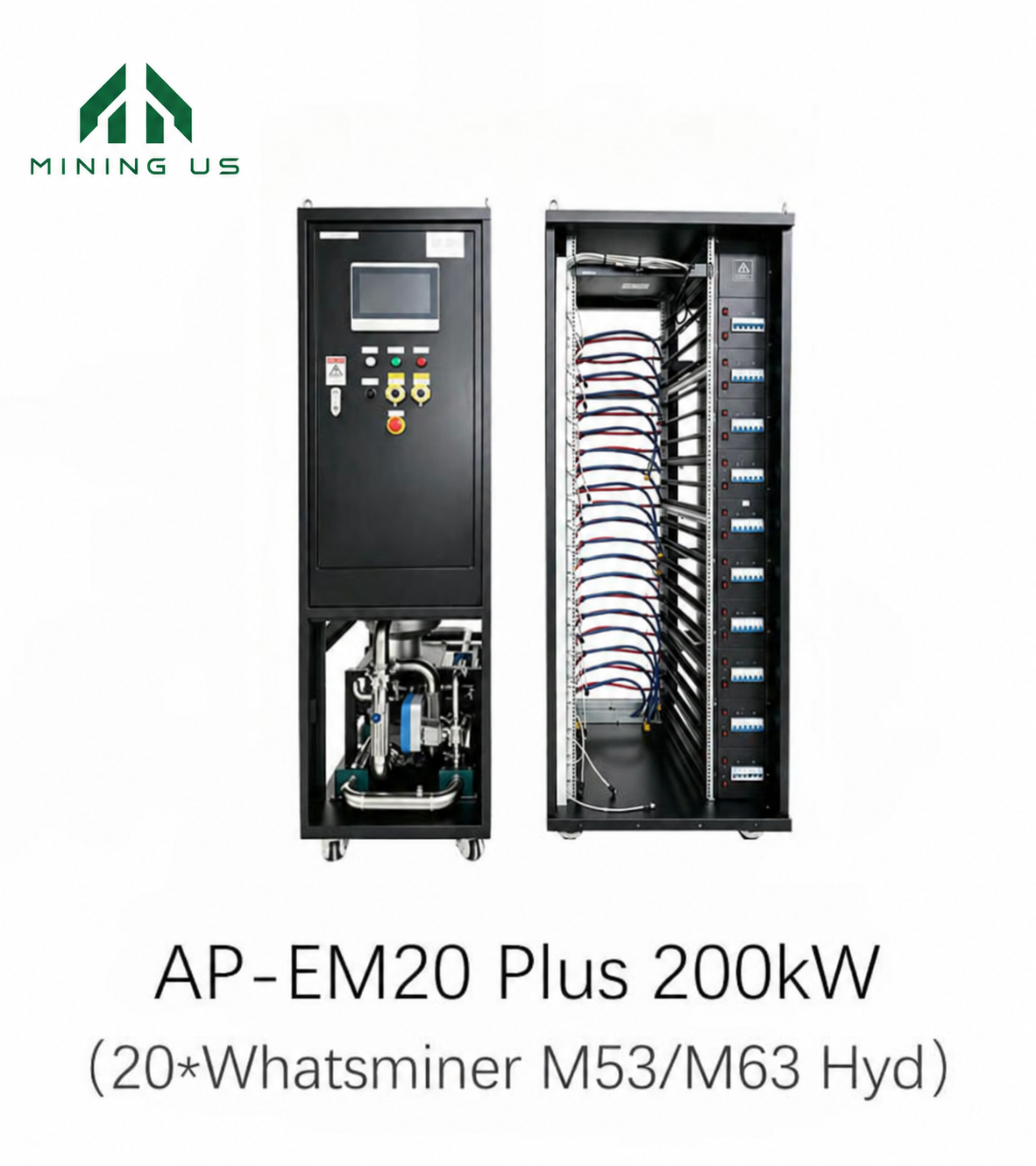

20-Slot 200kW Whatsminer 2U Modular Hydro Cooling Rack Plus
Scalable 200kW hydro cooling platform for 20 WhatsMiner 2U miners, with a separate CDU, customizable cooling equipment and support for multi-rack expansion.
Price on request. Contact MiningUS for a configuration and quote.
After your configuration and order are confirmed, use our Order Customization page to submit your requirements.
Scalable 200kW hydro cooling platform for 20 WhatsMiner units
Power Input 380V–415V AC 50/60Hz
Availability Typical lead time 15 days • DDP Sea Shipping Available
Compatible Models
Supplier model and full-load estimates captured September 13, 2026. These figures change with market and operating conditions and are not guaranteed returns. Confirm exact miner compatibility and total operating load.
Product Description
The Plus rack provides a modular platform for 20 WhatsMiner 2U hydro miners and up to 200kW of miner load. Its separate miner cabinet and cooling-control assembly allow CDU sizing and heat rejection to follow the site’s actual requirements.
Start with a single installation and plan the CDU, main piping and power distribution for additional racks. The adjustable architecture supports staged growth and flexible placement of outdoor cooling equipment.
Core Advantages

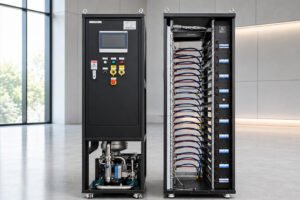

01. Split Modular Hydro System
Separate CDU and miner cabinets connect through quick couplings, allowing flexible layout and later expansion.

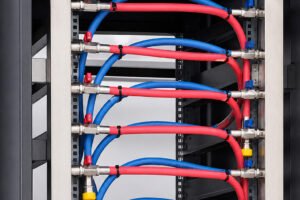

02. Color-Coded Water Piping
Red return and blue supply hoses make the coolant routes easy to identify during setup and maintenance.

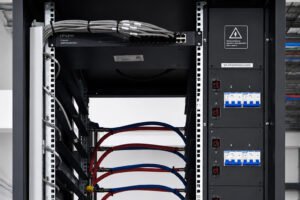

03. Integrated Switch & Breakers
A top-mounted network switch organizes cables, while individual breakers let one miner be serviced independently.
04. Stainless Steel Buffer Tank
The supplier describes a stainless-steel expansion tank that absorbs pressure variations, releases trapped air and supports automatic fluid replenishment.
05. Industrial PLC Touch Screen
The touch screen shows operating data. Language, parameters and control logic can be customized for site requirements.
06. Outdoor Heavy-Duty Dry Cooler
The matched outdoor cooler uses large fans and cooling pads for heat rejection. Its specified cooling rating is 200kW at 35°C; performance depends on operating conditions.

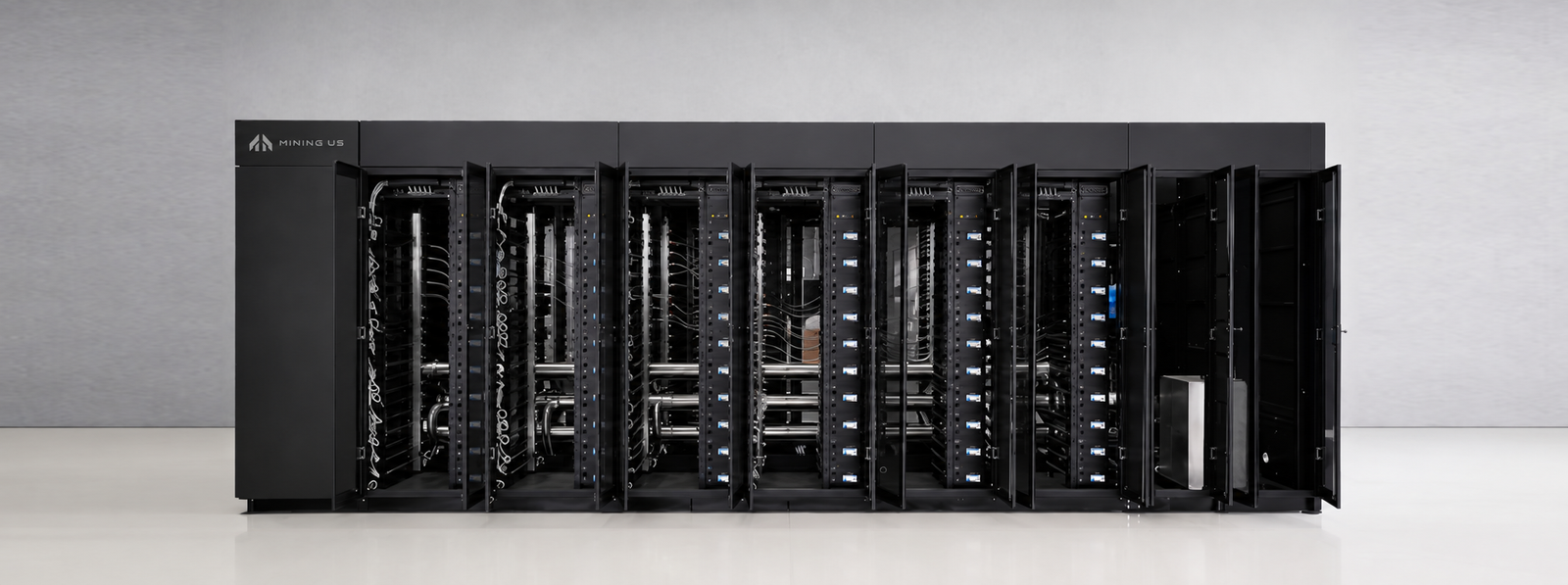

Modular 1-to-N Infrastructure Scalability
The supplier describes expansion from 200kW to 1,000kW using multiple racks, a customized high-flow pump system and centralized power control. Plan CDU capacity, main pipework, monitoring and outdoor cooling for the intended expansion.
Full Specifications
| Model | AP-EM20 PLUS |
|---|---|
| Installed capacity | 20 miners |
| Cooling rating | 200kW at 35°C |
| Supplier-listed certification | UL / CE |
| System composition | 1 dry cooler + 1 miner cabinet + CDU & PLC + external piping |
| Auxiliary system energy consumption | 10kW |
| Heat dissipation capacity (supplier-listed) | >210kW |
| Environmental suitability | −20°C to 45°C |
| Power input | Three-phase 380–415V, 50Hz |
| Cabinet format | 40U standard cabinet |
| Temperature control | AC fan variable-frequency control + EC fan stepwise regulation |
| Pump | 1 × 3kW |
| External miner cabinet dimensions | 800 × 950 × 2160mm |
| Internal miner cabinet dimensions | 750 × 900 × 2110mm |
| Miner cabinet weight | 250kg |
| Control cabinet dimensions | 600 × 1100 × 2160mm |
| Control cabinet weight | 250kg |
| Dry cooler dimensions | 2600 × 1850 × 2000mm |
| Dry cooler weight | 800kg |
The overview lists 50/60Hz, while the detailed table specifies 50Hz. The supplier lists both 200kW at 35°C and >210kW heat dissipation; confirm rating conditions and frequency in the quotation.
Certification Standards
The supplier states that its products meet leading international standards for safety, reliability, and performance.
China Classification Society
Marine & offshore compliance
UL Listed
Safety tested & certified
CSA Certified
North American compliance
CE Marking
European conformity
Complete Cooling Solutions
| Model | Cooling Capacity | Miner Slots | Dimensions (L × W × H) | Application |
|---|---|---|---|---|
| 12-Slot Integrated Whatsminer Hydro Cooling Rack | 120kW | 12 Slots | 850 × 1000 × 2130mm | Compact Home Deployments |
| 20-Slot Whatsminer Hydro Cooling Rack | 200kW | 20 Slots | 800 × 950 × 2160mm | Customizable Modular Layouts |
| 160-Slot Whatsminer Hydro Cooling Container | 1.6MW | 160 Slots | 6058 × 2438 × 2896mm | Industrial Mining Projects |
| 240-Slot Whatsminer Hydro Cooling Container | 2.4MW | 240 Slots | 13716 × 2438 × 2896mm | Mega-Scale Industrial Facilities |
Real Results from Real Miners
Deployment photographs and results reported by the supplier.

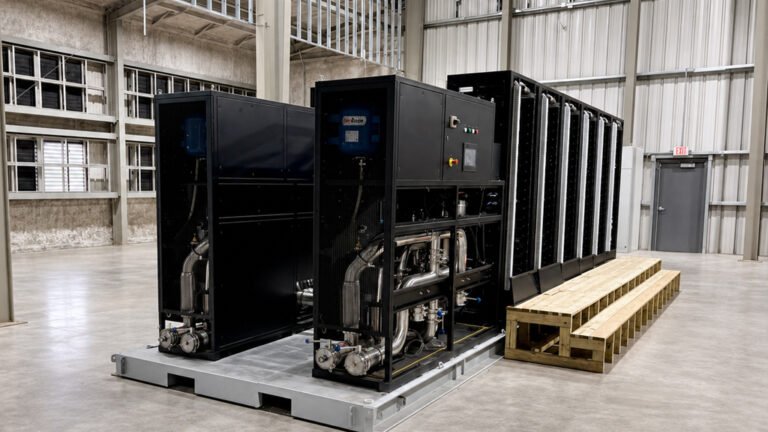

Denver, United States
1 × 800kW CDU to 4 Racks
Custom-sized CDUs support modular expansion.
+40% Space Optimization · −25% Capex Saved · $150K Annual Savings

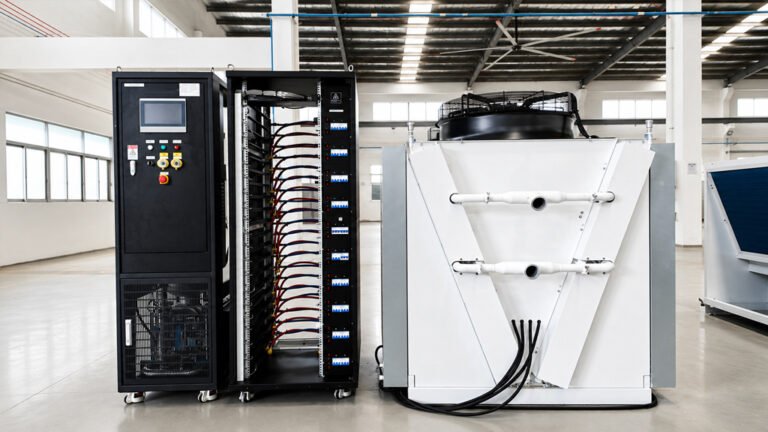

Kazakhstan
1 × 200kW CDU to 1 Rack
Modular integration for a smaller indoor installation.
+100% Clean Energy Uptime · −30% On-site Civil Costs · 99.9% System Reliability
The supplier attributes reduced equipment costs and expansion from one to four racks to its Denver installation. These are supplier-reported outcomes, not guaranteed results.
Supplier-reported global delivery: 1.2+ GW across 50+ countries and regions.
20-Slot Whatsminer 2U Modular Hydro Cooling Rack Plus FAQs
What is the main advantage of this modular rack compared with an integrated 200kW cooling rack?
A shared CDU can be sized for several racks, reducing duplicate cooling-control equipment and supporting future expansion.
Can one CDU support multiple 200kW cooling racks?
Yes. The supplier gives examples of a 400kW CDU serving two 200kW racks, or an 800kW CDU serving four. Size the complete loop to the project.
Can I start with one rack and expand the system later?
Yes. Start with one rack and reserve CDU, piping, electrical and outdoor cooling capacity for later stages.
Can one rack support 20 high-power or overclocked WhatsMiner Hydro miners?
Up to 20 compatible 2U Hydro miners can be installed if their combined operating load stays within 200kW and connections match the selected equipment.
How does a shared CDU maintain stable cooling across multiple racks?
The CDU is engineered for the connected rack count and load. Monitoring of coolant flow, pressure and temperature supports balanced circulation.
Can individual miners be powered down for maintenance without stopping the other miners?
Individual switches and circuit breakers allow a miner to be isolated for maintenance while unaffected positions continue operating.
Does a 200kW rack mean the site only needs 200kW of electrical capacity?
No. Allow for the supplier-listed 10kW auxiliary cooling load in addition to miner consumption, plus the electrical margin required by the final design.
When is this modular Plus architecture the better choice?
It suits multi-rack projects and sites expecting expansion, where centralized cooling can reduce repeated equipment and improve space use.
