2.6MW 320-Slot Whatsminer Immersion Cooling Container (40ft)
$188,000.00
✓ 1 Year Warranty
BC40 X immersion cooling container with up to 2.6MW cooling capacity for up to 320 Whatsminer M56/M66 series miners. A 40ft HQ container integrates 16 tanks, smart PDUs, monitoring and external dry coolers.
Complete your order and payment first. Immediately after payment, visit our Order Customization page and submit the form with your customization requirements.
Product Description

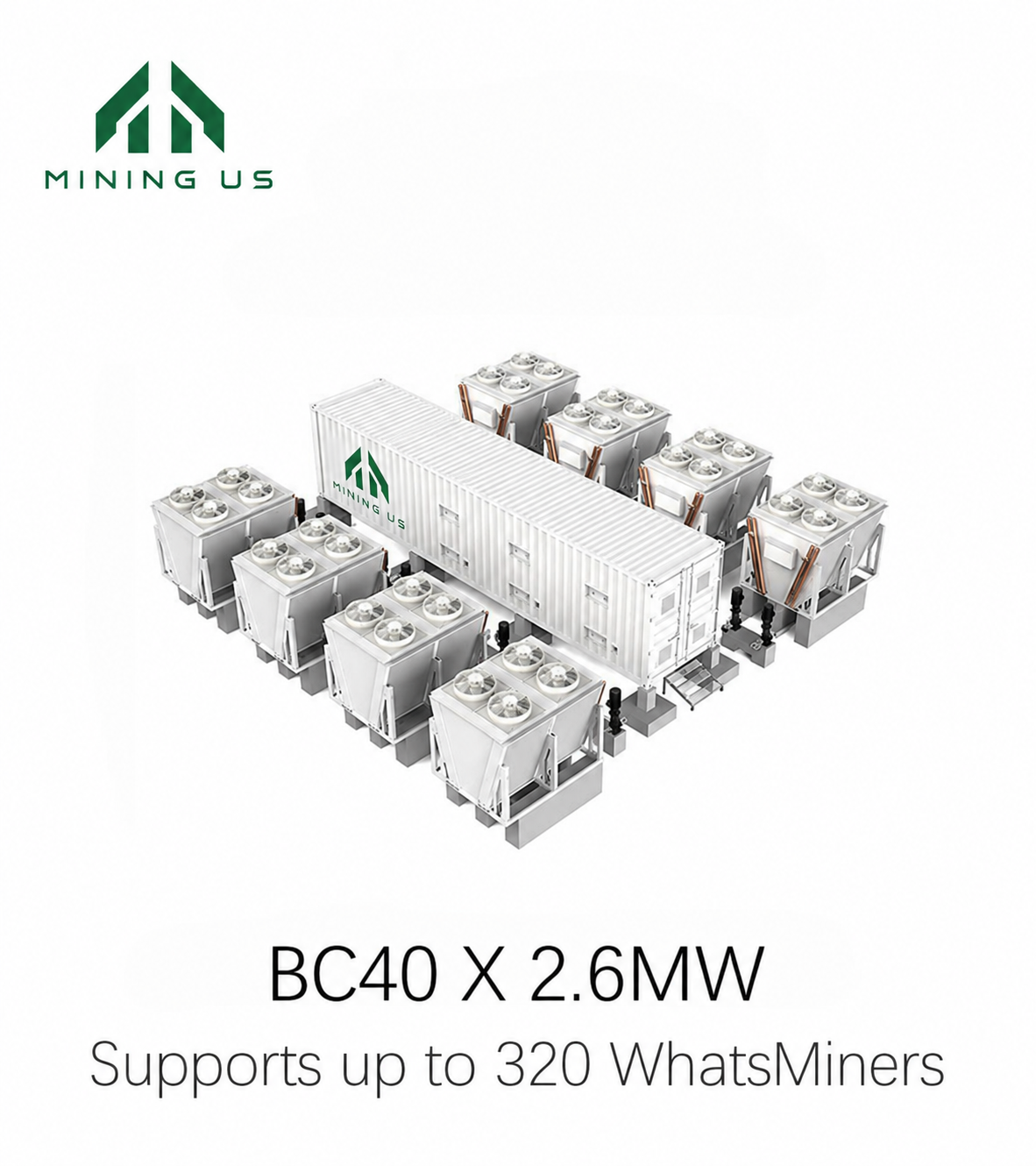

BC40 X Immersion Cooling Container for Crypto Mining
BC40 X is a 40ft immersion cooling solution for large mining deployments, with cooling capacity up to 2.6MW and support for up to 320 Whatsminer M56/M66 series units. Its oil-immersion design manages heat in dense SHA-256 mining installations.
Design Advantages

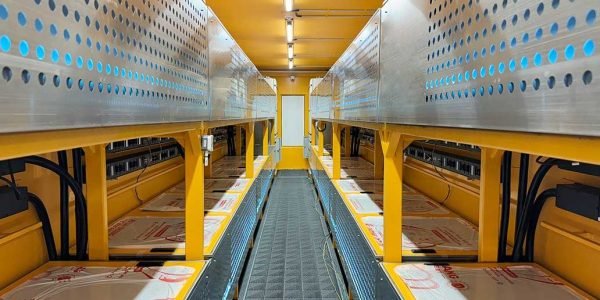

Flexible Deployment for Large-Scale Mining
A modular 40ft layout supports high-density deployments with up to 320 miners across 16 tanks.

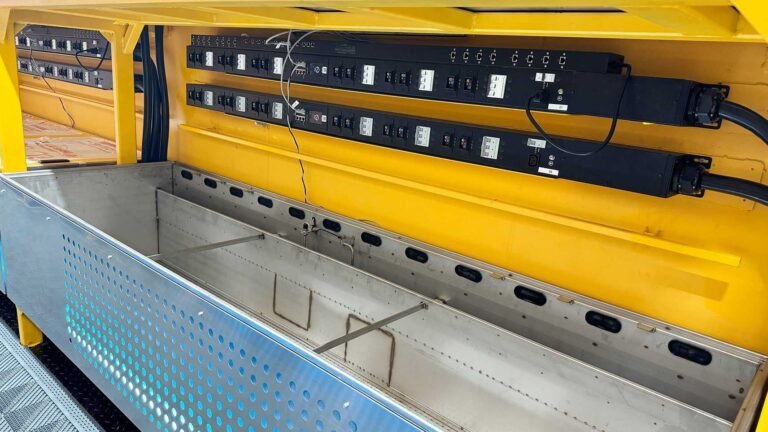

Low O&M Costs with Independent Tank Control
Single-loop piping allows each tank to be shut down independently for maintenance.

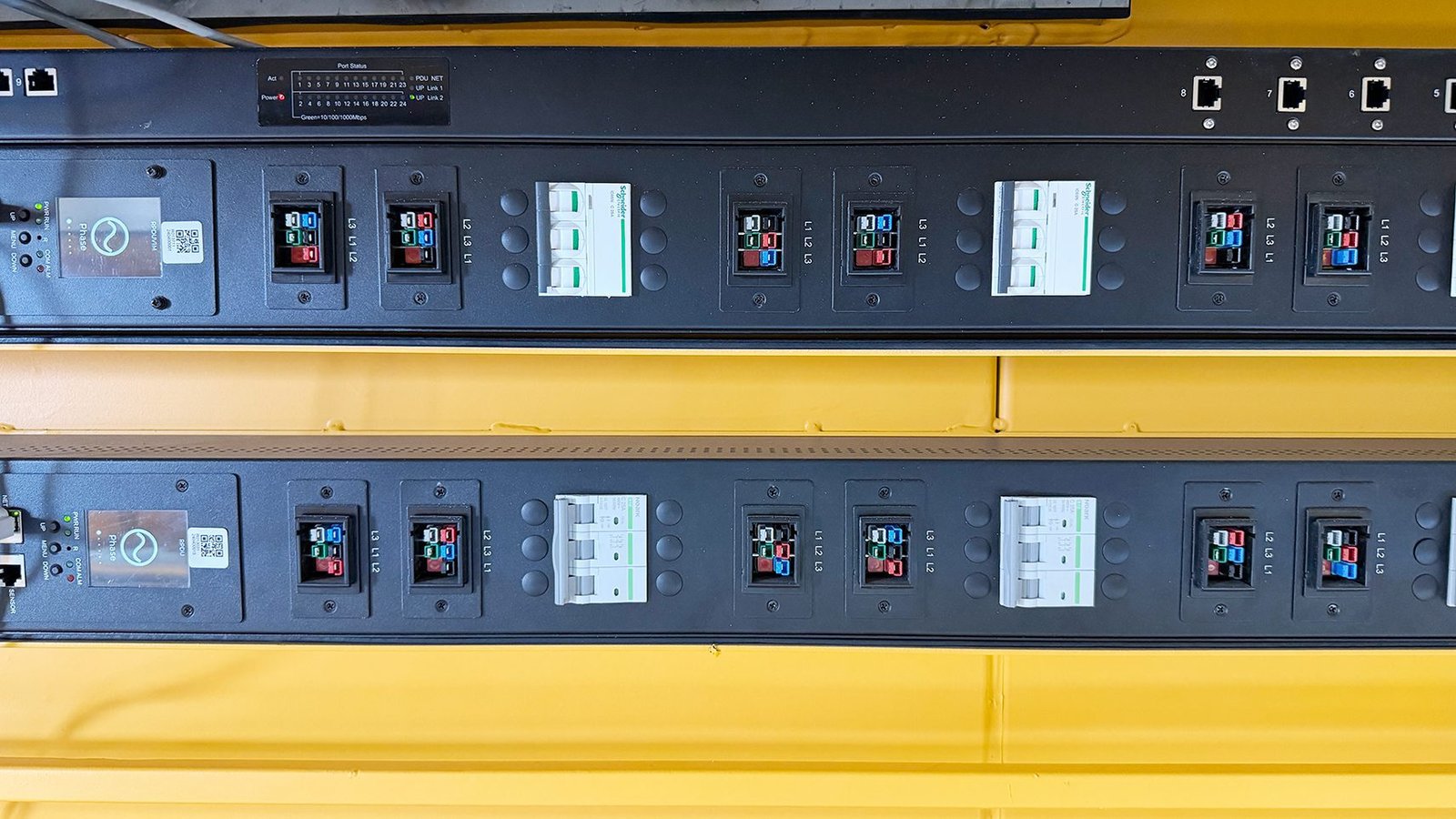

Smart Integrated Management System
Integrated cooling controls, power monitoring and security systems provide centralized monitoring.

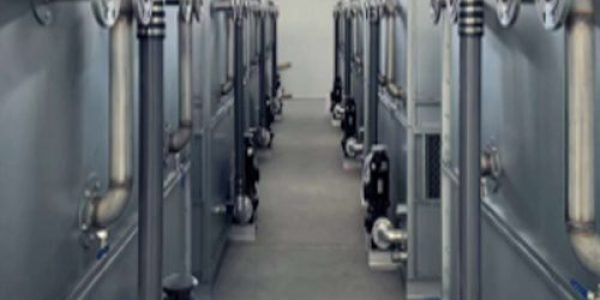

Redundant Cooling for Extreme Conditions
The supplier describes compatibility with dry coolers or closed water towers and redundant cooling capacity. Confirm the selected equipment and ambient-temperature rating.
Specification note: The source includes a BC40 Pro paragraph stating 200 miners. The BC40 X title and specification table state 320 miners, which is the capacity used here. The illustrated electrical panel says 350–480V, while the specification table states 380–480V. Confirm compatibility and the electrical configuration before ordering.
Real Shot

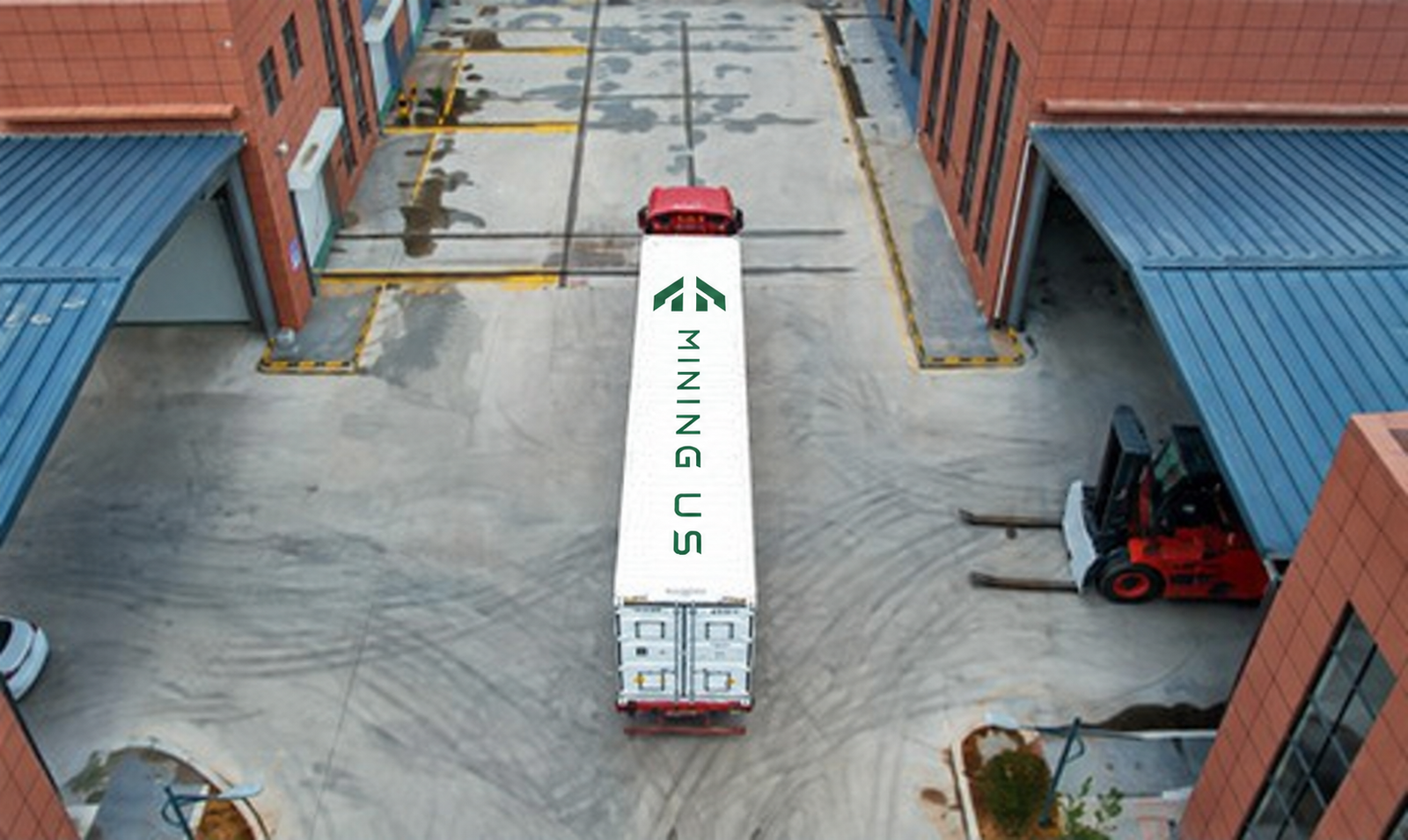

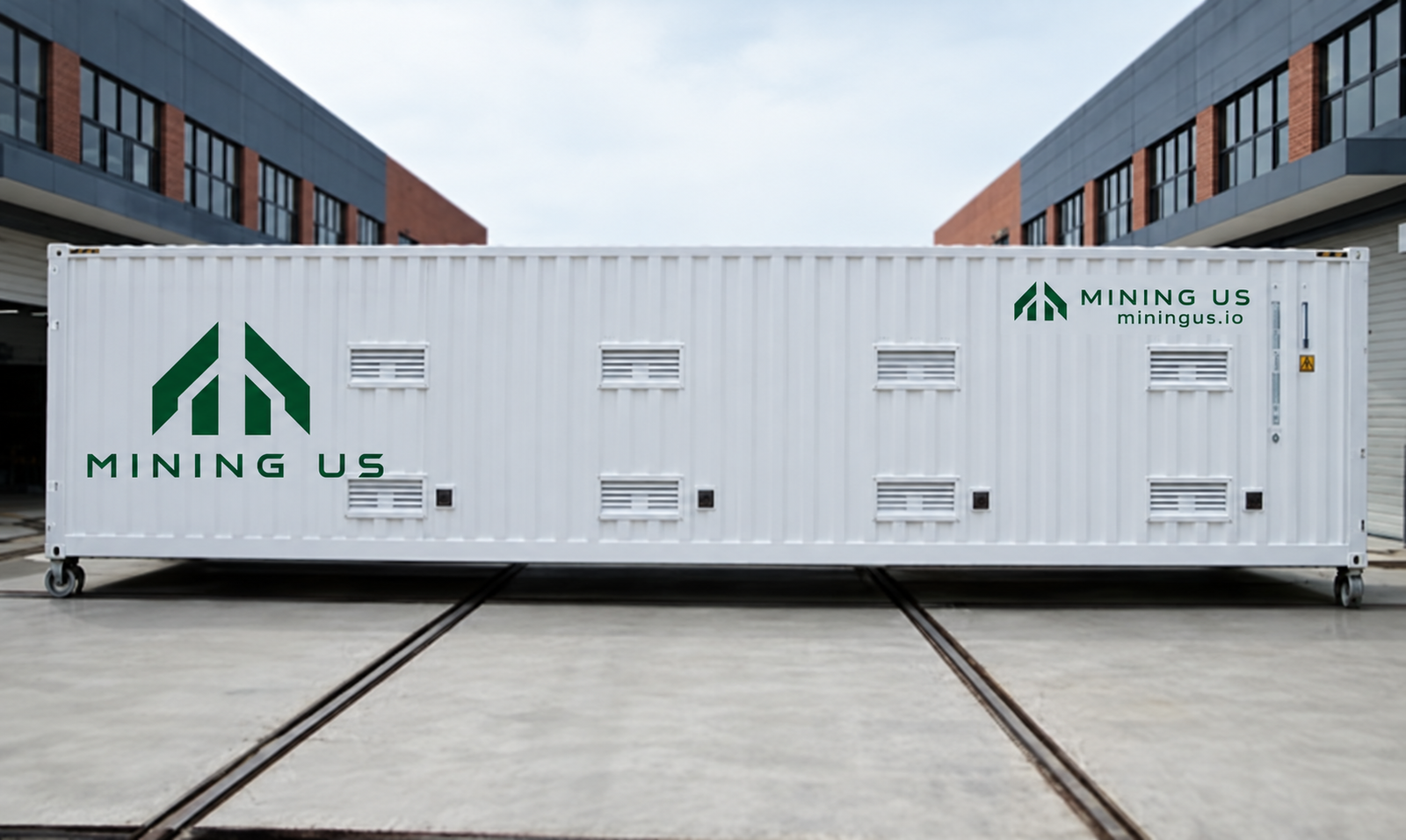

Supplier photographs of the BC40 X container and transport.

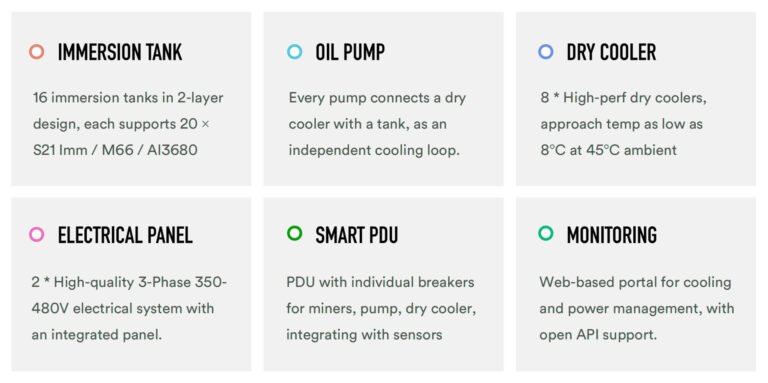

Specifications
| Cooling Capacity | Up to 2.6MW |
|---|---|
| Miner Capacity | 320*M66/M66S 320*Auradine Al3680 |
| Qty of Tanks | 16*M20 |
| Coolant Volume | 13,000L |
| External Cooler | 8 * Dry Cooler Unit |
| Circulation Mode | Single-Loop |
| Inlet / Outlet Temperature | 48°C / 58°C, at 40°C ambient temperature |
| Designed Approaching Temp | 8°C |
| Ambient Temperature | -20 ~ 50 °C |
| Dimension | 40ft HQ, 12,192 × 2,438 × 2,896 mm |
| Total Weight | Shipping weight 14T, Operating weight 23T |
| Max Power Load | 2833 kW |
| Non-mining Power Load | 89 - 159kW |
| Power Supply | Three-phase 380 - 480V 50/60Hz |
| Smart PDU | • 16 × Smart PDU • Single-phase 220 - 277V 50/60Hz or 3-phase 380 - 480V 50/60Hz • Individual circuit breaker for miners, pump |
| Monitoring and Control | • Tank-level mini display for instant status • Web based platform for container-level monitoring and control • SNMP, Modbus and RESTful API for third-party integration • Remote cameras for real-time and cached video |
| Extra Components | Lighting System, Ventilation and Filtration, Ambient Temperature and Humidity Sensors, Smoke Sensors, Remote Cameras, etc. |
| Container Certification | China Classification Society Certification |
Certification information is stated by the supplier.
Transportation
Liquid cooling equipment is generally shipped by sea. Freight charges depend on the destination port and receiving location. Confirm delivery details and shipping costs before ordering.
Want to Explore Similar Mining Options?
Explore All Asics >>| Models | Coins | Meilleur Price | Hashrate | Power | Electricity | Algorithm | ROI | Profit |
|---|---|---|---|---|---|---|---|---|
| Whatsminer M66S | BCH / BSV / BTC | $2,099.00 - $2,099.00 | 298Th/s | 5513W | 18.50J/TH | SHA-256 | 15 Mon | $ 4.75 /day |
| Whatsminer M66 | BCH / BSV / BTC | $1,700.00 - $1,700.00 | 280Th/s | 5572W | 19.90J/TH | SHA-256 | 14 Mon | $ 3.99 /day |
| Antminer L9 | DOGE / LTC / BEL | $2,575.00 - $2,900.00 | 16Gh/s | 3360W | 210.00J/GH | Scrypt | 27 Mon | $ 3.18 /day |
| Whatsminer M60S | BCH / BSV / BTC | $1,468.00 - $1,468.00 | 186Th/s | 3441W | 18.50J/TH | SHA-256 | 17 Mon | $ 2.96 /day |
| Whatsminer M56 | BCH / BSV / BTC | $599.00 - $619.00 | 194Th/s | 5550W | 28.61J/TH | SHA-256 | 27 Mon | $ 0.74 /day |
Source-page comparison figures are reference estimates, not live or guaranteed earnings. These are related mining options, not a compatibility list for this container.
Customer FAQs
How to choose the right liquid cooling equipment?
Match miner compatibility, cooling demand, available space and planned expansion. Confirm the final container configuration for your site.
Is liquid cooling noisy?
Immersion cooling reduces the need for miner fans, but the external coolers and pumps still produce noise, particularly under high load.
Do I need a specific coolant?
Use an approved immersion coolant compatible with the miners and tank materials. Confirm the required coolant specification before filling.
How is installation supported?
Correct electrical and piping connections and coolant filling are required. Supplier guidance and remote installation support are available; on-site support for larger projects is subject to agreement.
Does it need regular maintenance?
Inspect and clean cooling equipment, pumps and piping regularly. Monitor coolant condition and follow the recommended replacement schedule.
Can the equipment be used for heating?
Some configurations support heat recovery for water or space heating. Confirm the appropriate heat-recovery equipment for your project.
Are bulk discounts available?
Contact MiningUS for current bulk pricing and follow our Telegram group for offers.
How do I verify MiningUS support?
Use the MiningUS authentication page and our official Telegram or WhatsApp group to confirm contact details.
