1MW 200-Slot Immersion Cooling Container BC40 Elite (40ft)
$173,000.00
✓ 1 Year Warranty
BC40 Elite is a 40ft immersion cooling container with 1MW cooling capacity and space for up to 200 compatible miners, depending on the model. The package includes the BC40 container, a 1000kW dry cooler and 6000L coolant.
Complete your order and payment first. Immediately after payment, visit our Order Customization page and submit the form with your customization requirements.
Product Description

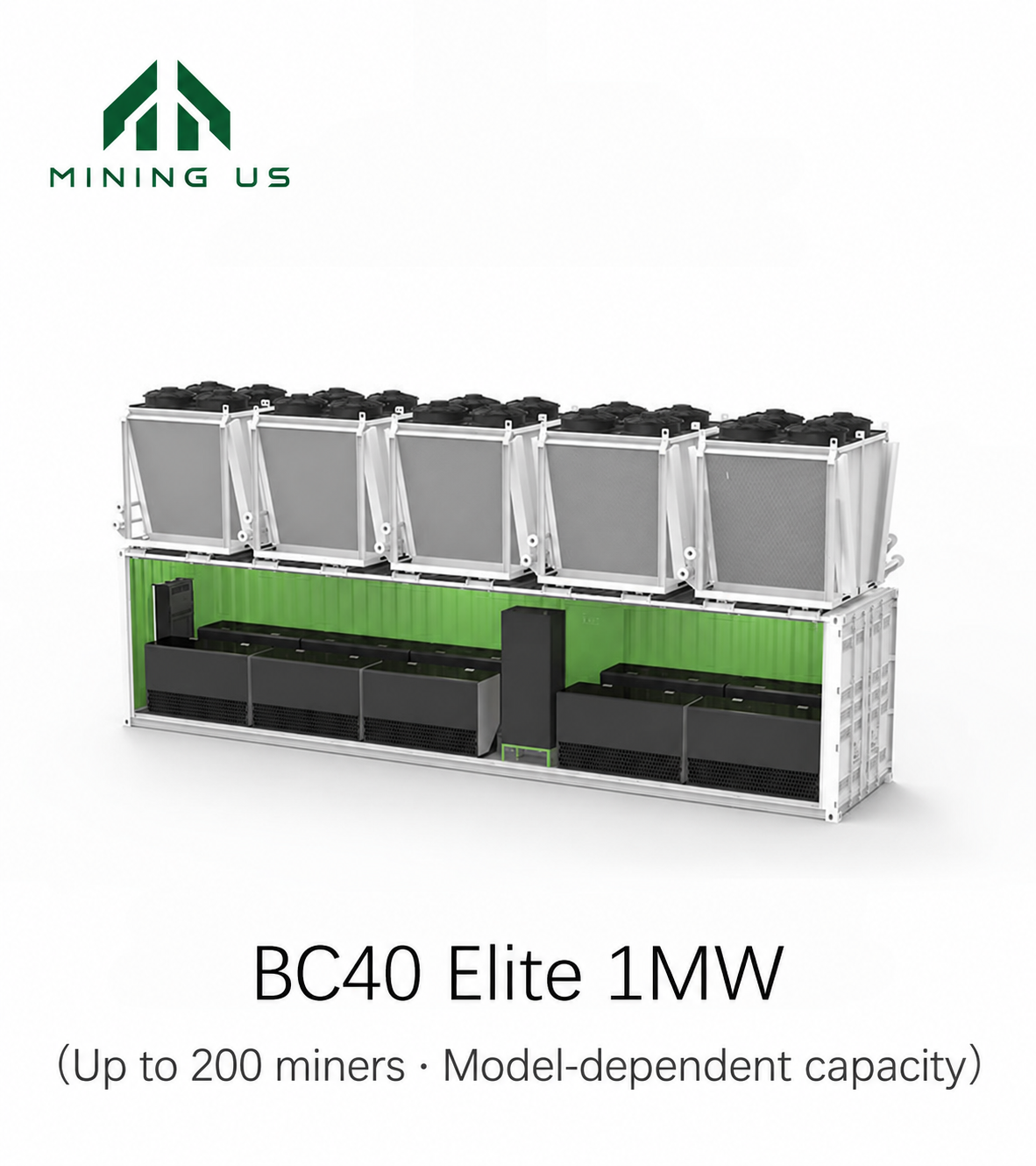

Immersion Mining BC40 Elite Plug & Play Solution
The BC40 Elite integrates ten B100 immersion tanks and roof-mounted dry coolers into a 40ft container, providing 1MW of cooling capacity for large-scale mining. Capacity depends on the installed miner model, with space for up to 200 compatible miners.
The modular design simplifies transport and deployment. Smart PDUs support different power-plug requirements, while remote monitoring and API integration provide access to operating data.
Miner Compatibility
The source lists capacity for 200 S21 miners, 180 T21/M66S miners or 160 S21 Imm/S21 XP miners. Confirm the final model configuration before ordering.
Modularity & Flexibility
Roof-mounted dry coolers save ground space. The integrated container design supports mobility and faster installation.

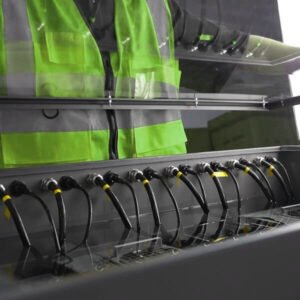

Smart PDU
Single-phase and three-phase PDU configurations can be switched without hardware changes, according to the supplier.

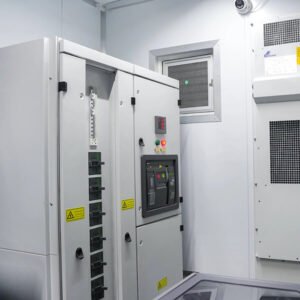

Electrical System
The source describes UL489-compliant electrical components with Noark breakers, together with smart metering and remote monitoring.

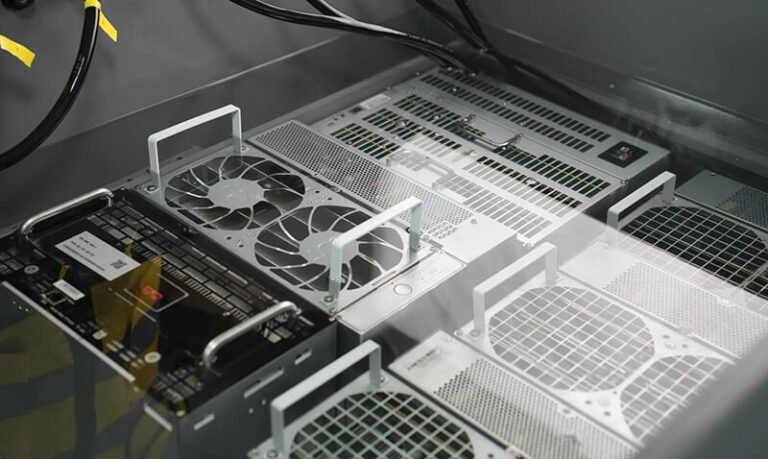

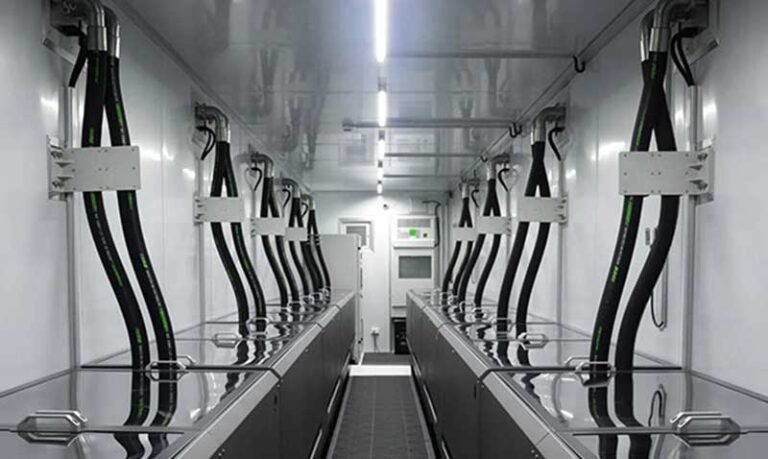

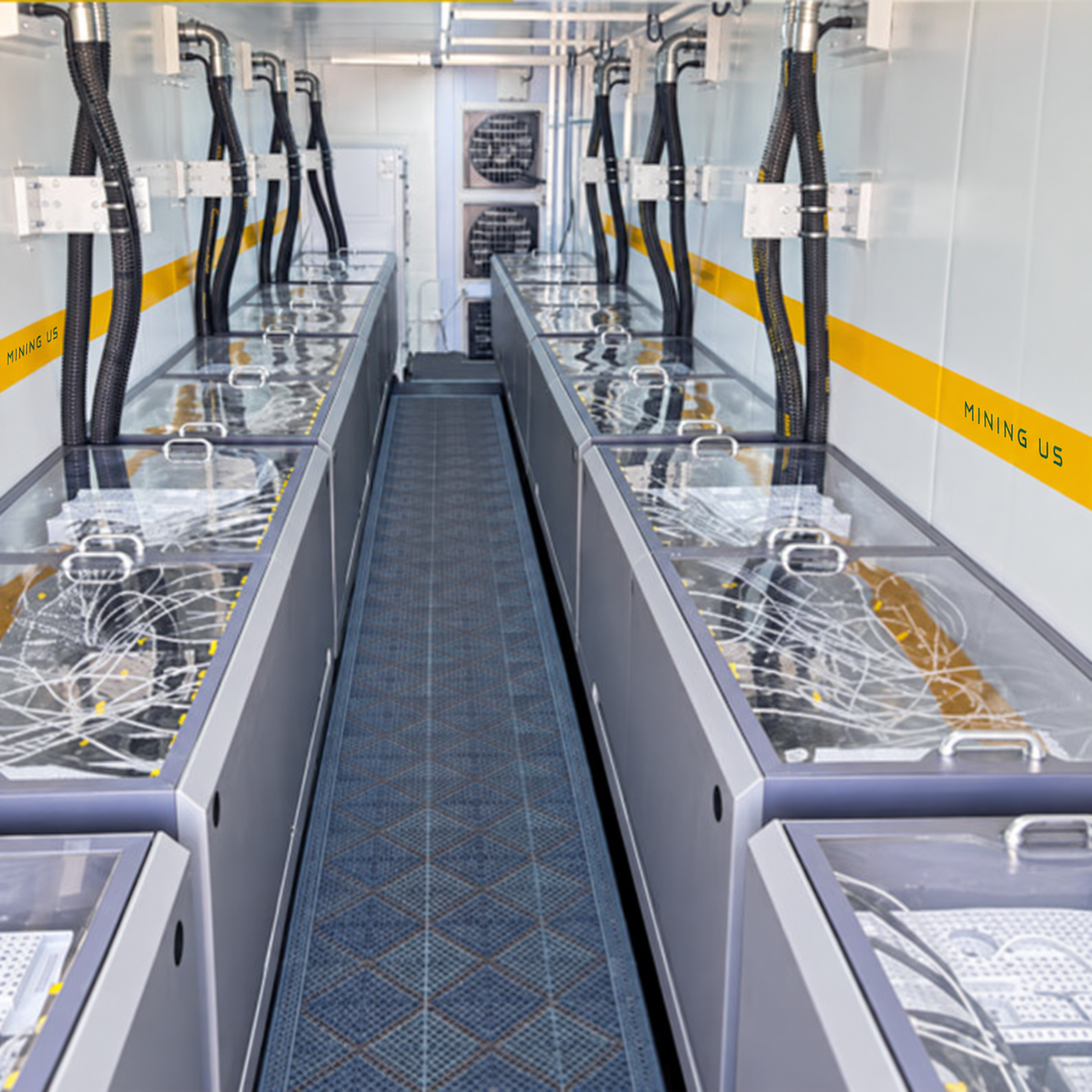

Product Features & Interior
Package Specification
BC40 Container+1000kW Drycooler+6000L Coolant
The listed package includes 6000L coolant. The technical table lists a total system volume of 7000L. Confirm the final fill requirement and whether additional coolant is needed for your installation.
Specifications
| Dimensions (L × W × H) | 12192 × 2438 × 2896 mm |
|---|---|
| Miner Capacity | 200*S21; 180*T21/M66S; 160*S21 Imm/S21 XP |
| Numbers of Tank | 10 * B100 Tank (New design) |
| Circulation Mode | Single Loop / Dual Loop |
| Coolant Volume | TANK：530L*10; Dry Cooler：170L*10; Container：7000L |
| Ambient Temperature | -25°C~48°C |
| Input Voltage | Three-phase 350-480V 50/60Hz |
| Max Power Load | 1,437kW |
| Output Voltage | Single-phase 200-277V 50/60Hz; Three-phase 350-480V 50/60Hz |
| Safety Certification | CE/UL |
| Non-mining Power Load | 58-93kW |
| Power Distribution Cabinets | 2,000A*1 |
| PDU | 10*Smart PDU |
| Smart Meter | Included |
| Cooling Capacity | 1MW |
| Cooling Type | Dry Cooler |
| Inlet/Outlet Temperature | 48°C/56°C |
| Design Reference Temperature | 35°C |
| Service Lifecycle | 10 years |
Miner capacity follows the supplier’s detailed table; its promotional image gives a different M66S count. Confirm model-specific capacity and final commissioning requirements before ordering.
Shipping & Delivery
Large cooling equipment is generally shipped by sea freight. Contact MiningUS with your destination and site details to confirm freight costs, port arrangements, unloading and deployment requirements.
Want to Explore Similar Mining Options?
Explore All Asics >>| Models | Coins | Meilleur Price | Hashrate | Power | Electricity | Algorithm | ROI | Profit |
|---|---|---|---|---|---|---|---|---|
| Antminer S21 XP IMM | BCH · BSV · BTC | $4,020.00 - $4,020.00 | 300Th/s | 4050W | 13.50J/TH | SHA-256 | 20 Mon | $ 6.58 /day |
| Antminer S21 XP | BCH · BSV · BTC | $3,480.00 | 270Th/s | 3650W | 13.52J/TH | SHA-256 | 20 Mon | $ 5.92 /day |
| Antminer S21 Pro+ | BCH · BTC | $1,760.00 - $2,045.00 | 234Th | 3510W | 15.00J/TH | SHA-256 | 12 Mon | $ 4.71 /day |
| Antminer S21 Imm. | BCH · BSV · BTC | $1,625.00 - $1,625.00 | 215Th/s | 3440W | 16.00J/TH | SHA-256 | 13 Mon | $ 4.07 /day |
| Antminer T21 | BCH · BSV · BTC | $2,350.00 | 190Th/s | 3610W | 19.00J/TH | SHA-256 | 27 Mon | $ 2.91 /day |
Swipe horizontally to view all specifications →
Illustrative comparison figures; prices, daily profit and payback are reference estimates, not live quotes or guaranteed returns. Results vary with electricity rates, network conditions and coin prices. Check the shop for current pricing.
Customer FAQs
How do I choose the right cooling system?
Check miner compatibility, total heat load, site power, available space and future expansion. BC40 Elite has 1MW cooling capacity with model-dependent miner counts.
What is included in this package?
The listed package is BC40 Container+1000kW Drycooler+6000L Coolant. Confirm installation accessories and the final coolant fill before ordering.
Does it need special coolant?
Use compatible dielectric immersion coolant approved for the installed miners and cooling equipment.
Is immersion cooling noisy?
Immersion reduces reliance on miner fans, but pumps and external dry coolers still produce operating noise.
How quickly can it be deployed?
The supplier describes a three-day deployment design. Actual installation time depends on site readiness, power connections and commissioning.
Does it require regular maintenance?
Inspect coolant condition and level, connections, circulation pumps, dry coolers and monitoring alarms according to the equipment instructions.
Can the heat be reused?
Heat recovery requires a suitable heat exchanger and a compatible site heating demand. Discuss the design with MiningUS.
What warranty is listed?
The source lists a one-year warranty. Contact MiningUS to confirm coverage and service terms.
Can I request bulk pricing or customization?
Contact MiningUS to discuss quantity pricing, electrical configuration and delivery requirements.
How can I verify MiningUS contact details?
Use our authentication page, Telegram or WhatsApp.
| Specification | BC40 Container+1000kW Drycooler+6000L Coolant |
|---|
Delivery costs shown before payment
Enter your complete delivery address at checkout to see available shipping services and charges. Shipping is separate from the product price unless expressly included. A missing rate does not mean free delivery.
Miners and spare parts
Confirmed in-stock items generally need 3–7 business days for preparation after cleared payment. Express transit is typically estimated at 5–10 business days after collection; the selected service and destination determine the actual estimate.
Cooling systems and heavy equipment
Containers, tanks, racks and other oversized equipment travel by suitable freight services. Delivery point, site access and unloading requirements must be confirmed. If no freight option is available at checkout, contact us before payment.
Customs and delivery support
Import duty, import taxes and brokerage are excluded unless the order explicitly confirms DDP or another duty-inclusive service. Tracking or waybill details are provided after dispatch. Inspect your delivery and contact us promptly about damage or missing items; an unboxing video is helpful but is not required for support.
