M6 6-Slot Immersion Cooling Suite for WhatsMiner M56 / M66
Price range: $380.00 through $5,548.00
✓ Manufacturer Warranty
M6 immersion cooling suite for up to six WhatsMiner M56/M66 series miners. Choose an individual tank, dry cooler or PDU, or a system bundle with optional coolant and power distribution.
Need Customization?
Complete your order and payment first. Immediately after payment, visit our Order Customization page and submit the form with your customization requirements.

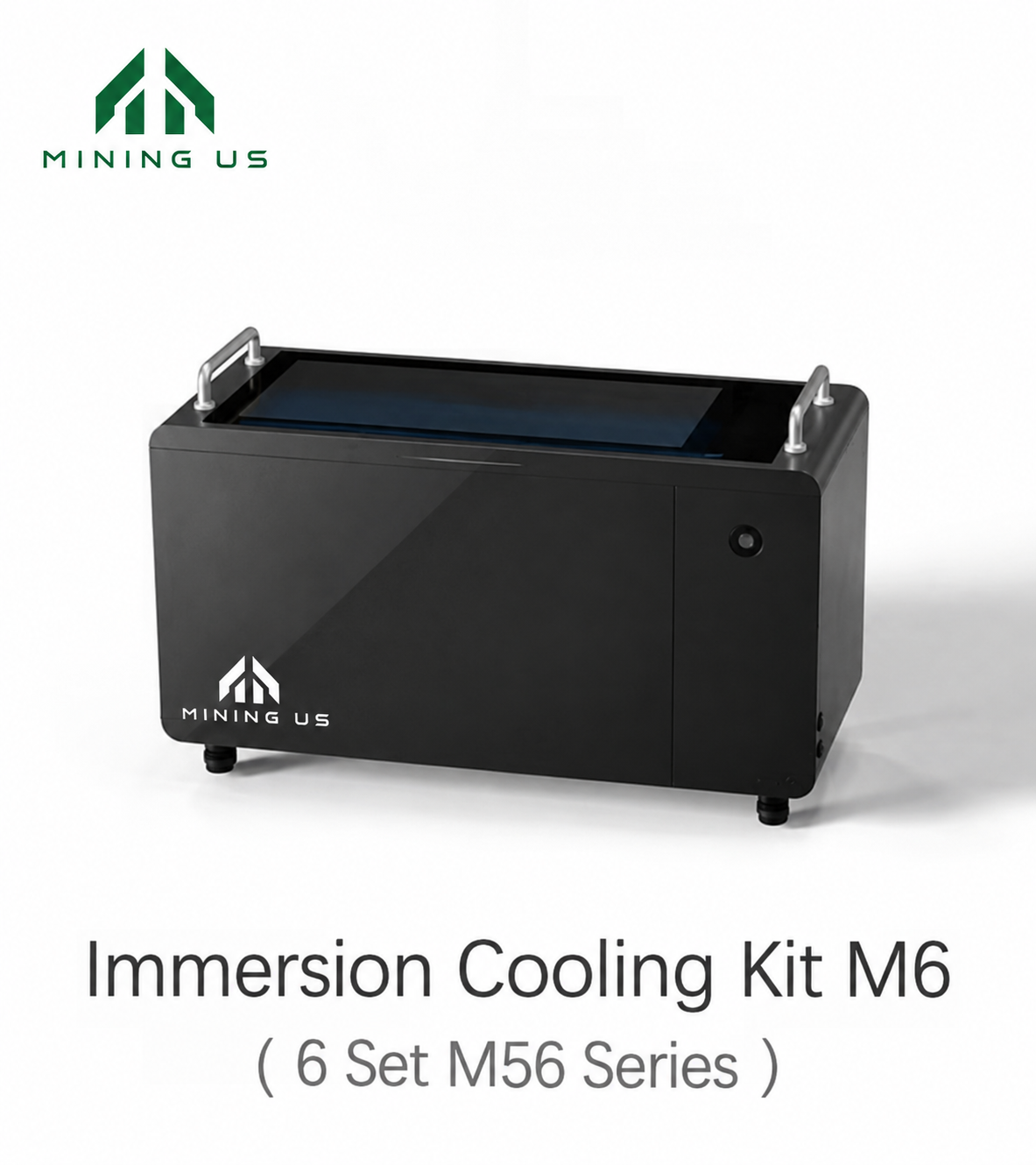

M6 Immersion Cooling Suite
Product Description
The M6 is a native immersion cooling suite for six WhatsMiner M56/M66 series miners. Its compact tank connects to an external dry cooler to manage heat in a professional Bitcoin mining installation.
Choose the components you need or a bundled system with power distribution and coolant. The selected package determines what is supplied, making it easier to match the cooling system to your existing equipment and site.
Product Details
Core Advantages
Native WhatsMiner Compatibility
Designed around M56/M66 immersion miners.
Six-Miner Layout
A compact tank for a focused mining installation.
External Heat Rejection
Pair the tank with the M6 dry cooler to move heat away from the installation.
Flexible Packages
Individual components and complete system bundles are available.
Temperature-Based Fan Control
The documented dry cooler automatically adjusts fan speed with temperature.
Installation Planning
Confirm electrical supply, connections and coolant requirements for the selected equipment.
M6 Specifications
| Model | M6 |
|---|---|
| Miner capacity | 6 × WhatsMiner M56 / M66 |
| Tank dimensions (L × W × H) | 1185 × 530 × 760 mm |
| Inner dimensions | 912 × 404 × 335 mm |
| Net weight | 110 kg |
| Coolant volume | 200 L |
| Tank input | Single-phase 200–240 V |
| Tank power | 850 W (220 V, 50 Hz test) |
| Display | 1.32-inch OLED |
| Tank noise | 45 dB(A) at 10 m |
| Flow | 90 L/min |
| Fluid temperature difference | 12°C |
| Dry cooler dimensions | 1500 × 1200 × 900 mm |
| Dry cooler power | 10–1800 W (220 V, 50 Hz test) |
| Dry cooler net weight | 200 kg |
| Dry cooler fans | 2 EC fans |
| Dry cooler noise | 68 dB(A) at 10 m |
M6 reference specifications; confirm the supplied revision and electrical configuration with MiningUS before installation. The listed dry-cooler option is rated 50 kW at 30°C. Specifications vary with operating conditions and selected components.
Package & Shipping Information
Choose your Specification before ordering. The complete bundle includes the named tank, dry cooler, coolant and PDU; individual component options contain only the selected item.
Contact MiningUS to confirm delivery arrangements, shipping charges and site requirements.
Frequently Asked Questions
Which miners does the M6 support?
The M6 is designed for six WhatsMiner M56/M66 series immersion miners. Confirm your exact model and site requirements before ordering.
What does each package include?
The selected Specification determines the package: tank only, dry cooler only, PDU only, tank with cooler, tank/cooler/PDU, or tank/cooler/coolant/PDU. Mining machines are not listed as part of these cooling packages.
What is the dry cooler’s listed cooling rating?
The M6 dry-cooler option is listed at 50 kW at 30°C. Cooling capacity differs from the electrical power consumed by pumps and fans, and depends on operating conditions.
What warranty is available?
The product is listed with Manufacturer Warranty. Contact MiningUS for the applicable coverage and terms for your selected components.
How do I request customization?
Complete your order and payment first, then submit your requirements through our Order Customization page.
How should I plan delivery and installation?
Contact MiningUS to confirm freight, power supply, coolant requirements and the installation layout for your selected package.
